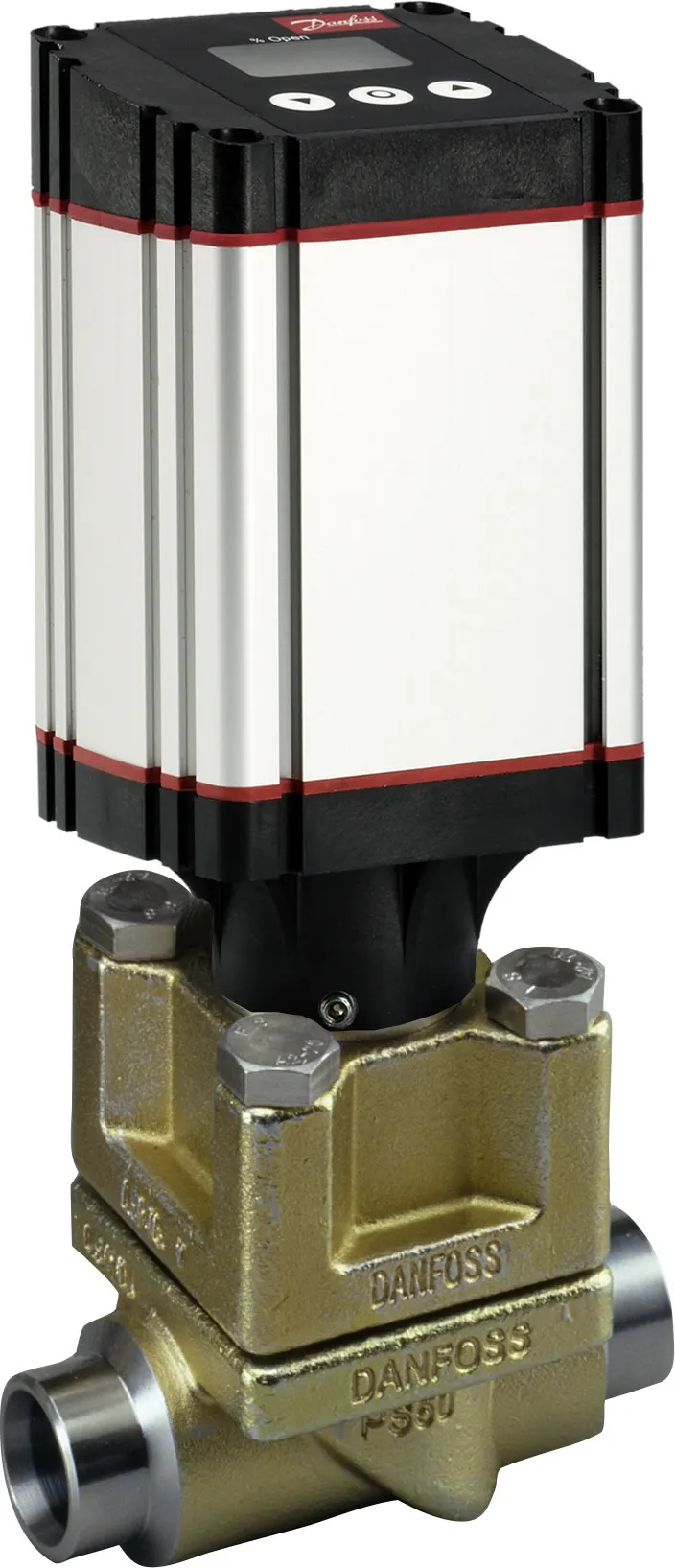

027H1020
Part Number: 027H1020
Product Information
Extended Description
027H1020 Danfoss: Outlet connection size [mm]: 25.0, Inlet connection size [mm]: 25.00, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Kv value [m=C2=B3/h]: 0.600
Gross weight
1.944 Kilogram
Net weight
1.793 Kilogram
Volume
3.335 Liter
EAN
5702428237406
Actuator system
ICAD motor, magnet coupling
Approval
EAC,LLC CDC EURO-TYSK,UL
Body material
Steel
Brand
ICV Flexline
Connection material
Steel
Connection standard
EN 10220
Contain batteries
No
Cv value [gal/min]
0.7 gal/min
Direction
Straightway
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [in]
1 in
Inlet connection size [mm]
25 mm
Inlet connection type
Butt weld
Kv value [m=C2=B3/h]
0.6 m=C2=B3/h
Lubricants compatibility
Oilfree applications
Manual operation option
Via ICAD setting,Via Multifunction tool
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
MaxOPD [bar]
52 bar
MaxOPD [psig]
702 psig
Oil free refrigerants
R1234ze(E),R134a
Open/close time [s]
3 s
Outlet connection size [in]
1 in
Outlet connection size [mm]
25 mm
Outlet connection type
Butt weld
Packing format
Single pack
Parts Program name
ICM
PED category
Art. 3, par. 3
Product accessories
ICAD accessories,ICM / ICS / ICLX accessories
Product description
Motor operated valve
Product group
Press. and temp. regul. valves
Product Name Description
Motor operated valve
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R1234ze(E),R507A,R1234yf,R125,R227ea,R236fa,R245fa,R32,R407H,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A
Serviceable
ICM / ICS / ICLX spare parts
Surface coating
Zn (TLP)
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Top cover
Actuator
Type
ICM 20-A
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
Valve operation
Motor operated
Valve version
Standard version
027H1180
Function module, ICM 20-A, Steel
027H1190
Spare part, ICM 20-B / 20-C; ICM 20-A / 20-A33, Service kit ICM 20
