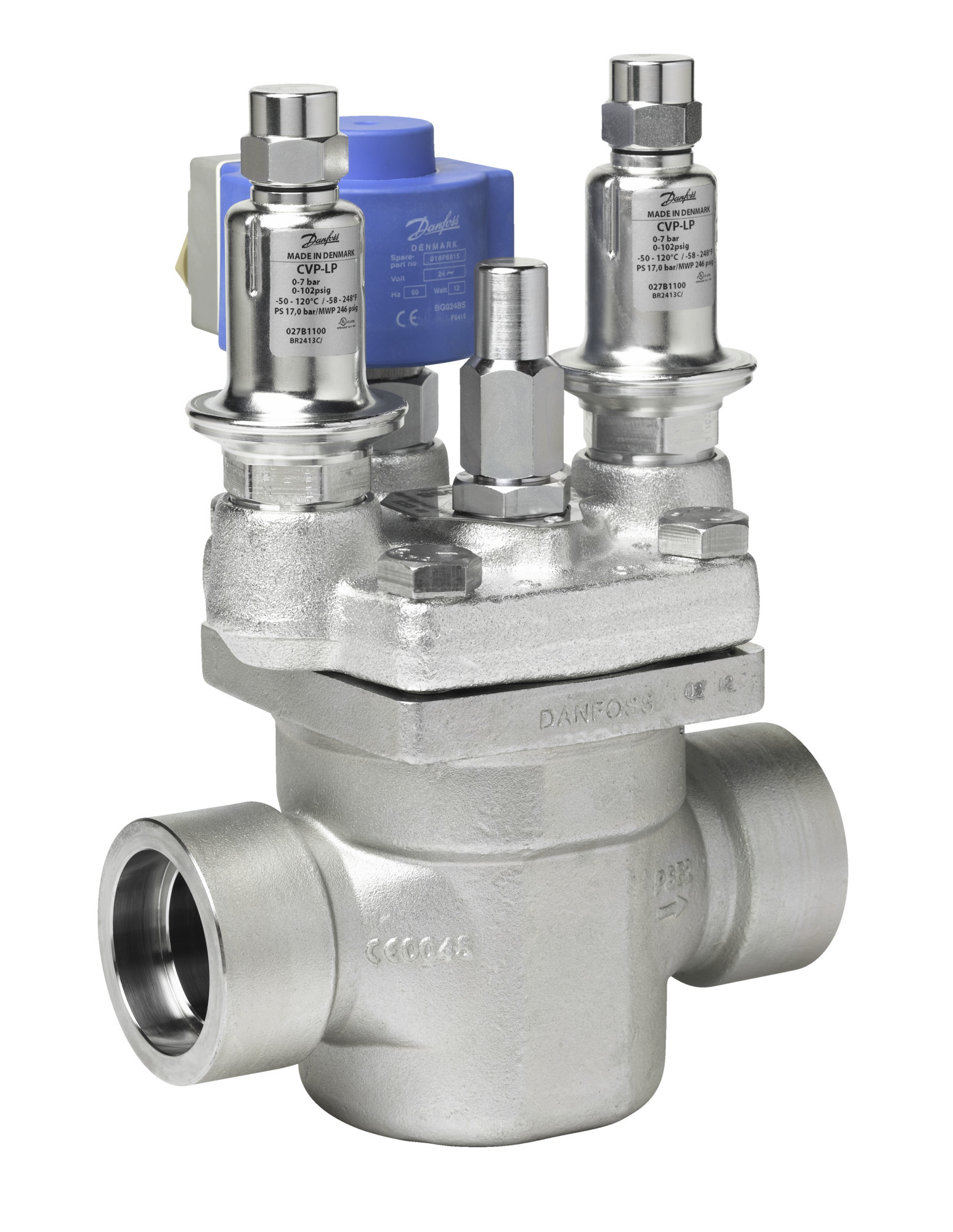

027H2078
Part Number: 027H2078
Product Information
Extended Description
027H2078 Danfoss: Inlet connection type: Butt weld, Connection standard: EN 10220, Inlet connection size [mm]: 20.00, Kv value [m=C2=B3/h]: 1.700, Connection material: Steel
Gross weight
4.372 Kilogram
Net weight
3.911 Kilogram
Volume
8.68 Liter
EAN
5702428236553
Approval
EAC,LLC CDC EURO-TYSK,UL
Body material
Steel
Brand
ICV Flexline
China RoHS compliance
Out of scope
Connection material
Steel
Connection standard
EN 10220
Contain batteries
No
Cv value [gal/min]
2 gal/min
Direction
Straightway
EU RoHS compliance
Out of scope
Ext pilot pressure connection
Weld nipple (P2 Port)
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [in]
3/4 in
Inlet connection size [mm]
20 mm
Inlet connection type
Butt weld
Kv value [m=C2=B3/h]
1.7 m=C2=B3/h
Manual operation option
Manual open spindle
Max. Working Pressure [bar]
65 bar
Max. Working Pressure [psig]
943 psig
Opening configuration
Closed (delta p=3D0 bar),Full open (delta p=E2=89=A50.2 bar),PropOpen (delta p=3D0.07-0.2bar)
Outlet connection size [in]
3/4 in
Outlet connection size [mm]
20 mm
Outlet connection type
Butt weld
Packing format
Single pack
Parts Program name
ICS
PED category
Art. 3, par. 3
Pilot connection configuration
P: Parallel connection,SI-SII: Serial connection
Pressure gauge connection
Int. thread with blind plug
Product accessories
ICM / ICS / ICLX accessories
Product description
Servo operated valve
Product group
Press. and temp. regul. valves
Product Name Description
Pilot operated servo valve
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R1234ze(E),R507A,R1234yf,R125,R152a,R227ea,R236fa,R245fa,R290,R32,R407H,R413A,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R512A,R513A,R513B,R515A,R515B,R516A,R170,R452C,R600,R600a
Serviceable
ICM / ICS / ICLX spare parts
Surface coating
Zn (TLP)
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Top cover
3 function modules
Type
ICS3 25-5
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
Valve operation
Pilot operated
Valve version
Standard version
027H2173
Top cover, ICV 25
027H2201
Function module, ICS 25-5
027H2218
Inspection kit, Inspection kit
027H2219
Repair Kit, Repair kit
027H2225
Overhaul kit, Cone, sealing, packing gland
