027H6023
Part Number: 027H6023
Product Information
Extended Description

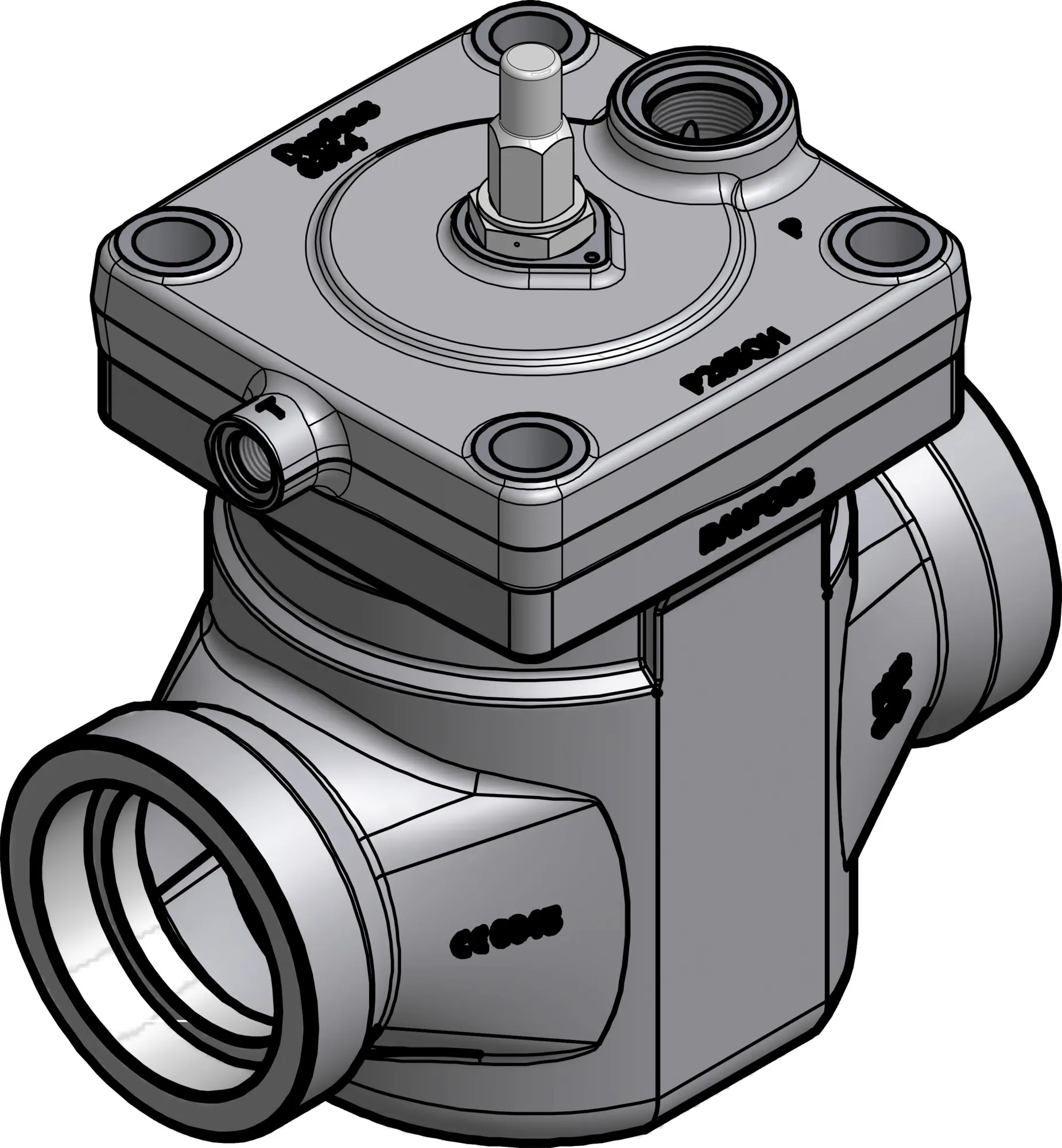

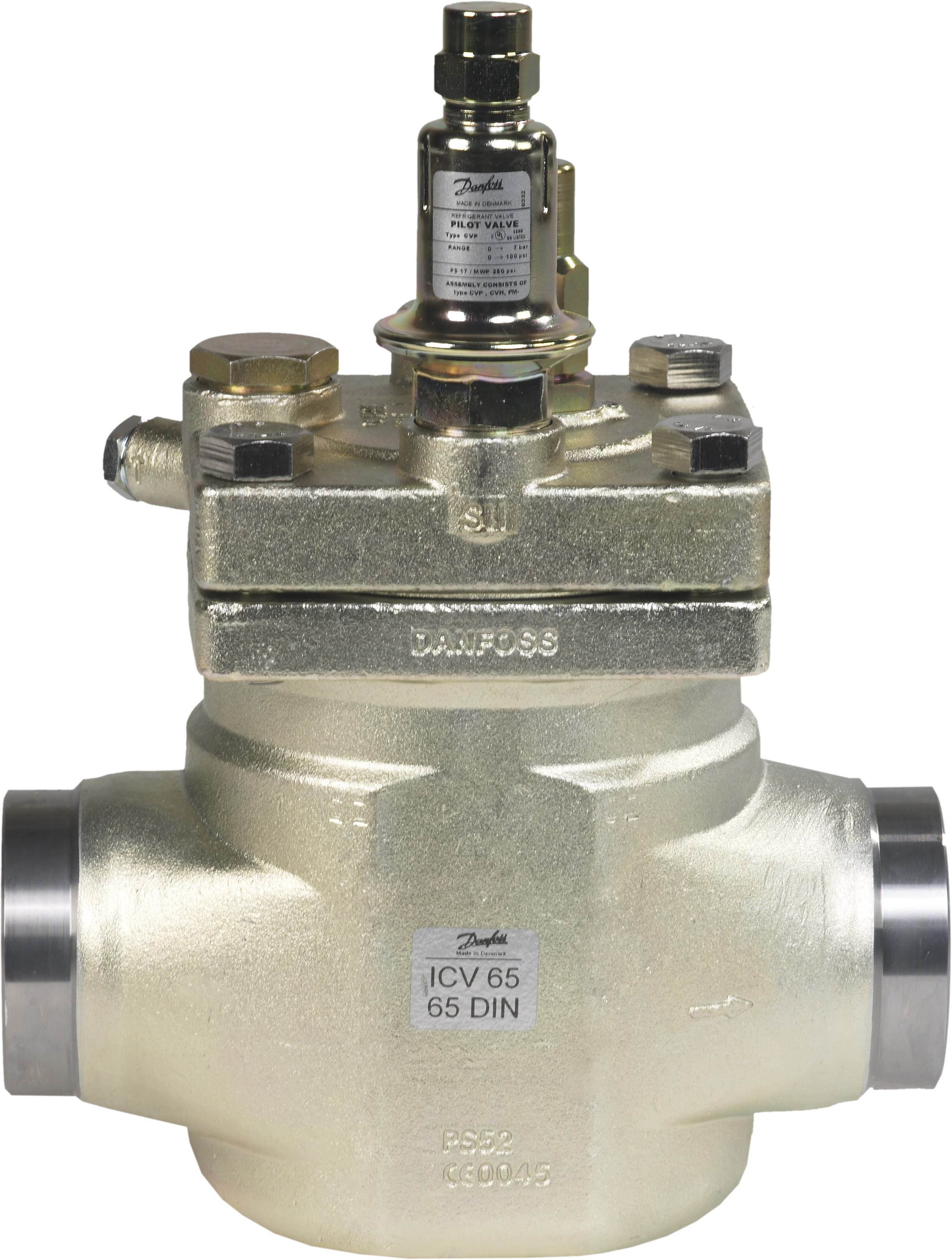

027H6023 Danfoss: Pilot operated servo valve
Gross weight
15.375 Kilogram
Net weight
15.13 Kilogram
Volume
23.7 Liter
EAN
5702428235495
Approval
EAC,LLC CDC TYSK,T=C3=9CV,UL
Body material
Steel
Brand
ICV Flexline
China RoHS compliance
Out of scope
Connection material
Steel
Connection standard
ASME B 16.11
Contain batteries
No
Cv value [gal/min]
81.2 gal/min
Direction
Straightway
EU RoHS compliance
Out of scope
Ext pilot pressure connection
Weld nipple (P2 Port)
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [in]
2 1/2 in
Inlet connection size [mm]
65 mm
Inlet connection type
Socket weld
Kv value [m=C2=B3/h]
70 m=C2=B3/h
Manual operation option
Manual open spindle
Max. Working Pressure [bar]
65 bar
Max. Working Pressure [psig]
943 psig
Opening configuration
Closed (delta p=3D0 bar),Full open (delta p=E2=89=A50.2 bar),PropOpen (delta p=3D0.07-0.2bar)
Outlet connection size [in]
2 1/2 in
Outlet connection size [mm]
65 mm
Outlet connection type
Socket weld
Packing format
Single pack
Parts Program name
ICS
PED category
II
Pressure gauge connection
Int. thread with blind plug
Product accessories
ICM / ICS / ICLX accessories
Product description
Servo operated valve
Product group
Press. and temp. regul. valves
Product Name Description
Pilot operated servo valve
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R1234ze(E),R507A,R1234yf,R125,R152a,R227ea,R236fa,R245fa,R290,R32,R407H,R413A,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R512A,R513A,R513B,R515A,R515B,R516A,R170,R452C,R600,R600a
Serviceable
ICM / ICS / ICLX spare parts
Surface coating
Zn (TLP)
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Top cover
1 function module
Type
ICS1 65
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
Valve operation
Pilot operated
Valve version
Standard version
027H6016
Inspection kit, Inspection kit
027H6017
Repair kit, Repair kit
027H6018
Overhaul kit, Overhaul kit
027H6172
Top cover, ICV 65
027H6200
Function module, ICS 65
