027H7234

Part Number: 027H7234
027H7234
Manufacturer
Danfoss
Part number
027H7234
Category

Product Information

Extended Description

027H7234 Danfoss: Refrigerants: R744; R410A; R134a, Kv value [m=C2=B3/h]: 4.200, Max. Working Pressure [bar]: 140.0, Packing format: Single pack, Quantity per packing format: 1
Gross weight
3.02 Kilogram
Net weight
2.134 Kilogram
Volume
7.883 Liter
EAN
5702428921800
Ambient temperature range [=C2=B0C] [max]
60 =C2=B0C
Ambient temperature range [=C2=B0C] [min]
-40 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
140 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
-40 =C2=B0F
Approval
LLC CDC EURO-TYSK,UL
China RoHS compliance
Out of scope
Connection Solder size [in]
1 1/8 in
Connection standard
EN10220
Connection type
Solder, ODF
Connection Weld size [in]
1 in
Contain batteries
No
Cv value [gal/min]
4.87 gal/min
Diff.press.setting range [bar]
90 bar
Diff.press.setting range [psi]
1305 psi
EU RoHS compliance
Out of scope
Kv value [m=C2=B3/h]
4.2 m=C2=B3/h
Max. Working Pressure [bar]
140 bar
Max. Working Pressure [psig]
2030 psig
MaxOPD [bar]
90 bar
MaxOPD [psig]
1305 psig
Packing format
Single pack
Product accessories
Electric valve accessories
Product description

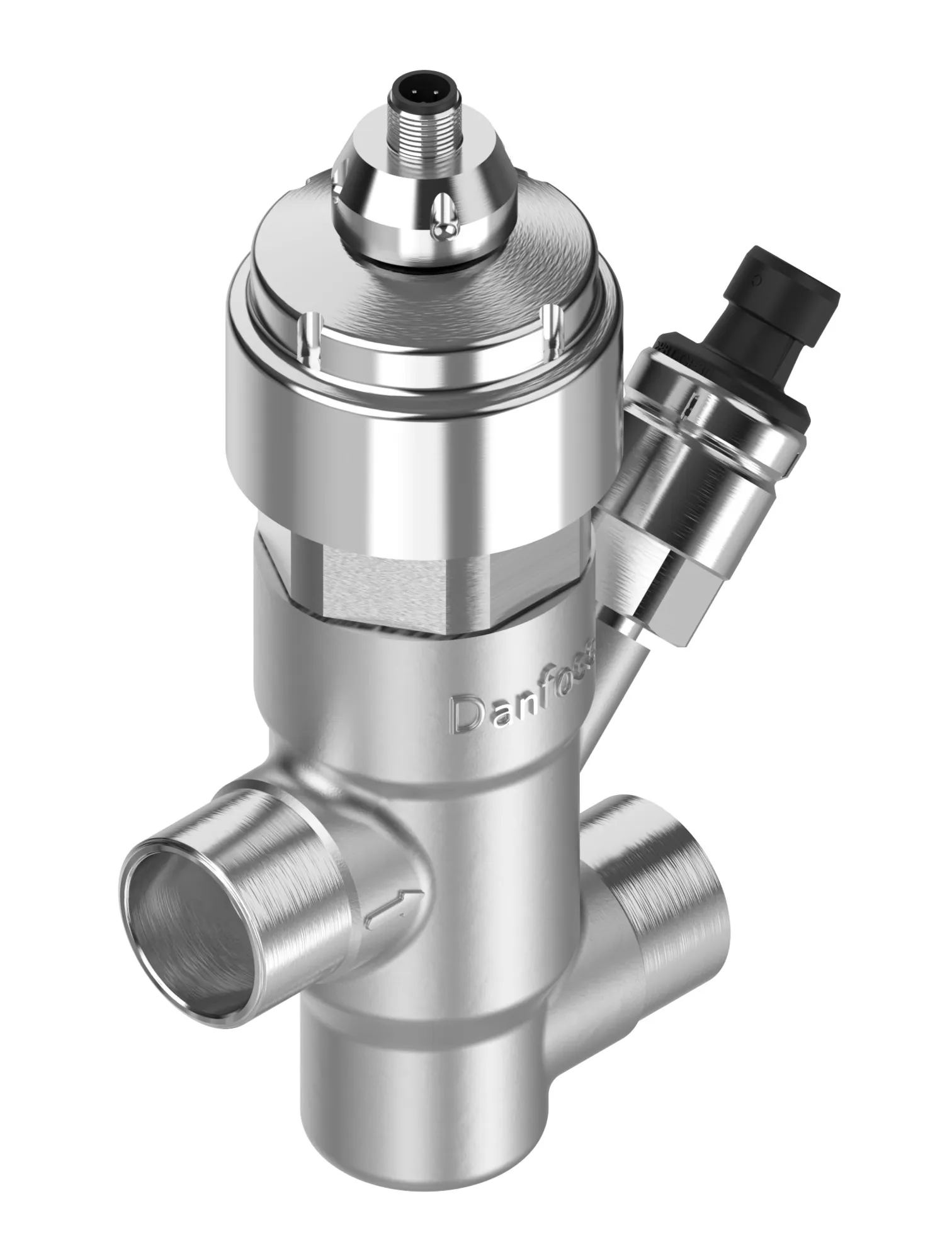

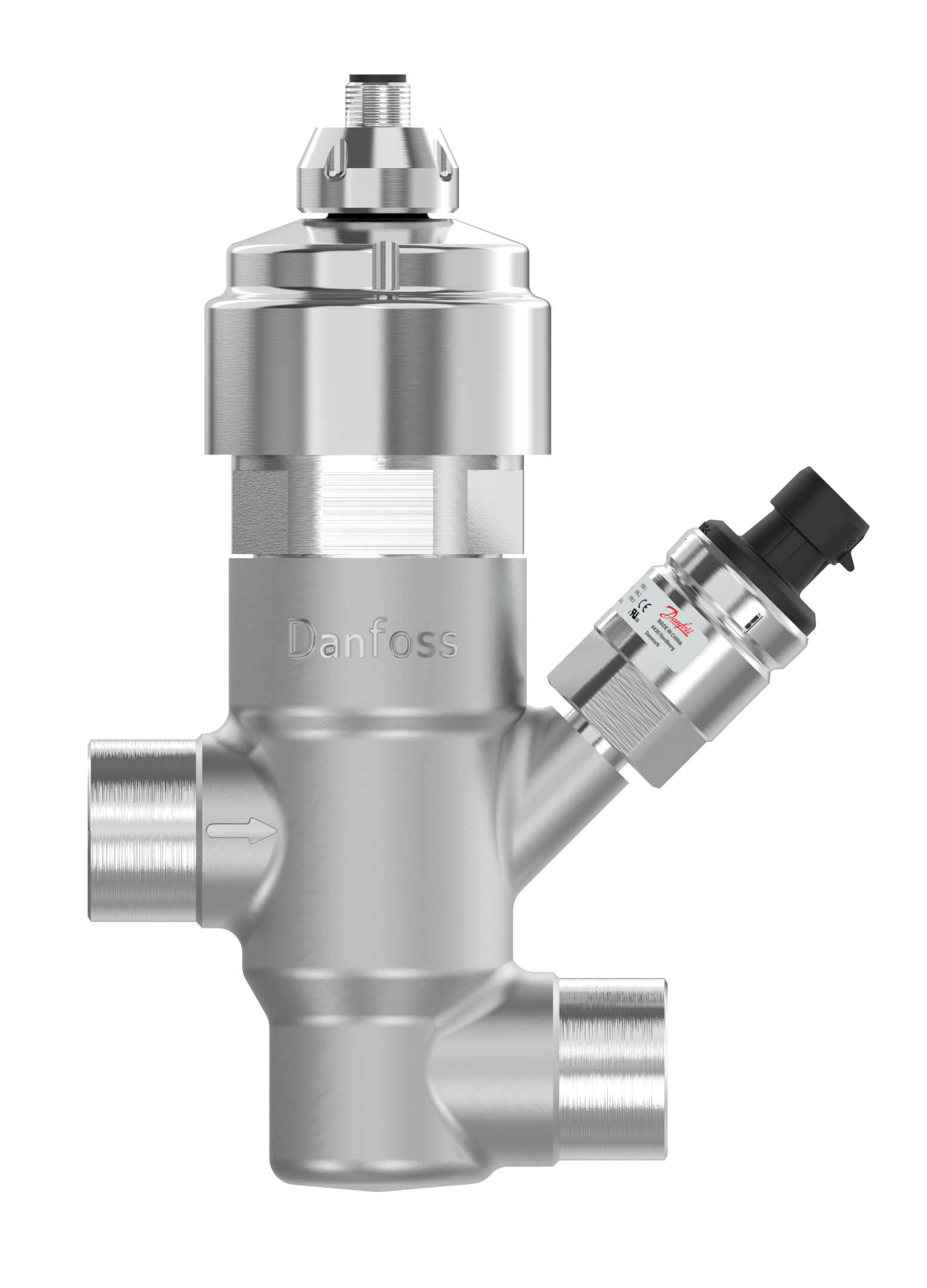

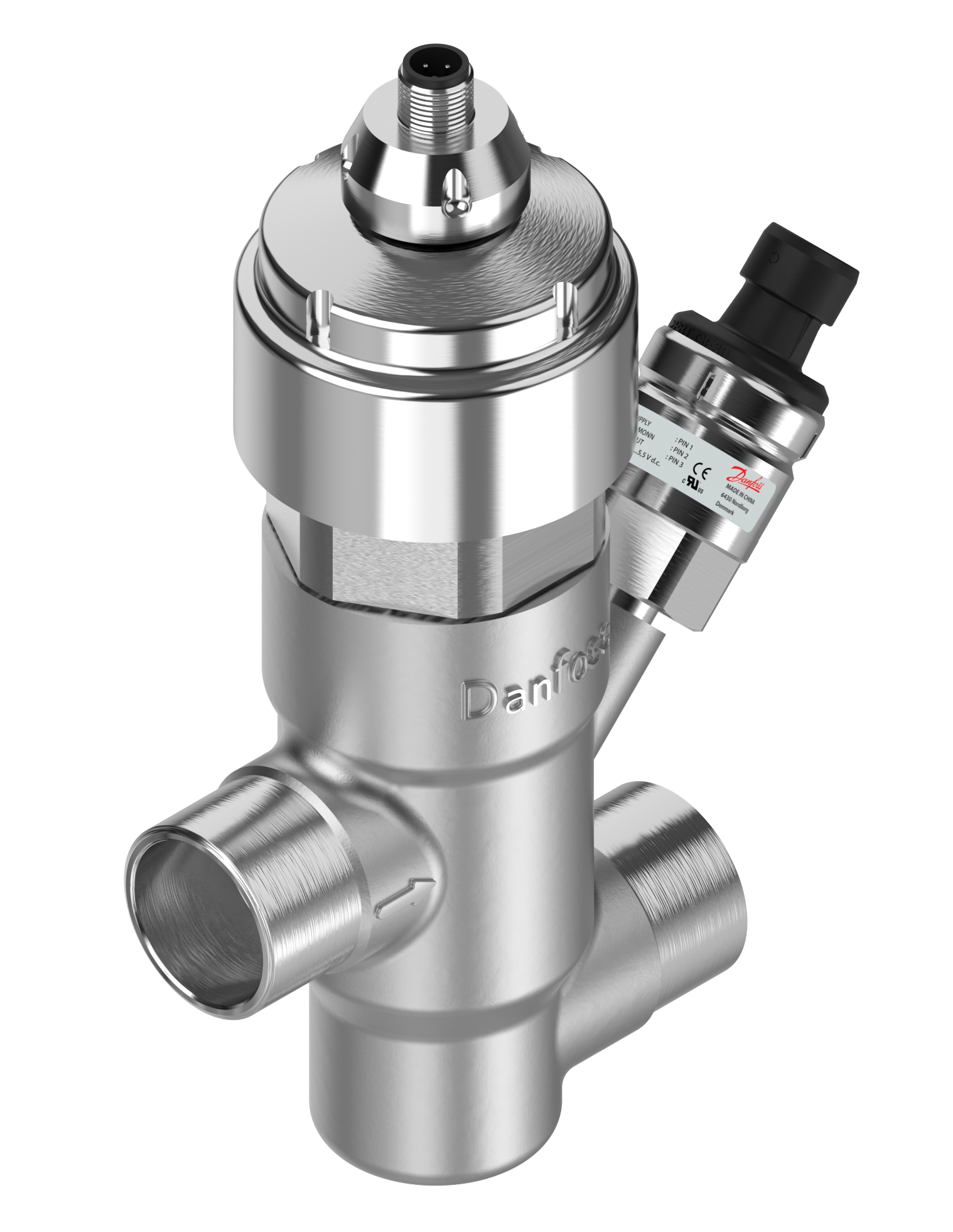

Electric Expansion Valve
Product group
Press. and temp. regul. valves
Product Name Description
Electric regulating valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R410A,R744
SCIP dossier no.
86df1595-1afa-4588-8508-53267586ff81
Serviceable
Electric valve spare parts
Temperature range [=C2=B0C] [max]
60 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
140 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
CCMT 42
UK RoHS compliance
Out of scope
UL approved refrigerants
R134a,R744
UL evaluated
Yes
Refrigerant options now and in the future Supermarket Catalog 2020 Electric regulating valve Type CCMT 2, 8, 16 and 42 Electric regulating valves, type CCMT 2 - CCMT 8 / CCMT 16 - CCMT 42 CO2 Minipack Solution Danfoss MD 033F0686.AS Danfoss MD 033F0691.AI UL MH7648 CCMT - WEB027H7231 CCMT - WEB027H7231 CCMT - WEB027H7231
