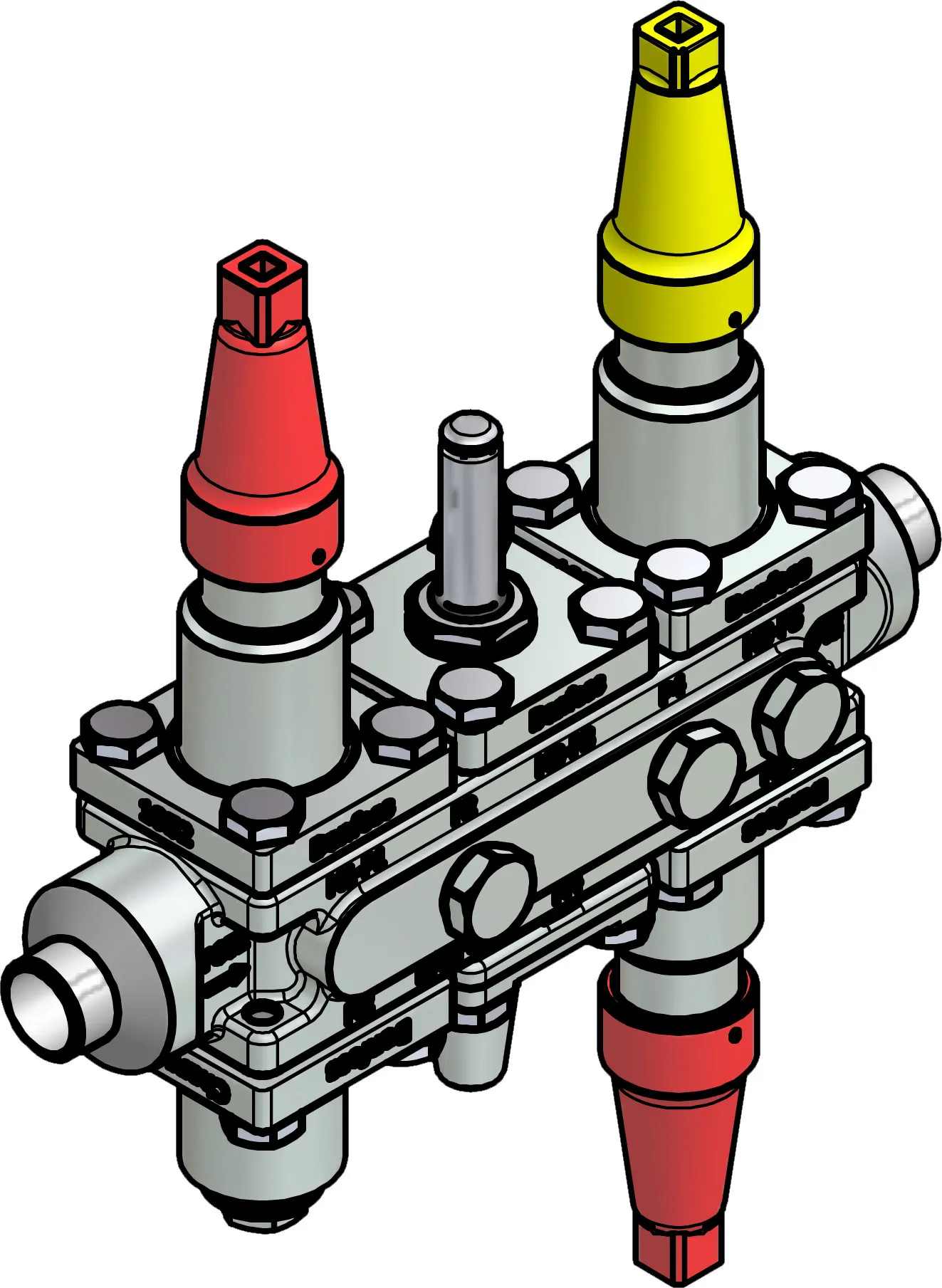

027L3000
Part Number: 027L3000
Product Information
Extended Description
027L3000 Danfoss: Connection size [mm]: 20, Connection type: Butt weld, Body material: Steel, Surface coating: Zn (TLP), Max. Working Pressure [bar]: 52.0, Temperature range [=C2=B0C]: -60 - 120
Gross weight
10.094 Kilogram
Net weight
9.528 Kilogram
Volume
17.6 Liter
EAN
5702428240789
Approval
CE,EAC,LLC CDC TYSK,T=C3=9CV,UL,UKCA
Body material
Steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Steel
Connection size [in]
3/4 in
Connection size [mm]
20 mm
Connection standard
EN 10220
Connection type
Butt weld
Contain batteries
No
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Module 1
Stop valve
Module 1 type
ICFS 20
Module 2
Filter
Module 2 type
ICFF 20
Module 3
Solenoid valve
Module 3 type
ICFE 20
Module 4
Manual opening
Module 4 type
ICFO 20
Module 5
Manual regulating valve
Module 5 type
ICFR 20A
Module 6
Stop valve
Module 6 type
ICFS 20
Packing format
Single pack
PED category
II
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description
Valve station
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R507A,R1234yf,R1234ze(E),R125,R227ea,R236fa,R245fa,R32,R407H,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A
Serviceable
ICF spare parts
Side port connection size [in]
3/8 in
Side port connection type
G
Side port placement
P2-P4-P5-P7-P9-P10
Side port quantity [pc]
6 pc
Surface coating
Zn (TLP)
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
ICF 20-6-1RA
Type code ICF
ICF-20-6-20DSXFXEXOXRASX61XX
UK RoHS compliance
Out of scope
UL evaluated
Yes
027L1250
Spare part, ICFS 20, Stop valve module
027L1251
Spare part, ICFF 20, Filter module
027L1254
Spare part, ICFR 20A, Manual regulating valve module
027L1257
Spare part, ICFE 20, Solenoid valve module
027L1260
Spare part, ICFO 20, Manual opening module
027L1261
Spare part, ICF 20, Gasket kit
