027L3160
Part Number: 027L3160
Product Information
Extended Description
027L3160 Danfoss: Connection size [mm]: 25, Connection type: Socket weld, Body material: Steel, Surface coating: ZnCr04, Max. Working Pressure [bar]: 52.0, Temperature range [=C2=B0C]: -60 - 120
Gross weight
10.795 Kilogram
Net weight
10.456 Kilogram
Volume
18.4 Liter
EAN
5702428453325
Approval
CE,EAC,LLC CDC TYSK,T=C3=9CV,UL,UKCA
Body material
Steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection size [in]
1 in
Connection size [mm]
25 mm
Connection standard
ASME B 16.11
Connection type
Socket weld
Contain batteries
No
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Module 1
Stop valve
Module 1 type
ICFS 20
Module 2
Filter
Module 2 type
ICFF 20E
Module 3
Solenoid valve
Module 3 type
ICFE 20
Module 4
Manual opening
Module 4 type
ICFO 20
Module 5
Motor valve
Module 5 type
ICM 20-B66
Module 6
Stop valve
Module 6 type
ICFS 20
Packing format
Single pack
PED category
II
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description
Valve station
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R507A,R1234yf,R1234ze(E),R125,R227ea,R236fa,R245fa,R32,R407H,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A
Serviceable
ICF spare parts
Side port placement
P2-P4-P5-P7-P9-P10
Side port quantity [pc]
6 pc
Surface coating
ZnCr04
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
ICF 20-6-5MB66
Type code ICF
ICF-20-6-25SSXFEEXOXM2SX65XX
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
027H1194
Function module, ICM 20-B66, Steel
027L1250
Spare part, ICFS 20, Stop valve module
027L1257
Spare part, ICFE 20, Solenoid valve module
027L1260
Spare part, ICFO 20, Manual opening module
027L1261
Spare part, ICF 20, Gasket kit
027L2256
Spare part, ICFF 20E, Filter module
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives]
ICF - Control your installation and servicing costs - and be ready for all future refrigerants
ICV with flanges: Danfoss now makes retrofit easy
New ICF Flexline stainless steel valve station for the brewery industry
New ICF Flexline stainless steel valve station for the dairy industry
New ICF Flexline stainless steel valve station for the Fishery Industry
New ICF Flexline stainless steel valve station in the meat industry
One Flexline platform Multiple options (ICV, ICF & SVL)
The smarter, faster route to Installation and service - The ICF Valve Station - member of the Flexline family
Valve stations - Industrial Refrigeration product group catalogue
ICF valve stations =E2=80=93 (Carbon steel)
Danfoss MD 033F0686.AS
Danfoss MD 033F0691.AI
Danfoss MD 033F1196.02
T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02)
Danfoss UK 033F4026.AB

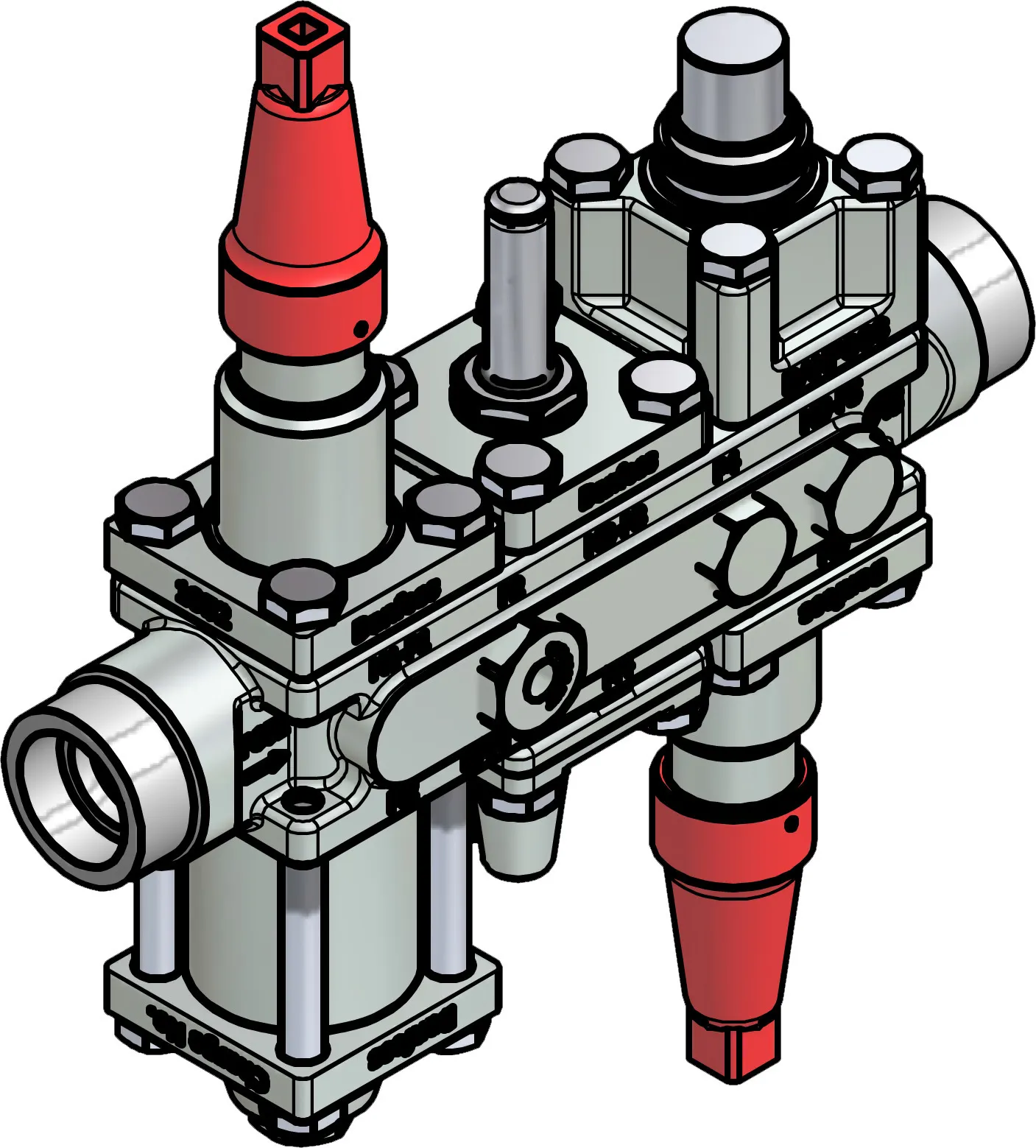

ICF 20-6-5MB66 - 027L3160
