027L3435

Part Number: 027L3435
027L3435
Manufacturer
Danfoss
Part number
027L3435
Category

Product Information

Extended Description

027L3435 Danfoss: Connection size [mm]: 20, Connection type: Butt weld, Body material: Stainless steel, Surface coating: uncoated, Max. Working Pressure [bar]: 52.0, Temperature range [=C2=B0C]: -60 - 120
Gross weight
7.012 Kilogram
Net weight
0.28 Kilogram
Volume
16 Liter
EAN
5702428962124
Approval
EAC,UL
Body material
Stainless steel
China RoHS compliance
Out of scope
Connection material
Stainless steel
Connection size [in]
3/4 in
Connection size [mm]
20 mm
Connection standard
EN 10220
Connection type
Butt weld
Contain batteries
No
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
450 psig
Module 1
Stop valve
Module 1 type
ICFS SS 20
Module 2
Filter
Module 2 type
ICFF SS 20
Module 3
Solenoid valve
Module 3 type
ICFE SS 20
Module 4
Stop valve
Module 4 type
ICFS SS 20
Packing format
Single pack
PED category
II
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description

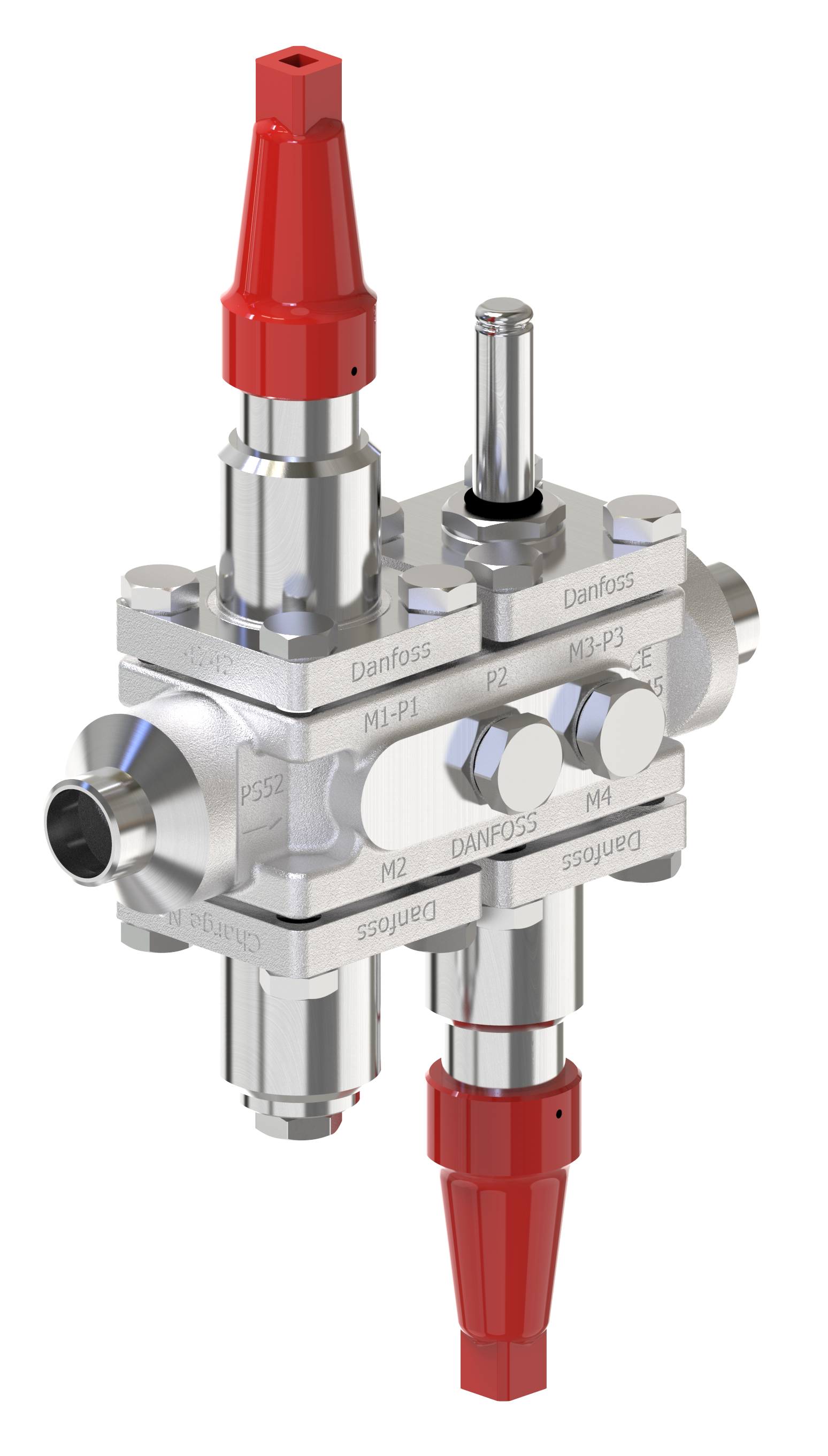

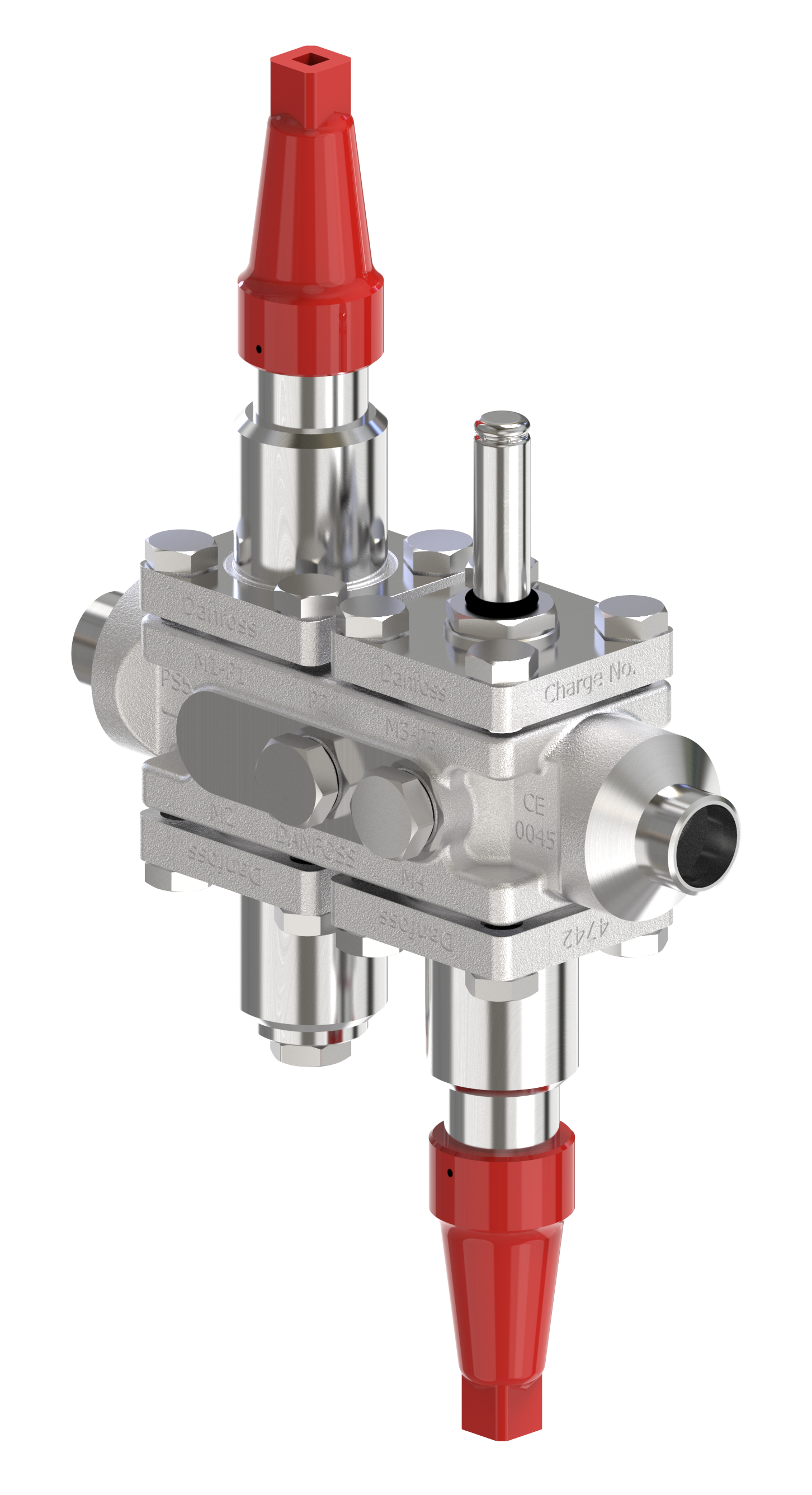

Valve station
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R507A,R1234yf,R1234ze(E),R125,R227ea,R236fa,R245fa,R32,R407H,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A
Serviceable
ICF spare parts
Side port connection size [in]
3/8 in
Side port connection type
G
Side port placement
P2-P3-P5-P6
Side port quantity [pc]
4 pc
Surface coating
uncoated
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
ICF SS 20-4-9
Type code ICF
ICF-20-4-20KSXFXEXSXXXXX49XX
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
027L1261
Spare part, ICF 20, Gasket kit
027L4772
Spare part, ICFS SS 20, Stop valve module
027L4776
Spare part, ICFF SS 20, Filter module
027L4778
Spare part, ICFE SS 20, Solenoid valve module
