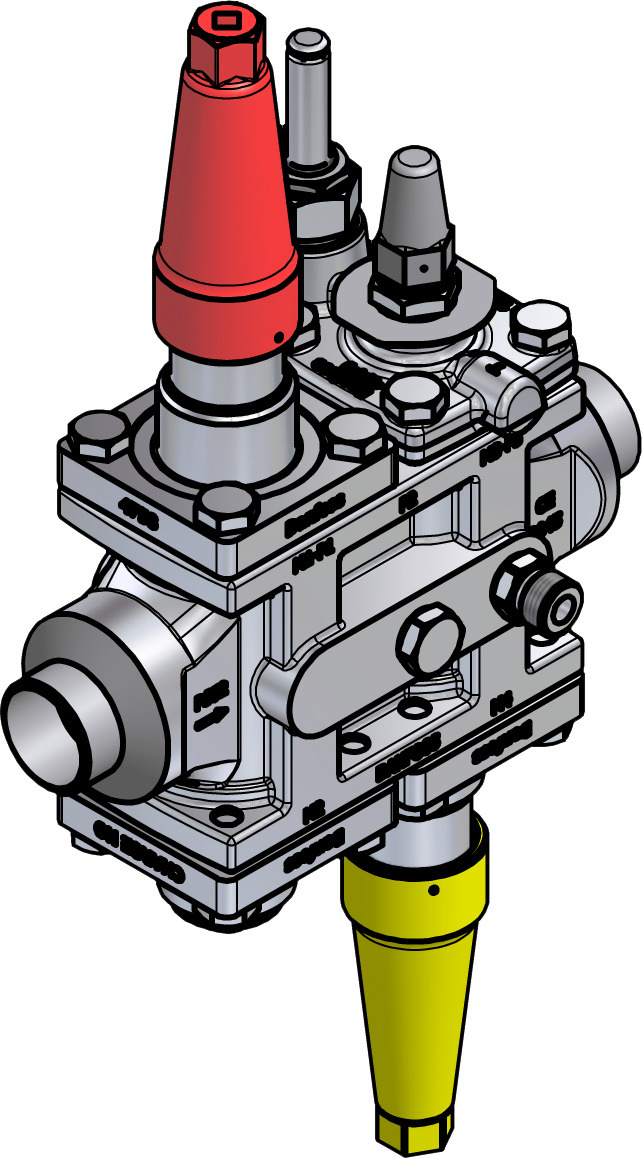

027L3594

Part Number: 027L3594
027L3594
Manufacturer
Danfoss
Part number
027L3594
Category

Product Information

Extended Description

027L3594 Danfoss: Connection size [mm]: 40, Connection type: Butt weld, Body material: Stainless steel, Surface coating: uncoated, Max. Working Pressure [bar]: 52.0, Temperature range [=C2=B0C]: -60 - 120
Gross weight
18.133 Kilogram
Net weight
18.113 Kilogram
Volume
32.77 Liter
EAN
5715162144398
Approval
CE,EAC,LLC CDC TYSK,T=C3=9CV,UL,UKCA
Body material
Stainless steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection size [in]
1 1/2 in
Connection size [mm]
40 mm
Connection standard
ASME B 36.19M SCHEDULE 40S
Connection type
Butt weld
Contain batteries
No
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Module 1
Stop valve
Module 1 type
ICFS SS 25
Module 2
Filter
Module 2 type
ICFF SS 25E
Module 3
Solenoid valve
Module 3 type
ICFE SS 25
Module 4
Manual regulating valve
Module 4 type
ICFR SS 25B
Packing format
Single pack
PED category
II
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description
Valve station
Quantity per packing format
1 pc
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R507A,R1234yf,R1234ze(E),R125,R227ea,R236fa,R245fa,R32,R407H,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A
Serviceable
ICF spare parts
Side port connection size [in]
3/8 in
Side port connection type
NPT
Side port placement
P2-P3-P5-P6
Side port quantity [pc]
4 pc
Surface coating
uncoated
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
ICF SS 25-4-10RB
Type code ICF
ICF-25-4-40LSXFEEHRBXXXX4AXX
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
027L2260
Spare part, ICF 25 - 40, Top cover gasket set
027L4791
Spare part, ICFS SS 25 - 40, Stop valve module
027L4793
Spare part, ICFR SS B 25 - 40, Manual regulating valve module
027L4796
Spare part, ICFF SS 25-40E, Filter module
027L4797
Spare part, ICFE SS 25 - 40, Solenoid valve module
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] ICF - Control your installation and servicing costs - and be ready for all future refrigerants ICV with flanges: Danfoss now makes retrofit easy Valve station, type ICF SS 20 and ICF SS 25 Valve station, Types ICF 15, ICF 20, ICF 25, ICF SS 20 and ICF SS 25 Reducing leaks, increasing peace of mind - ICF case story with Innovative Refrigeration Avoiding Component Failure in Industrial Refrigeration Systems Changing from HFCs/HCFCs to Ammonia in Industrial Refrigeration Changing from HFCs/HCFCs to Ammonia in Industrial Refrigeration_SHORT VERSION Multifunction valves and safety devices - (stainless steel) Valve stations (Stainless Steel) Danfoss MD 033F0691.AI Danfoss MD 033F1196.02 T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02) Danfoss UK 033F4026.AB 027L4732 - 027L4770 - ICF SS 25-4-10RB
