027L4002
Part Number: 027L4002
Product Information
Extended Description
027L4002 Danfoss: Connection size [mm]: 25, Connection type: Butt weld, Body material: Steel, Surface coating: Zn (TLP), Max. Working Pressure [bar]: 52.0, Temperature range [=C2=B0C]: -60 - 120
Gross weight
24.5 Kilogram
Net weight
23.566 Kilogram
Volume
35.34 Liter
EAN
5702428239141
Approval
CE,EAC,LLC CDC TYSK,T=C3=9CV,UL,UKCA
Body material
Steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Steel
Connection size [in]
1 in
Connection size [mm]
25 mm
Connection standard
EN 10220
Connection type
Butt weld
Contain batteries
No
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Module 1
Stop valve
Module 1 type
ICFS 25
Module 2
Filter
Module 2 type
ICFF 25
Module 3
Solenoid valve
Module 3 type
ICFE 25
Module 4
Blank top cover
Module 4 type
ICFB 25
Module 5
Manual regulating valve
Module 5 type
ICFR 25A
Module 6
Stop valve
Module 6 type
ICFS 25
Packing format
Single pack
PED category
II
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description
Valve station
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R507A,R1234yf,R1234ze(E),R125,R227ea,R236fa,R245fa,R32,R407H,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A
SCIP dossier no.
237f365e-f211-4199-a63b-900f6a811f69
Serviceable
ICF spare parts
Side port connection size [in]
3/8 in
Side port connection type
G
Side port placement
P2-P4-P5-P7-P9-P10
Side port quantity [pc]
6 pc
Surface coating
Zn (TLP)
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
ICF 25-6-1RA
Type code ICF
ICF-25-6-25DSXFXEHBXRASX61XX
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
027L2250
Spare part, ICFS 25 - 40, Stop valve module
027L2251
Spare part, ICFF 25 - 40, Filter module
027L2254
Spare part, ICFR A 25 - 40, Manual regulating valve module
027L2257
Spare part, ICFE 25 - 40, Solenoid valve module
027L2259
Spare part, ICFB 25 - 40, Blank top cover
027L2260
Spare part, ICF 25 - 40, Top cover gasket set
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives]
ICF - Control your installation and servicing costs - and be ready for all future refrigerants
ICV with flanges: Danfoss now makes retrofit easy
New ICF Flexline stainless steel valve station for the brewery industry
New ICF Flexline stainless steel valve station for the dairy industry
New ICF Flexline stainless steel valve station for the Fishery Industry
New ICF Flexline stainless steel valve station in the meat industry
One Flexline platform Multiple options (ICV, ICF & SVL)
The smarter, faster route to Installation and service - The ICF Valve Station - member of the Flexline family
Valve stations - Industrial Refrigeration product group catalogue
ICF valve stations =E2=80=93 (Carbon steel)
Danfoss MD 033F0691.AI
Danfoss MD 033F1196.02
T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02)
Danfoss UK 033F4026.AB

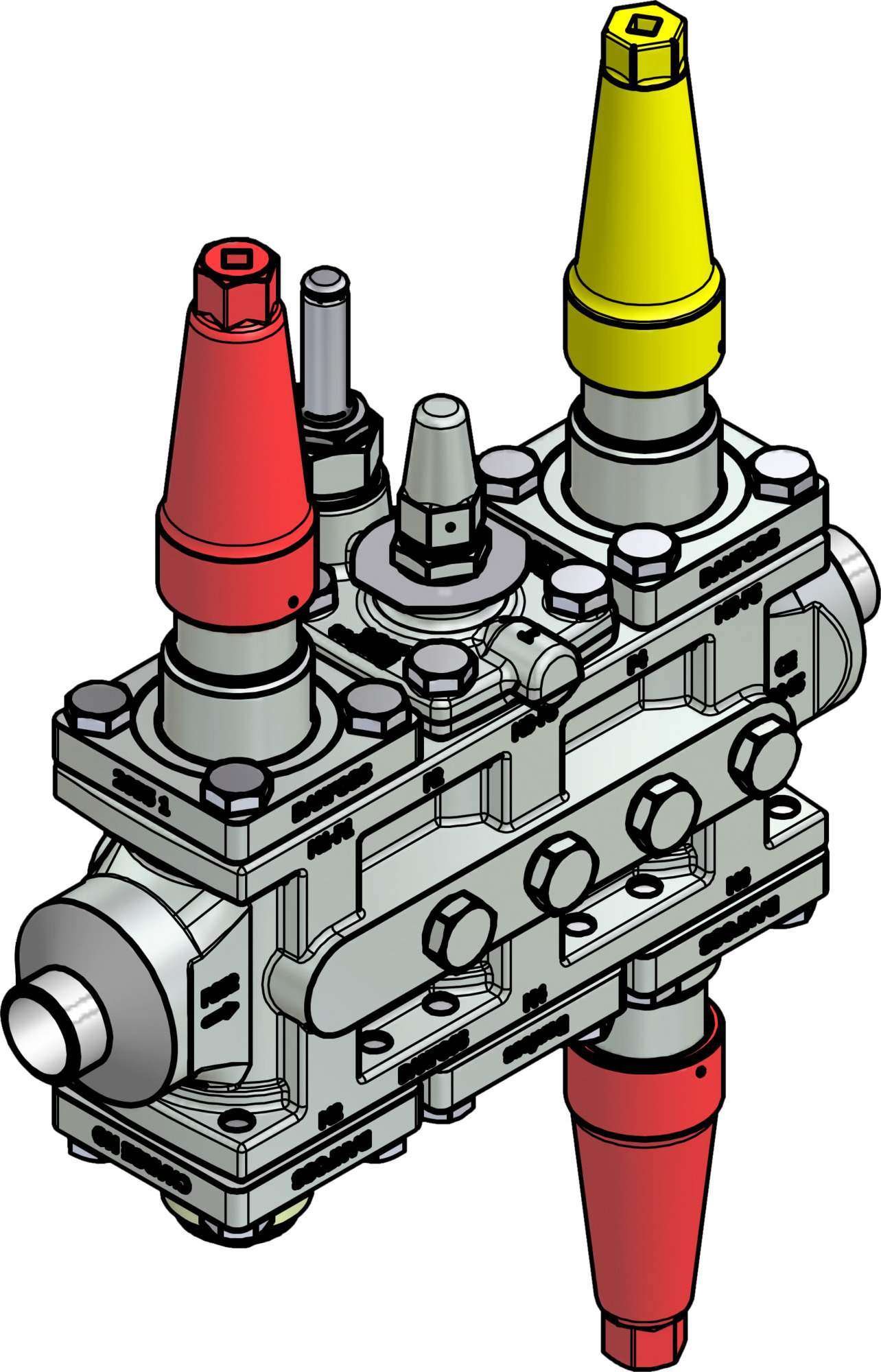

ICF 25-6-1RA - 027L4002
ICF 25-6-1RA - 027L4002

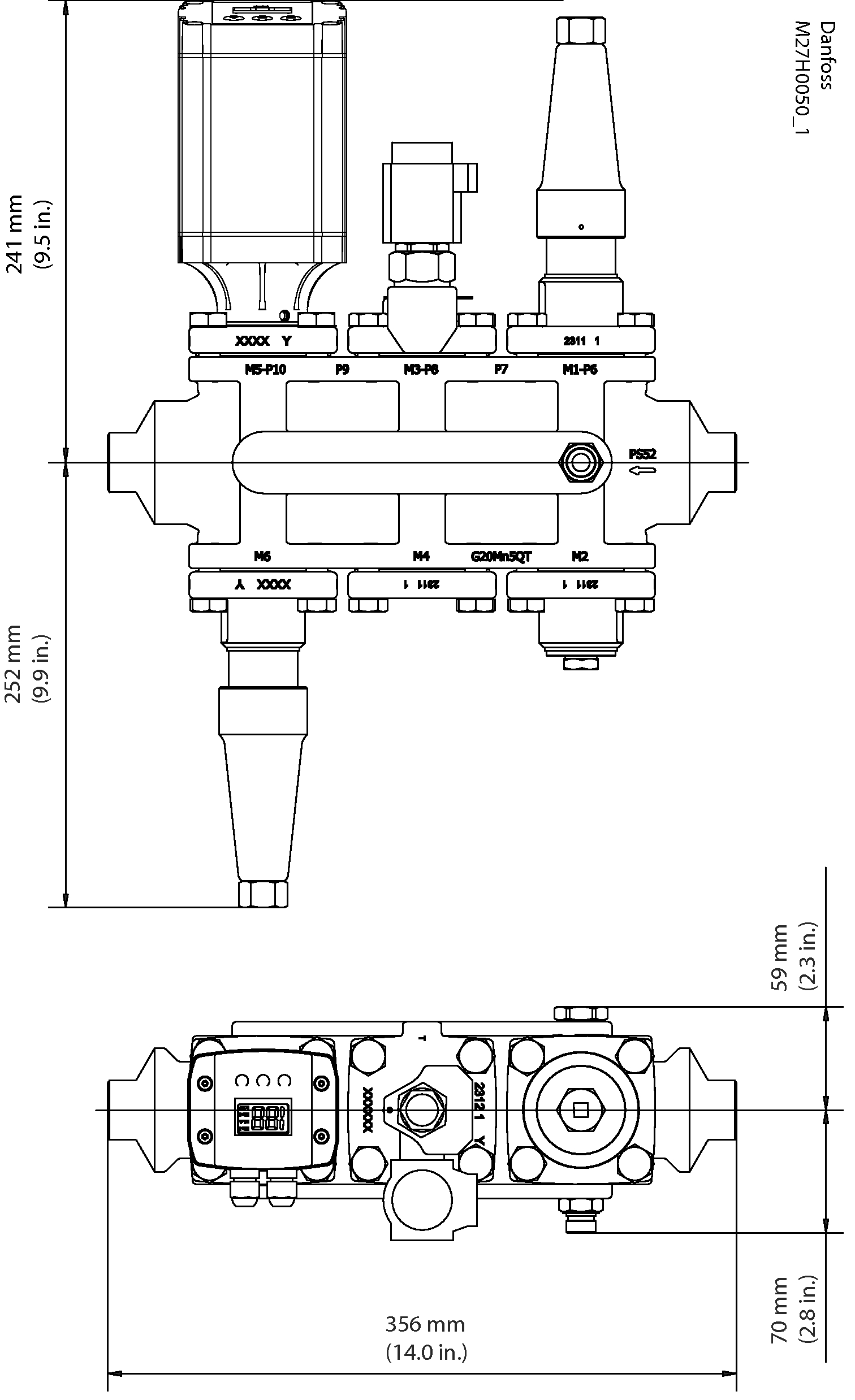

ICF 25-6 - ICF 40-6, maximum dimensions for the ICF valve stations
