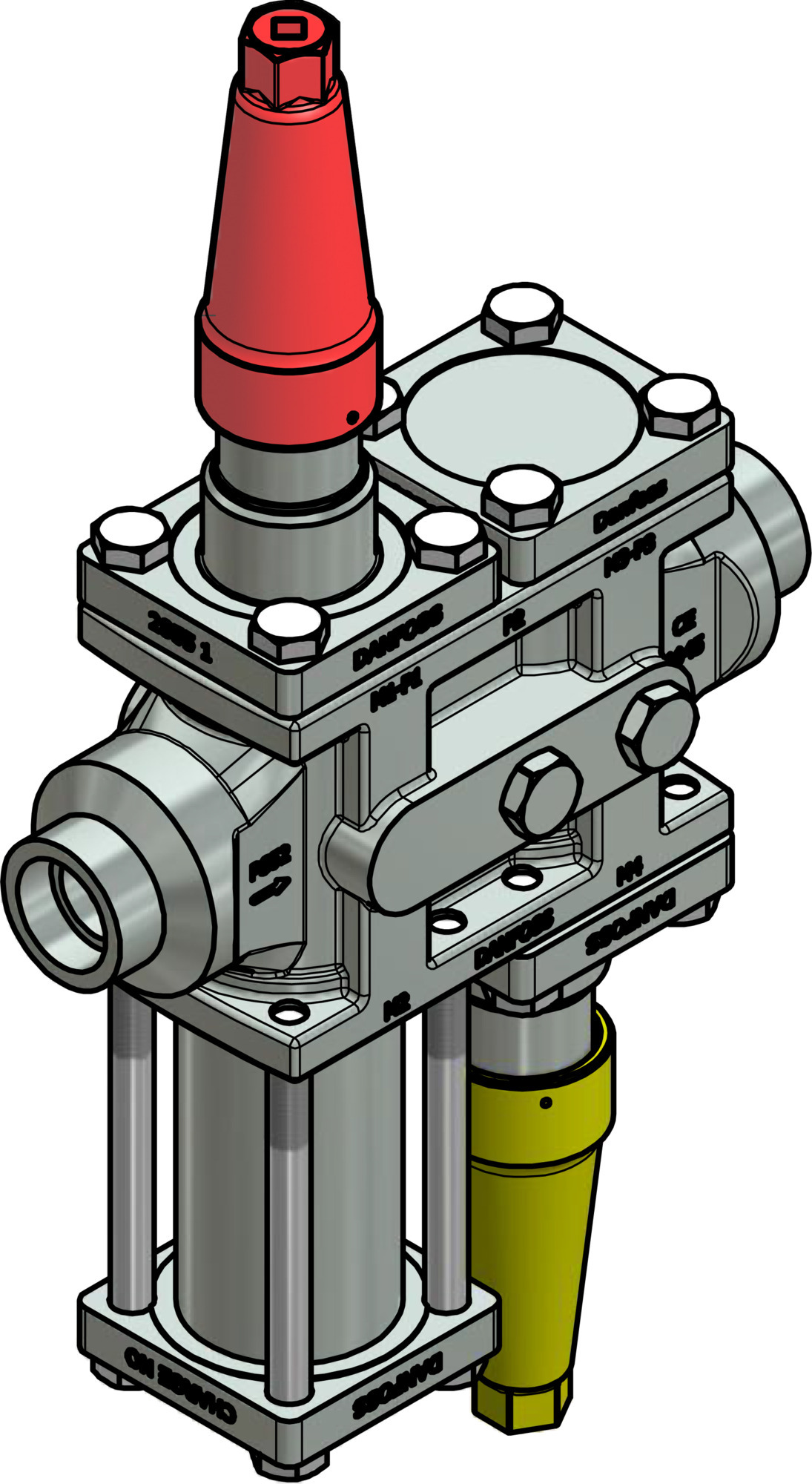

027L4180

Part Number: 027L4180
027L4180
Manufacturer
Danfoss
Part number
027L4180
Category

Product Information

Extended Description

027L4180 Danfoss: Connection size [mm]: 25, Connection type: Socket weld, Body material: Steel, Surface coating: ZnCr04, Max. Working Pressure [bar]: 52.0, Temperature range [=C2=B0C]: -60 - 120
Gross weight
17.022 Kilogram
Net weight
0.007 Kilogram
Volume
34.496 Liter
EAN
5702428928236
Approval
CE,EAC,LLC CDC TYSK,T=C3=9CV,UL,UKCA
Body material
Steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection size [in]
1 in
Connection size [mm]
25 mm
Connection standard
ASME B 16.11
Connection type
Socket weld
Contain batteries
No
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Module 1
Stop valve
Module 1 type
ICFS 20
Module 2
Filter
Module 2 type
ICFF 20E
Module 3
Blank top cover
Module 3 type
ICFB 20
Module 4
Manual regulating valve
Module 4 type
ICFR 20A
Packing format
Single pack
PED category
II
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description
Valve station
Quantity per packing format
1 pc
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R507A,R1234yf,R1234ze(E),R125,R227ea,R236fa,R245fa,R32,R407H,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A
Serviceable
ICF spare parts
Side port placement
P2-P3-P5-P6
Side port quantity [pc]
4 pc
Surface coating
ZnCr04
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
ICF 25-4-90
Type code ICF
ICF-25-4-25SSXFEBXRAXXXX4XXX
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
027L1250
Spare part, ICFS 20, Stop valve module
027L1254
Spare part, ICFR 20A, Manual regulating valve module
027L1259
Spare part, ICFB 20, Blank top cover
027L1261
Spare part, ICF 20, Gasket kit
027L2256
Spare part, ICFF 20E, Filter module
