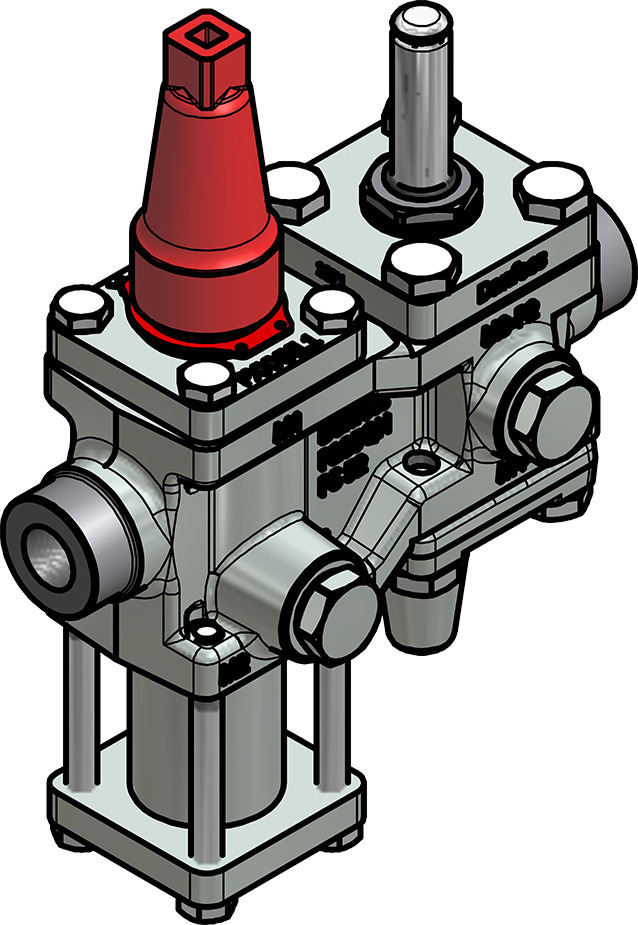

027L4534

Part Number: 027L4534
027L4534
Manufacturer
Danfoss
Part number
027L4534
Category

Product Information

Extended Description

027L4534 Danfoss: Connection size [mm]: 15, Connection type: Pipe thread, Body material: Steel, Surface coating: Zn (TLP), Max. Working Pressure [bar]: 52.0, Temperature range [=C2=B0C]: -60 - 120
Gross weight
6.424 Kilogram
Net weight
6.242 Kilogram
Volume
12.034 Liter
EAN
5702428887366
Approval
EAC,UL
Body material
Steel
China RoHS compliance
Out of scope
Connection material
Steel
Connection size [in]
1/2 in
Connection size [mm]
15 mm
Connection standard
ANSI B 1.20.1
Connection type
Pipe thread
Contain batteries
No
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
450 psig
Module 1
Stop valve
Module 1 type
ICFS 15
Module 2
Filter
Module 2 type
ICFF 15
Module 3
Solenoid valve
Module 3 type
ICFE 20
Module 4
Manual opening
Module 4 type
ICFO 20
Packing format
Single pack
PED category
Art. 4, par. 3
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description
Valve station
Quantity per packing format
1 pc
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R507A,R1234yf,R1234ze(E),R125,R227ea,R236fa,R245fa,R32,R407H,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A
Serviceable
ICF spare parts
Side port placement
P1-P2
Side port quantity [pc]
2 pc
Surface coating
Zn (TLP)
Temperature range [=C2=B0C] [max]
120 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
248 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
ICF 15-4-8
Type code ICF
ICF-15-4-15FSYFYEXOXXXXX28XX
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
027L1246
Spare part, ICFF 15, Filter module
027L1257
Spare part, ICFE 20, Solenoid valve module
027L1260
Spare part, ICFO 20, Manual opening module
148B5276
Function module, SVA-S 15-20, Max. Working Pressure [bar]: 52.0, Cap
