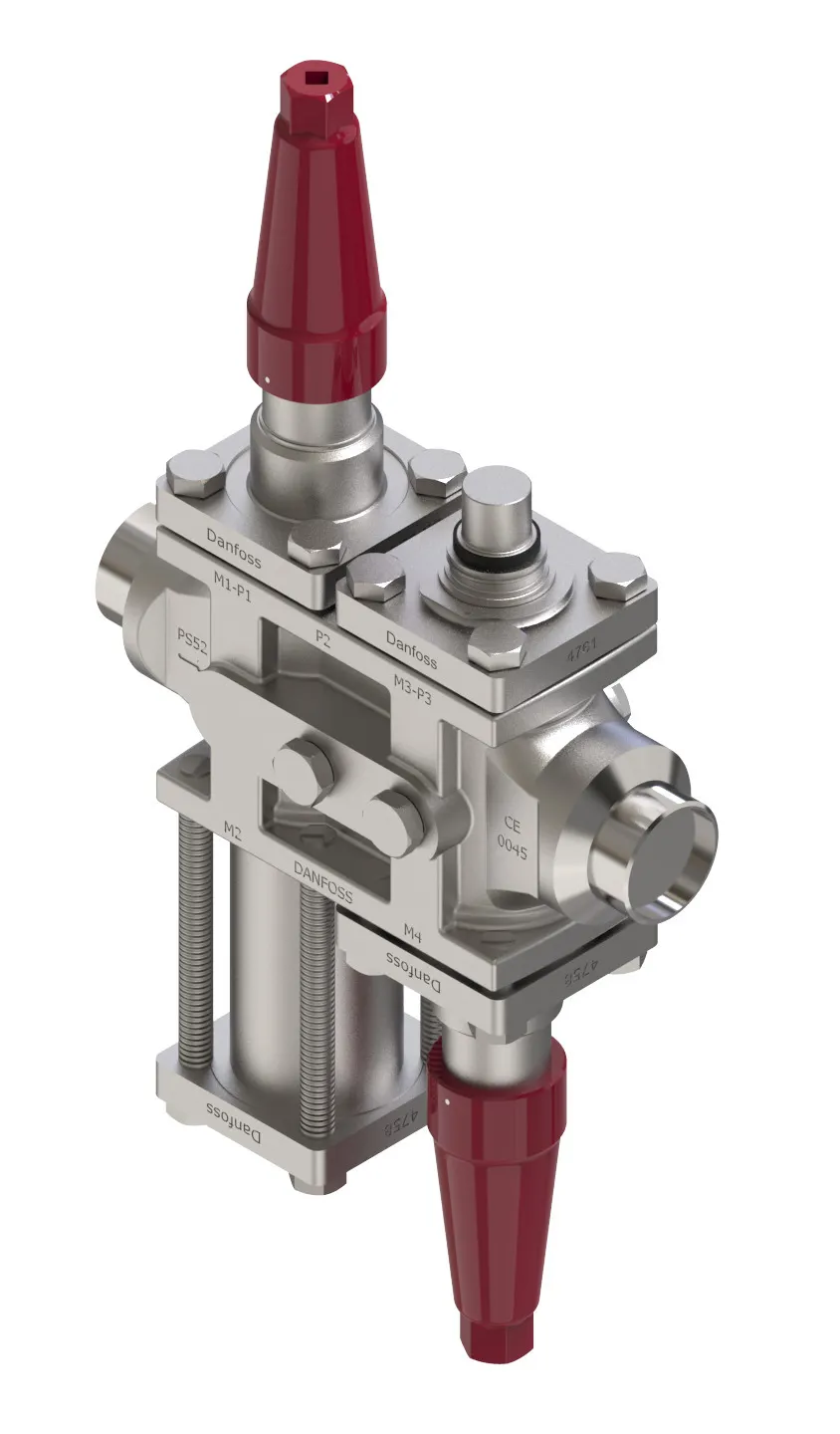

027L4822

Part Number: 027L4822
027L4822
Manufacturer
Danfoss
Part number
027L4822
Category

Product Information

Extended Description

027L4822 Danfoss: Connection size [mm]: 25, Connection type: Butt weld, Body material: Stainless steel, Surface coating: uncoated, Max. Working Pressure [bar]: 52.0, Temperature range [°C]: -60 - 120
Gross weight
10.438 Kilogram
Net weight
10.418 Kilogram
Volume
20.16 Liter
EAN
5715162476062
Approval
CE,EAC,LLC CDC EURO-TYSK
Body material
Stainless steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Stainless steel
Connection size [in]
1 in
Connection size [mm]
25 mm
Connection standard
EN 10220
Connection type
Butt weld
Contain batteries
No
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Module 1
Stop valve
Module 1 type
ICFS SS 20
Module 2
Filter
Module 2 type
ICFF SS 20
Module 3
Solenoid valve
Module 3 type
ICFE SS 20
Module 4
Manual opening
Module 4 type
ICFO SS 20
Module 5
Motor valve
Module 5 type
ICM SS 20B
Module 6
Stop valve
Module 6 type
ICFS SS 20
Packing format
Single pack
PED category
II
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description
Valve station
Quantity per packing format
1 pc
Refrigerants
R1234yf,R1234ze(E),R125,R134a,R22,R227ea,R236fa,R245fa,R32,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R407H,R409A,R410A,R417A,R421A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R507A,R513A,R513B,R515A,R515B,R516A,R717,R744
Serviceable
ICF spare parts
Side port connection size [in]
3/8 in
Side port connection type
G
Side port placement
P2-P4-P5-P7-P9-P10
Side port quantity [pc]
6 pc
Surface coating
uncoated
Temperature range [°C] [max]
120 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
248 °F
Temperature range [°F] [min]
-76 °F
Type
ICF SS 20-6-5MB
Type code ICF
ICF-20-6-25KSXFXEHCXRASX63XX
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
027L2260
Spare part, ICF 25 - 40, Top cover gasket set
027L4791
Spare part, ICFS SS 25 - 40, Stop valve module
027L4794
Spare part, ICFC SS 25 - 40, Check valve module
027L4795
Spare part, ICFF SS 25 - 40, Filter module
027L4798
Spare part, ICM SS 25-A, Motor Module
