027L6525

Part Number: 027L6525
027L6525
Manufacturer
Danfoss
Part number
027L6525
Category

Product Information

Extended Description

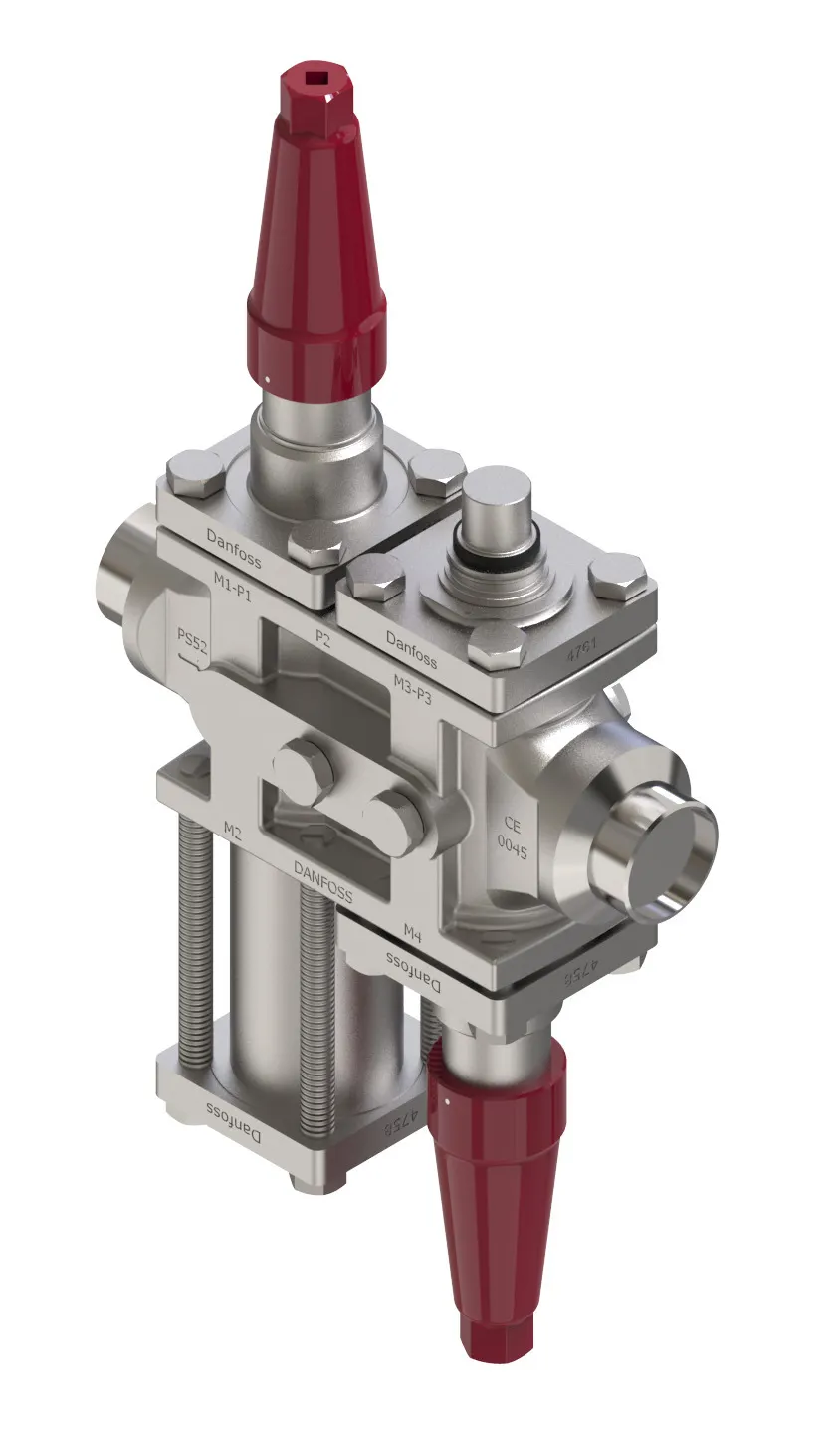

027L6525 Danfoss: Connection size [mm]: 65, Connection type: Butt weld, Body material: Steel, Surface coating: Zn (TLP), Max. Working Pressure [bar]: 52.0, Temperature range [°C]: -60 - 120
Gross weight
49.5 Kilogram
Net weight
33.04 Kilogram
Volume
17.6 Liter
EAN
5702428916851
Approval
C UL US LISTED,CE,EAC,TĂśV,UKCA
Body material
Steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Steel
Connection size [in]
2½ in
Connection size [mm]
65 mm
Connection standard
EN 10220
Connection type
Butt weld
Contain batteries
No
Defrost port connection size
33 X 1.5
Defrost port connection type
M
Defrost port placement
P2-P4
Defrost port quantity [pc]
2 pc
Direction
Straightway
Equipment
Cap/2 x Lifting hooks
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Module 1
Stop valve
Module 1 type
SVA-S 65
Module 3
Control valve
Module 3 type
ICS 65
Module 4
Regulation valve
Module 4 type
REG-SB 65
Packing format
Single pack
PED category
II
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description
Valve station
Quantity per packing format
1 pc
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R507A,R1234yf,R1234ze(E),R125,R227ea,R236fa,R245fa,R32,R407H,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A
Serviceable
ICF spare parts
Side port connection size [in]
3/8 in
Side port connection type
G
Side port placement
P1-P3
Side port quantity [pc]
2 pc
Surface coating
Zn (TLP)
Temperature range [°C] [max]
120 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
248 °F
Temperature range [°F] [min]
-76 °F
Type
ICF 65-3-45S65
Type code ICF
ICF-65-3-65DSXXBG1RBXXXX2NXX
UK RoHS compliance
Out of scope
UL evaluated
Yes
027L2260
Spare part, ICF 25 - 40, Top cover gasket set
027L4791
Spare part, ICFS SS 25 - 40, Stop valve module
027L4794
Spare part, ICFC SS 25 - 40, Check valve module
027L4795
Spare part, ICFF SS 25 - 40, Filter module
027L4798
Spare part, ICM SS 25-A, Motor Module
