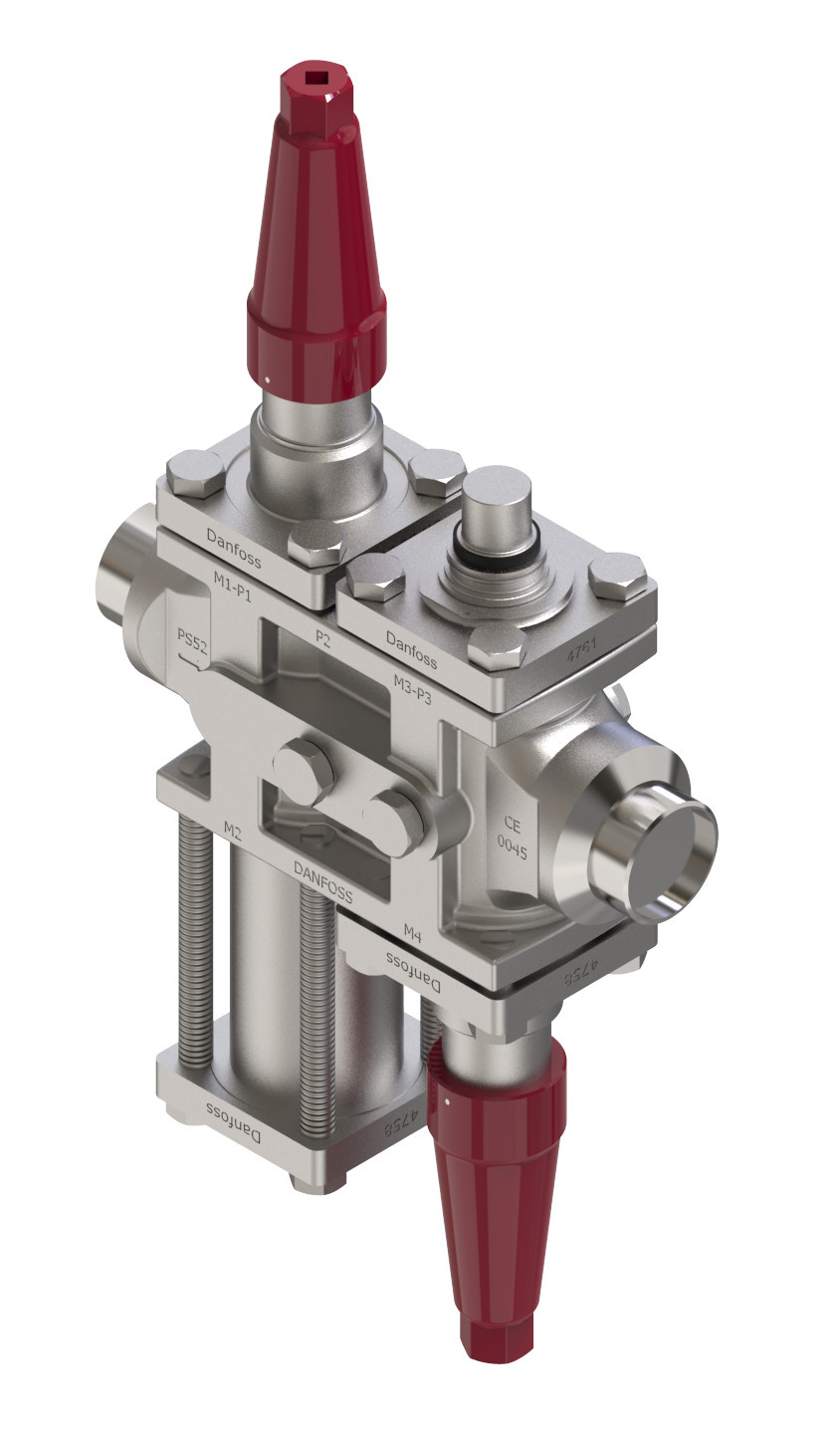

027L6716

Part Number: 027L6716
027L6716
Manufacturer
Danfoss
Part number
027L6716
Category

Product Information

Extended Description

027L6716 Danfoss: Connection size [mm]: 25, Connection type: Butt weld, Body material: Steel, Surface coating: Zn (TLP), Max. Working Pressure [bar]: 52.0, Temperature range [°C]: -60 - 120
Gross weight
17 Gram
Net weight
17 Gram
Volume
35.103 Liter
EAN
5715162495834
Approval
CE,EAC,LLC CDC TYSK,TĂśV,UL
Body material
Steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Steel
Connection size [in]
1 in
Connection size [mm]
25 mm
Connection standard
EN 10220
Connection type
Butt weld
Contain batteries
No
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Module 1
Stop valve
Module 1 type
ICFS 25
Module 2
Filter
Module 2 type
ICFF 25
Module 3
Solenoid valve
Module 3 type
ICFE 25
Module 4
Blank top cover
Module 4 type
ICFB 25
Module 5
Motor valve
Module 5 type
ICM 25B
Module 6
Stop valve
Module 6 type
ICFS25
Packing format
Single pack
PED category
II
Product accessories
ICF accessories
Product description
Control Solution
Product group
Multifunction valves
Product Name Description
Valve station
Quantity per packing format
1 pc
Refrigerants
R1234yf,R1234ze(E),R125,R134a,R22,R227ea,R236fa,R245fa,R32,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R407H,R409A,R410A,R417A,R421A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R507A,R513A,R513B,R515A,R515B,R516A,R717,R744
Serviceable
ICF spare parts
Side port connection size [in]
3/8 in
Side port connection type
G
Side port placement
P2-P4-P5-P7-P9-P10
Side port quantity [pc]
6 pc
Surface coating
Zn (TLP)
Temperature range [°C] [max]
120 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
248 °F
Temperature range [°F] [min]
-76 °F
Type
ICF 25-6-90
Type code ICF
ICF-25-6-25DSXFXEHBXMBSX65XX
UK RoHS compliance
Out of scope
UL approval file name
REFRIGERANT VALVE 53R0
UL evaluated
Yes
027L2260
Spare part, ICF 25 - 40, Top cover gasket set
027L4791
Spare part, ICFS SS 25 - 40, Stop valve module
027L4794
Spare part, ICFC SS 25 - 40, Check valve module
027L4795
Spare part, ICFF SS 25 - 40, Filter module
027L4798
Spare part, ICM SS 25-A, Motor Module
