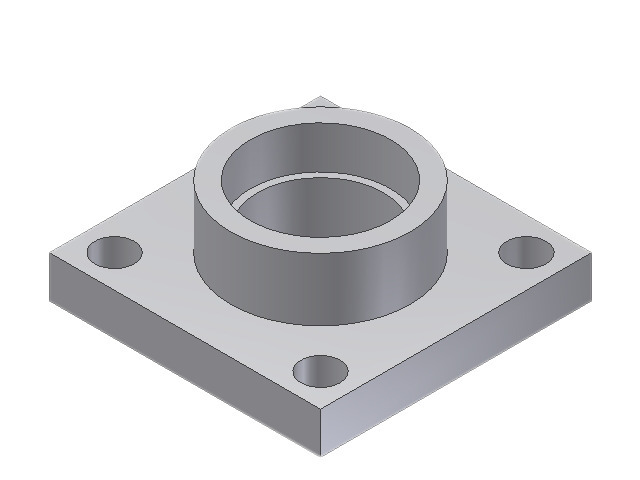

027N1120
Part Number: 027N1120
Product Information
Extended Description
027N1120 Danfoss: Connection standard: EN 10220, Material Spec.: Steel, Used for product: CVM; EVRA 3 - 15; EVR 15; NRVA 15 - 20; TEA 20; TEVA 20; TE 12; CVK; TEAT 20
Gross weight
0.516 Kilogram
Net weight
0.479 Kilogram
Volume
0.313 Liter
EAN
5702422033042
Connection size [in]
3/4 in
Connection size [mm]
20 mm
Connection standard
EN 10220
Connection type
Butt weld
Contain batteries
No
Flange design
Tongue
Flange form
Oval
Flange version
1.3
Material Spec.
Steel
Packing format
Multi pack
Parts included
2 flanges
Product group
Flanges
Product Name Description
Flange set
Quantity per packing format
32 pc
REACH Candidate List substances
No
Refrigerants
R717,R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R152a,R22,R227ea,R236fa,R245fa,R32,R401A,R402A,R404A,R407A,R407C,R407F,R407H,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R507A,R512A,R513A,R513B,R515A,R515B,R516A
Type
Flange
Used for product
CVK,CVM,EVR 15,EVRA 3 - 15,NRVA 15 - 20,TE 12,TEA 20,TEAT 20,TEVA 20
