027N2010
Part Number: 027N2010
Product Information
Extended Description

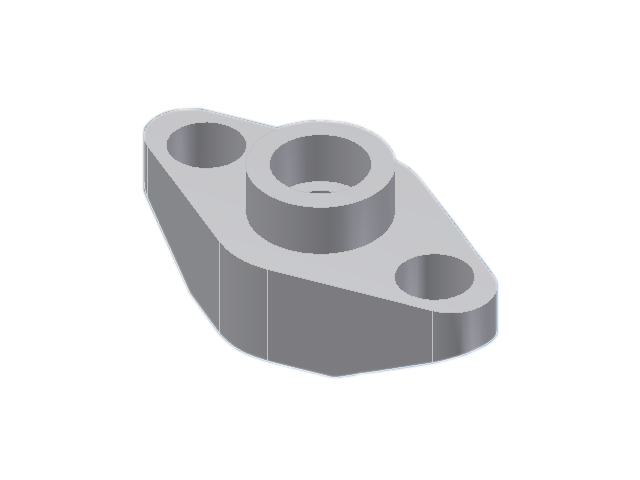

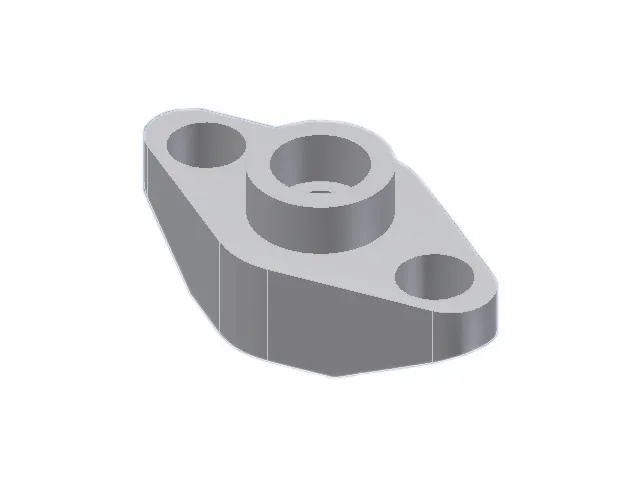

027N2010 Danfoss: Connection standard: ASME B 16.11, Material Spec.: Steel, Used for product: CVMP; EVRA 3 - 15; CVKP; NRVA 15 - 20; CVML; CVK; CVMH; CVM; EVR 15; CVMM; CVMT; CVMO; TEA 20; TEVA 20; TE 12; TEAT 20; CVMQ
Gross weight
0.57 Kilogram
Net weight
0.566 Kilogram
Volume
0.308 Liter
EAN
5702428197007
Connection size [in]
3/8 in
Connection size [mm]
10 mm
Connection standard
ASME B 16.11
Connection type
Socket weld
Contain batteries
No
Flange design
Tongue
Flange form
Oval
Flange version
1.3
Material Spec.
Steel
Packing format
Multi pack
Parts included
2 flanges
Product group
Flanges
Product Name Description
Flange set
Quantity per packing format
16 pc
REACH Candidate List substances
No
Refrigerants
R717,R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R152a,R22,R227ea,R236fa,R245fa,R32,R401A,R402A,R404A,R407A,R407C,R407F,R407H,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R507A,R512A,R513A,R513B,R515A,R515B,R516A
Type
Flange
Used for product
CVK,CVKP,CVM,CVMH,CVML,CVMM,CVMO,CVMP,CVMQ,CVMT,EVR 15,EVRA 3 - 15,NRVA 15 - 20,TE 12,TEA 20,TEAT 20,TEVA 20
