030G6516
Part Number: 030G6516
Product Information
Extended Description

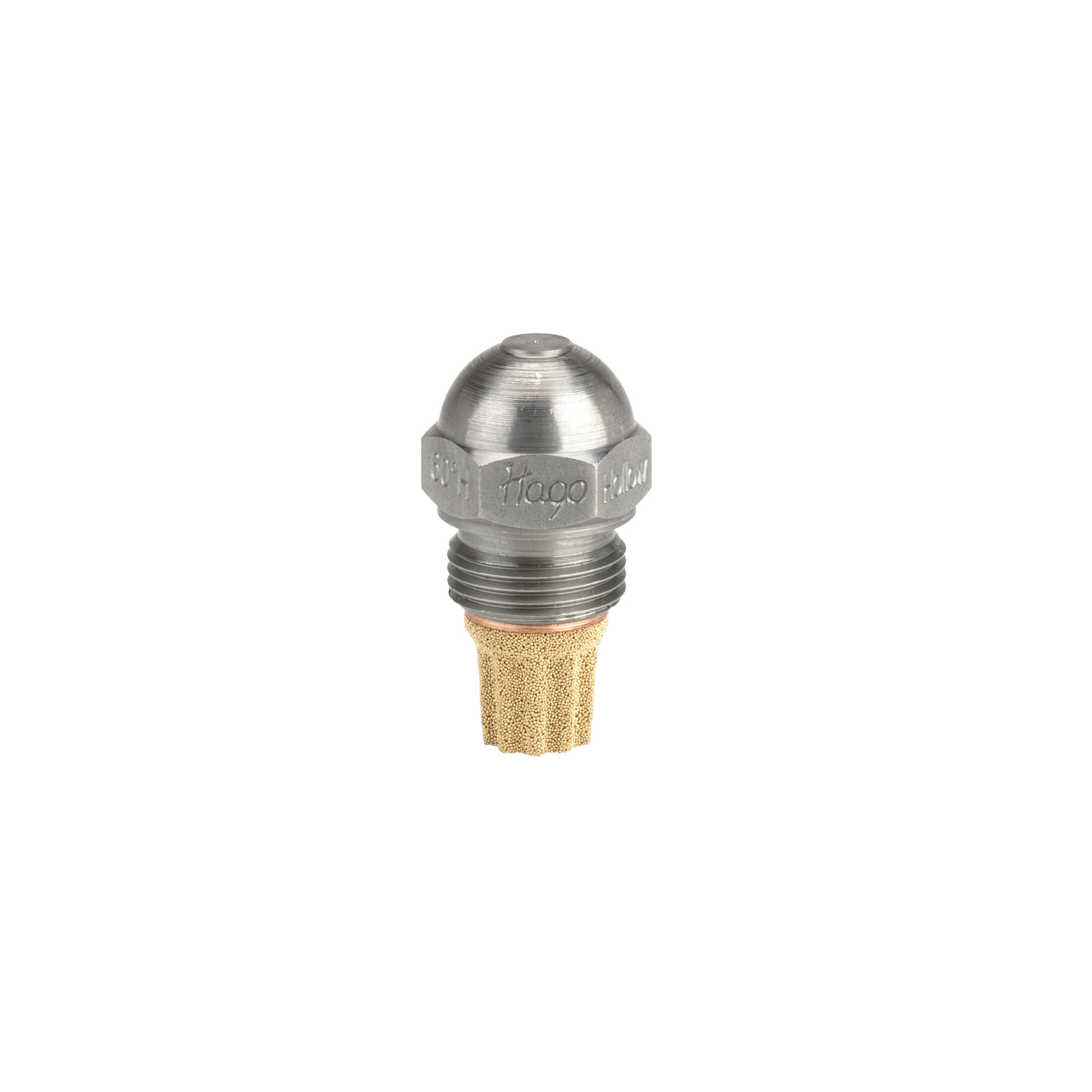

030G6516 Danfoss: NOZZLE 0.75 GPH 80° B
Gross weight
0.029 Kilogram
Net weight
0.025 Kilogram
Volume
0.019 Liter
EAN
5702425193897
Approval
CE,UL
Branded
Hago
Capacity [USgal/h]
0.75 gal/h
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Description
NOZZLE 0.75 GPH 80° B
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Filter grade [µm]
30-40
Filter type
P-Sinter
Material type
Steel
Packing format
Single pack
Product group
Hago Oil Nozzles
Quantity per packing format
12 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
1fa1c365-26e8-430d-8786-bd497f450a81
SCIP dossier product name
Solid Cone - B ES S 0.50-6.00
Specification point
100 psi, 35 SSU, gravity 0.825 @60°F
Spray angle [°]
80 °
Spray pattern
Solid
Type
B-Solid
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18
UL evaluated
Yes
