030H8012
Part Number: 030H8012
Product Information
Extended Description

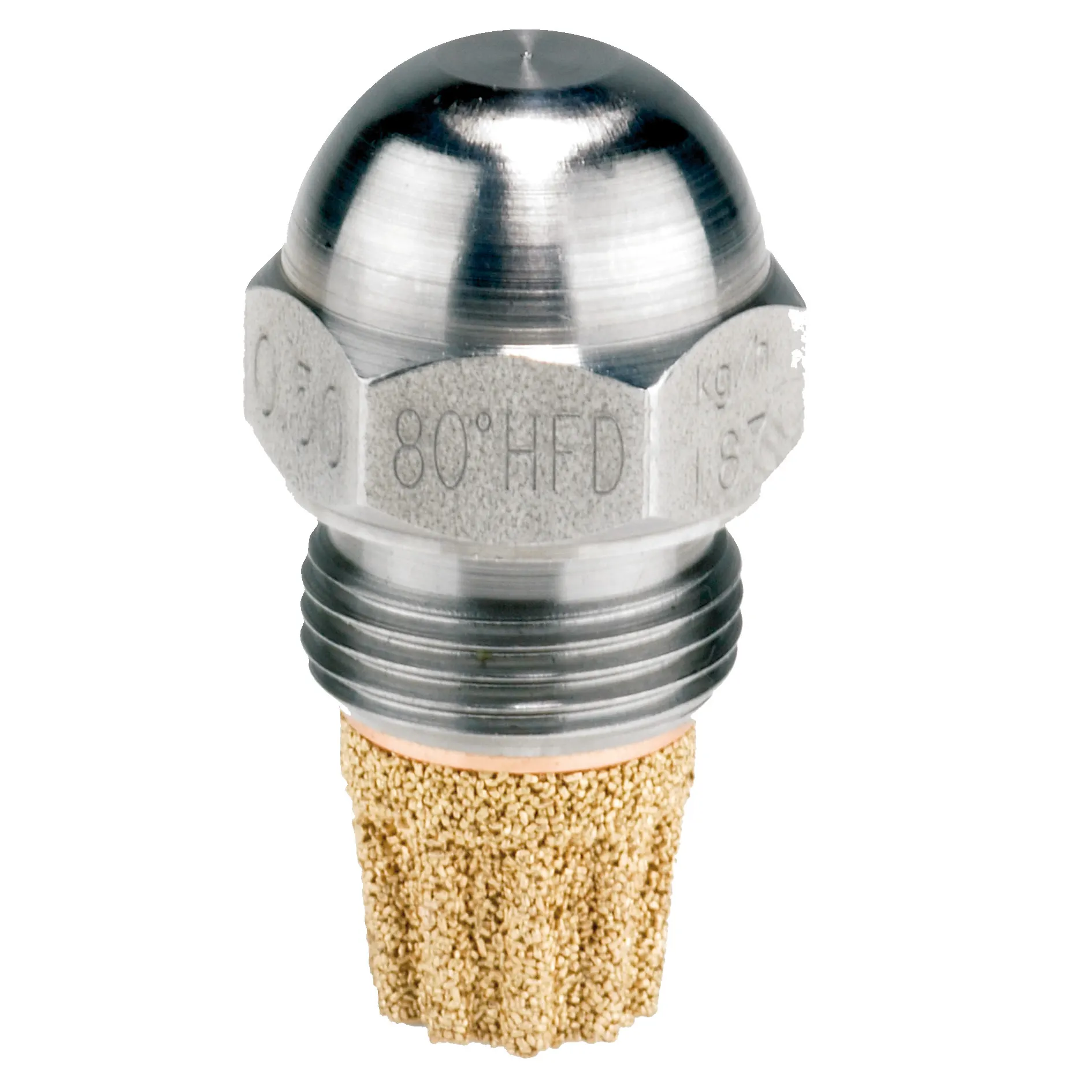

030H8012 Danfoss: 0.60GAL 80HFD
Gross weight
0.03 Kilogram
Net weight
0.025 Kilogram
Volume
0.018 Liter
EAN
5702425063800
Approval
CE
Capacity [kg/h]
2.31 kg/h
Capacity [l/h]
0 L/h
Capacity [USgal/h]
0.6 gal/h
CE evaluated
Yes
CEN
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Description
0.60GAL 80HFD
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Filter grade [µm]
30-40
Filter type
Double filter (sinter)
LE anti-drip valve
No
Material type
Steel
Packing format
Single pack
Product group
Oil Nozzles
Quantity per packing format
12 pc
REACH Candidate List substances
No
Reference point
7 bar, 3.4 cSt, 820 kg/m³
Shape
Round
Specification point
10 bar, 3.4 cSt, 840 kg/m³
Spray angle [°]
80 °
Spray pattern
Hollow
spray pattern marking
HFD
Type
HFD
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Out of scope
030-0522
1/4" BSP, NOZZLE HOLDER
030-0523
1/8" BSP, NOZZLE HOLDER
Oil Nozzles - End User leaflet
Oil nozzles for your service
Practical tips oil nozzle
HFD-HD and SFD-SD Nozzle Datasheet
Oil Nozzles Types HFD/HD and SFD/SD
Soft value overview_Oil Pumps_Controls_Nozzles_PL02
Service Manual Danfoss Burner Components
Soft value overview_Oil Pumps_Controls_Nozzles_PL02
Service Handbook Danfoss Burner Components
Oil Nozzles
HFD 030H8008
