030H8382
Part Number: 030H8382
Product Information
Extended Description

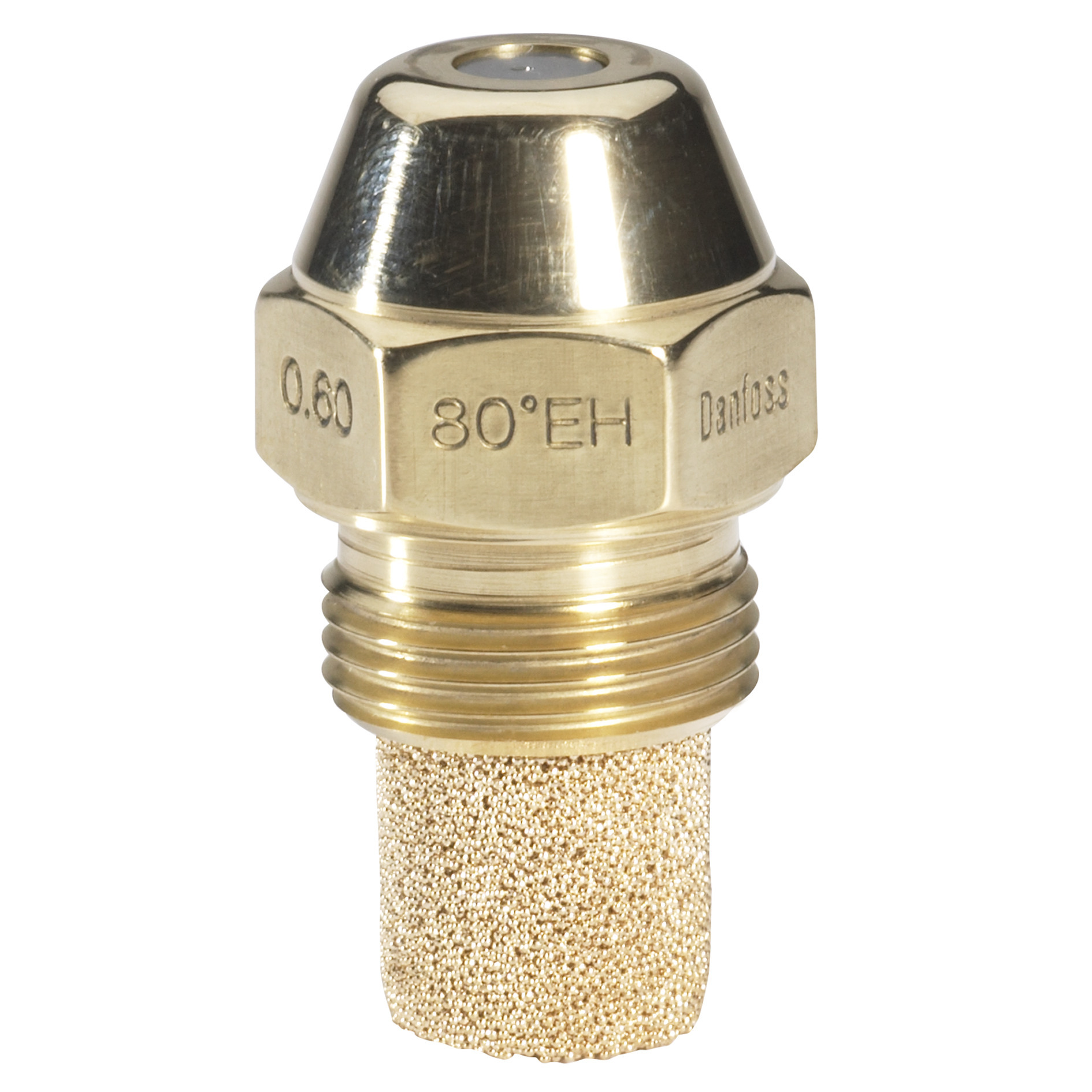

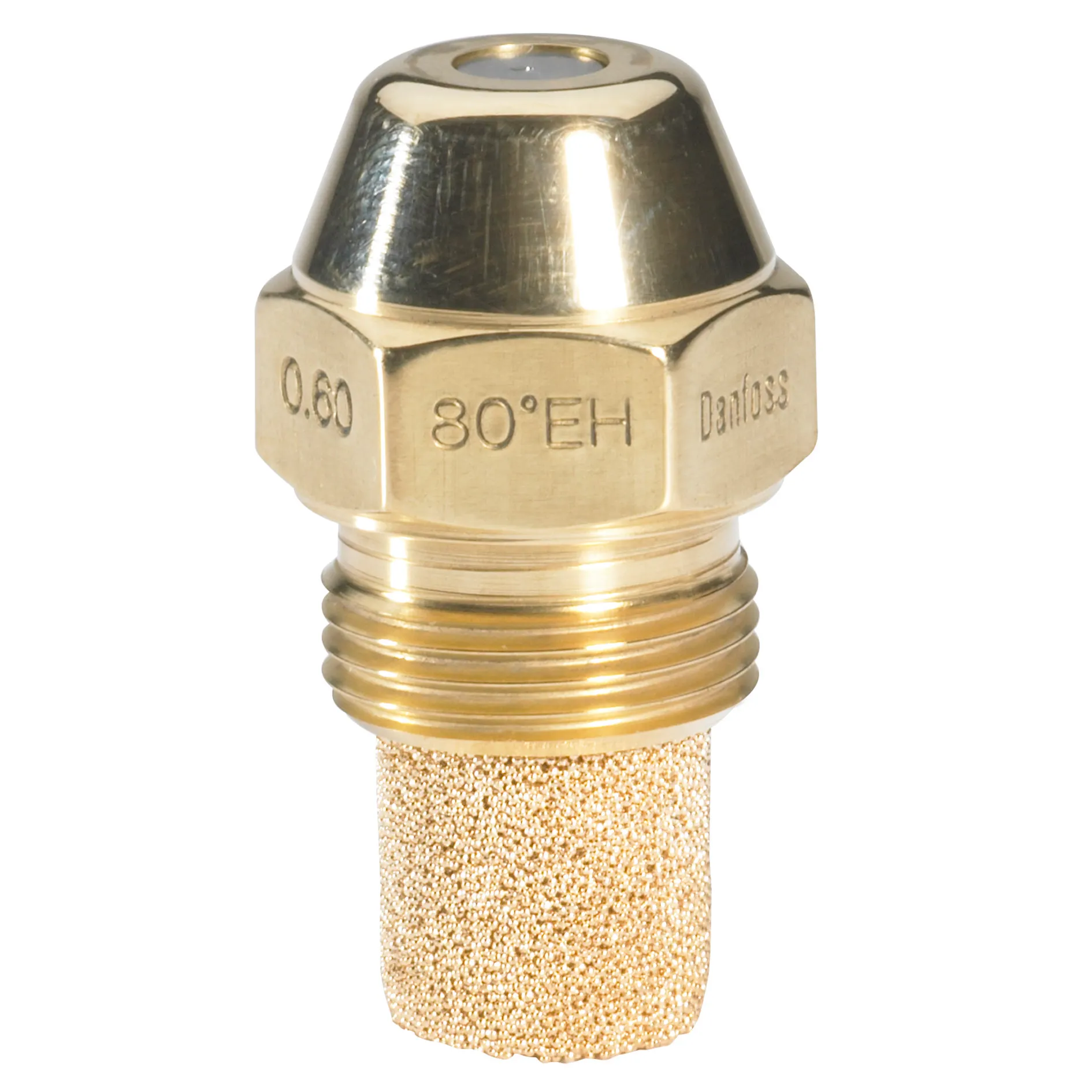

030H8382 Danfoss: 0.60GAL 80EH - 50 PCS. BLISTER
Gross weight
0.032 Kilogram
Net weight
0.031 Kilogram
Volume
0.023 Liter
EAN
5702425049552
Approval
CE
Capacity [kg/h]
1.8 kg/h
Capacity [l/h]
0 L/h
Capacity [USgal/h]
0.6 gal/h
CE evaluated
Yes
CEN
No
China RoHS compliance
Out of scope
Contain batteries
No
Description
0.60GAL 80EH - 50 PCS. BLISTER
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(a)-I,6(c)
Filter grade [µm]
45
Filter type
Sinter
LE anti-drip valve
No
Packing format
Industrial pack
Product group
Oil Nozzles
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reference point
7 bar, 3.4 cSt, 820 kg/mÂł
SCIP dossier no.
1d4ab911-3ddb-4e2e-8c8f-66a36f770d00
SCIP dossier product name
30 HFE OEM - Nozzle 0.40-0.60 gph
Shape
Conical
Specification point
8.0 bar, 1.65 cSt, 790 kg/mÂł
Spray angle [°]
80 °
Spray pattern
Hollow
spray pattern marking
EH
Type
EH
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Out of scope
030-0522
1/4" BSP, NOZZLE HOLDER
030-0523
1/8" BSP, NOZZLE HOLDER
Oil Nozzles - End User leaflet
Oil nozzles for your service
Oil Nozzle Type EH/ES
Soft value overview_Oil Pumps_Controls_Nozzles_PL02
Service Manual Danfoss Burner Components
Soft value overview_Oil Pumps_Controls_Nozzles_PL02
Service Handbook Danfoss Burner Components
Oil Nozzles
Danfoss MD 030EHES.01
EH 030H8312
