030H8704
Part Number: 030H8704
Product Information
Extended Description

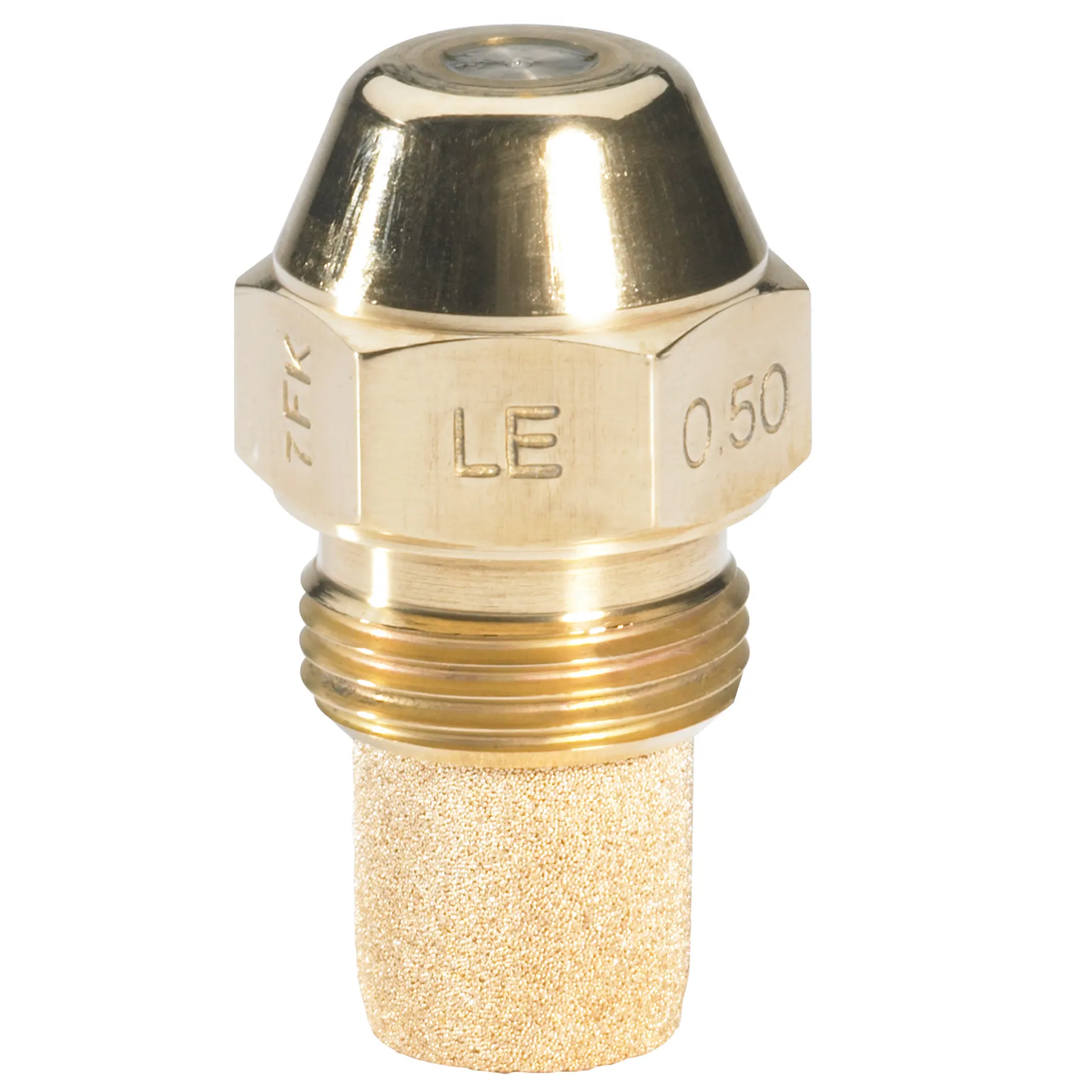

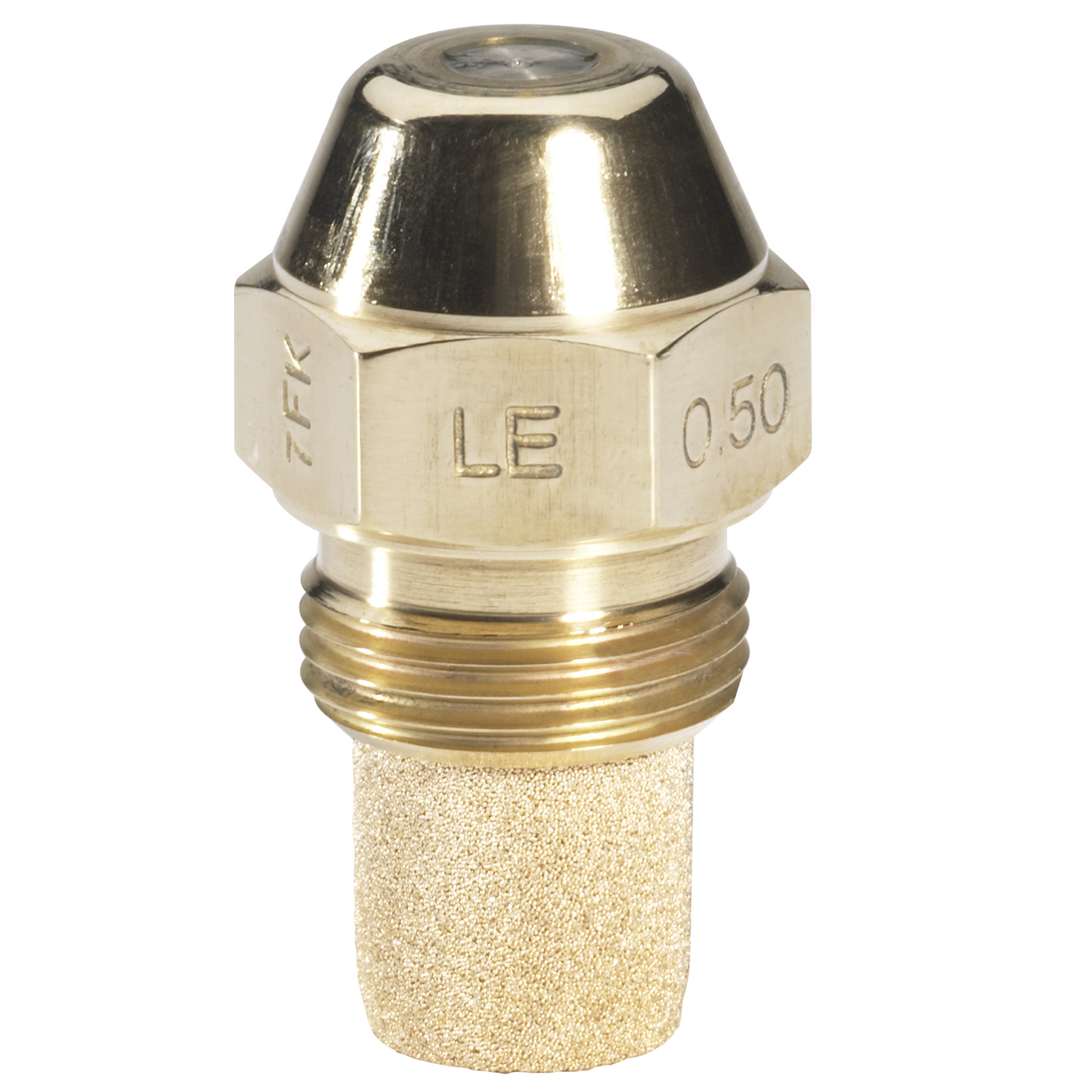

030H8704 Danfoss: 0.40GAL 80H LE
Gross weight
0.036 Kilogram
Net weight
0.034 Kilogram
Volume
0.026 Liter
EAN
5702425017513
Approval
CE
Capacity [kg/h]
1.46 kg/h
Capacity [l/h]
0 L/h
Capacity [USgal/h]
0.4 gal/h
CE evaluated
Yes
CEN
No
China RoHS compliance
Out of scope
Contain batteries
No
Description
0.40GAL 80H LE
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(a)-I,6(c)
Filter grade [µm]
30
Filter type
Sinter
LE anti-drip valve
Yes
Material type
Brass
Packing format
Industrial pack
Product group
Oil Nozzles
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reference point
7 bar, 3.4 cSt, 820 kg/mÂł
SCIP dossier no.
2e5b5d5c-a225-4f44-9a73-5b44abae4fe7
SCIP dossier product name
LE Nozzles 0.40-1.75 gph
Shape
Conical
Specification point
11.6 bar, 3.4 cSt, 840 kg/mÂł
Spray angle [°]
80 °
Spray pattern
Hollow
spray pattern marking
H
Type
LE
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Out of scope
030-0522
1/4" BSP, NOZZLE HOLDER
030-0523
1/8" BSP, NOZZLE HOLDER
