030H8868
Part Number: 030H8868
Product Information
Extended Description

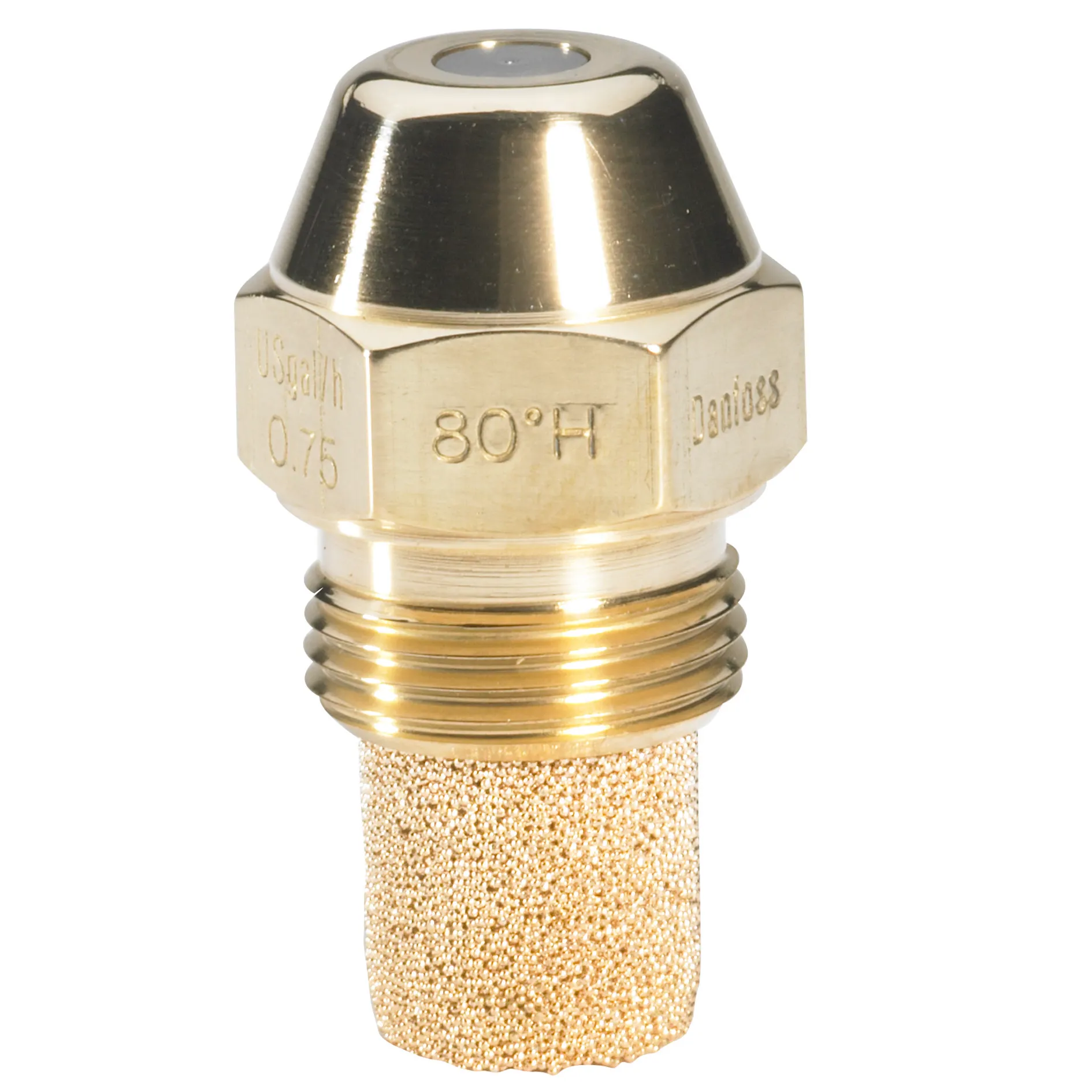

030H8868 Danfoss: 0.85GAL 80H CEN - 50 PCS. BLISTER
Gross weight
0.031 Kilogram
Net weight
0.03 Kilogram
Volume
0.023 Liter
EAN
5702425049644
Approval
CE
Capacity [kg/h]
3.31 kg/h
Capacity [l/h]
0 L/h
Capacity [USgal/h]
0.85 gal/h
CE evaluated
Yes
CEN
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Description
0.85GAL 80H CEN - 50 PCS. BLISTER
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(a)-I,6(c)
Filter grade [µm]
45
Filter type
Sinter
LE anti-drip valve
No
Packing format
Industrial pack
Product group
Oil Nozzles
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reference point
7 bar, 3.4 cSt, 820 kg/m³
SCIP dossier no.
6725389d-11e0-40d3-bb67-825b8ae390a8
SCIP dossier product name
30 H F OEM - Nozzle 0.65-5.00 gph
Shape
Conical
Specification point
10 bar, 3.4 cSt, 840 kg/m³
Spray angle [°]
80 °
Spray pattern
Hollow
spray pattern marking
H
Type
OD H
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Out of scope
030-0072
SINTERED FILTER 45UM (50 PCS PACK)
030-0522
1/4" BSP, NOZZLE HOLDER
030-0523
1/8" BSP, NOZZLE HOLDER
