030H8922
Part Number: 030H8922
Product Information
Extended Description

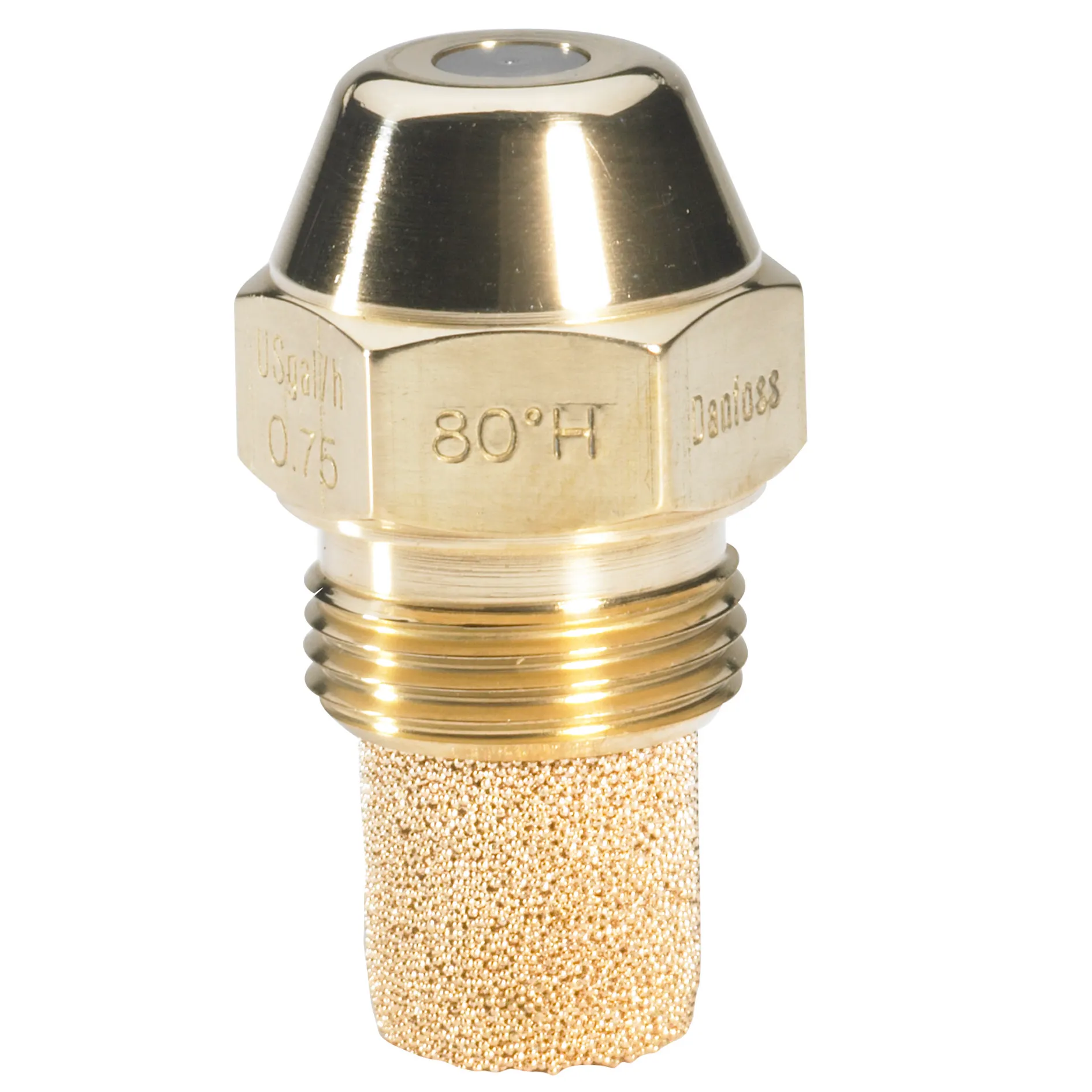

030H8922 Danfoss: 1.10GAL 80H CEN
Gross weight
0.033 Kilogram
Net weight
0.032 Kilogram
Volume
0.025 Liter
EAN
5702425017193
Approval
CE
Capacity [kg/h]
4.24 kg/h
Capacity [l/h]
0 L/h
Capacity [USgal/h]
1.1 gal/h
CE evaluated
Yes
CEN
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Description
1.10GAL 80H CEN
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(a)-I,6(c)
Filter grade [µm]
75
Filter type
Sinter
LE anti-drip valve
No
Material type
Brass
Packing format
Industrial pack
Product group
Oil Nozzles
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reference point
7 bar, 3.4 cSt, 820 kg/m³
SCIP dossier no.
a7055499-33bd-49e7-a364-0e169ee15b9d
SCIP dossier product name
30 H F - Nozzle 0.00-6.00 gph
Shape
Conical
Specification point
10 bar, 3.4 cSt, 840 kg/m³
Spray angle [°]
80 °
Spray pattern
Hollow
spray pattern marking
H
Type
OD H
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Out of scope
030-0073
SINTERED FILTER 75 µM (50 PCS PACK)
030-0522
1/4" BSP, NOZZLE HOLDER
030-0523
1/8" BSP, NOZZLE HOLDER
