030H9903
Part Number: 030H9903
Product Information
Extended Description

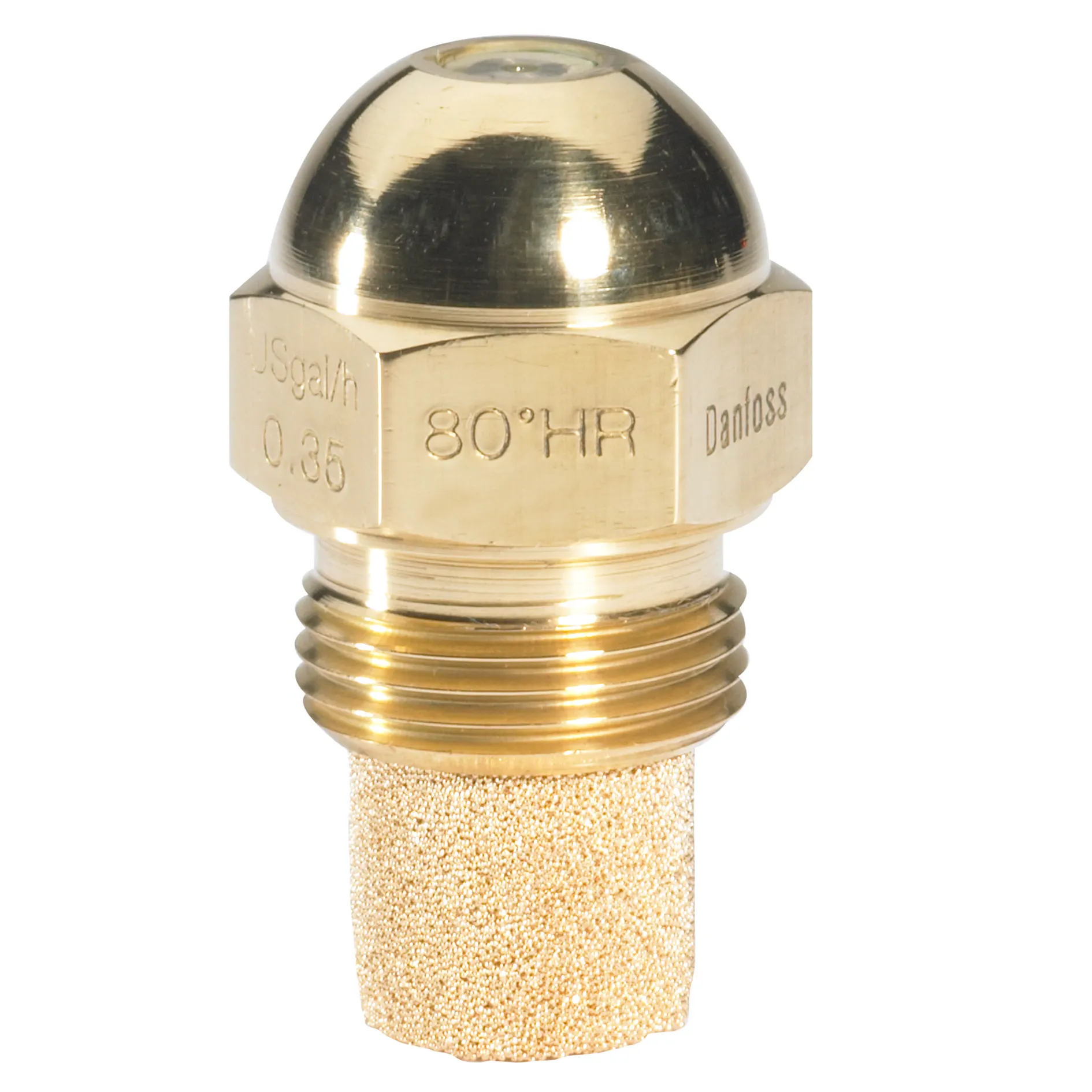

030H9903 Danfoss: 0.35GAL 80HR OD
Gross weight
0.034 Kilogram
Net weight
0.034 Kilogram
Volume
0.024 Liter
EAN
5702425045400
Approval
CE
Capacity [kg/h]
1.35 kg/h
Capacity [l/h]
0 L/h
Capacity [USgal/h]
0.35 gal/h
CE evaluated
Yes
CEN
No
China RoHS compliance
Out of scope
Contain batteries
No
Description
0.35GAL 80HR OD
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(a)-I,6(c)
Filter grade [µm]
45
Filter type
Sinter
LE anti-drip valve
No
Material type
Brass
Packing format
Industrial pack
Product group
Oil Nozzles
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reference point
7 bar, 3.4 cSt, 820 kg/m³
SCIP dossier no.
aee35f8c-910d-4bb2-be2d-092ba1a38cdc
SCIP dossier product name
OD-HR/SR Nozzle
Shape
Round
Specification point
10 bar, 3.4 cSt, 840 kg/m³
Spray angle [°]
80 °
Spray pattern
Hollow
spray pattern marking
HR
Type
HR
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Out of scope
030-0522
1/4" BSP, NOZZLE HOLDER
030-0523
1/8" BSP, NOZZLE HOLDER
