030L5070
Part Number: 030L5070
Product Information
Extended Description

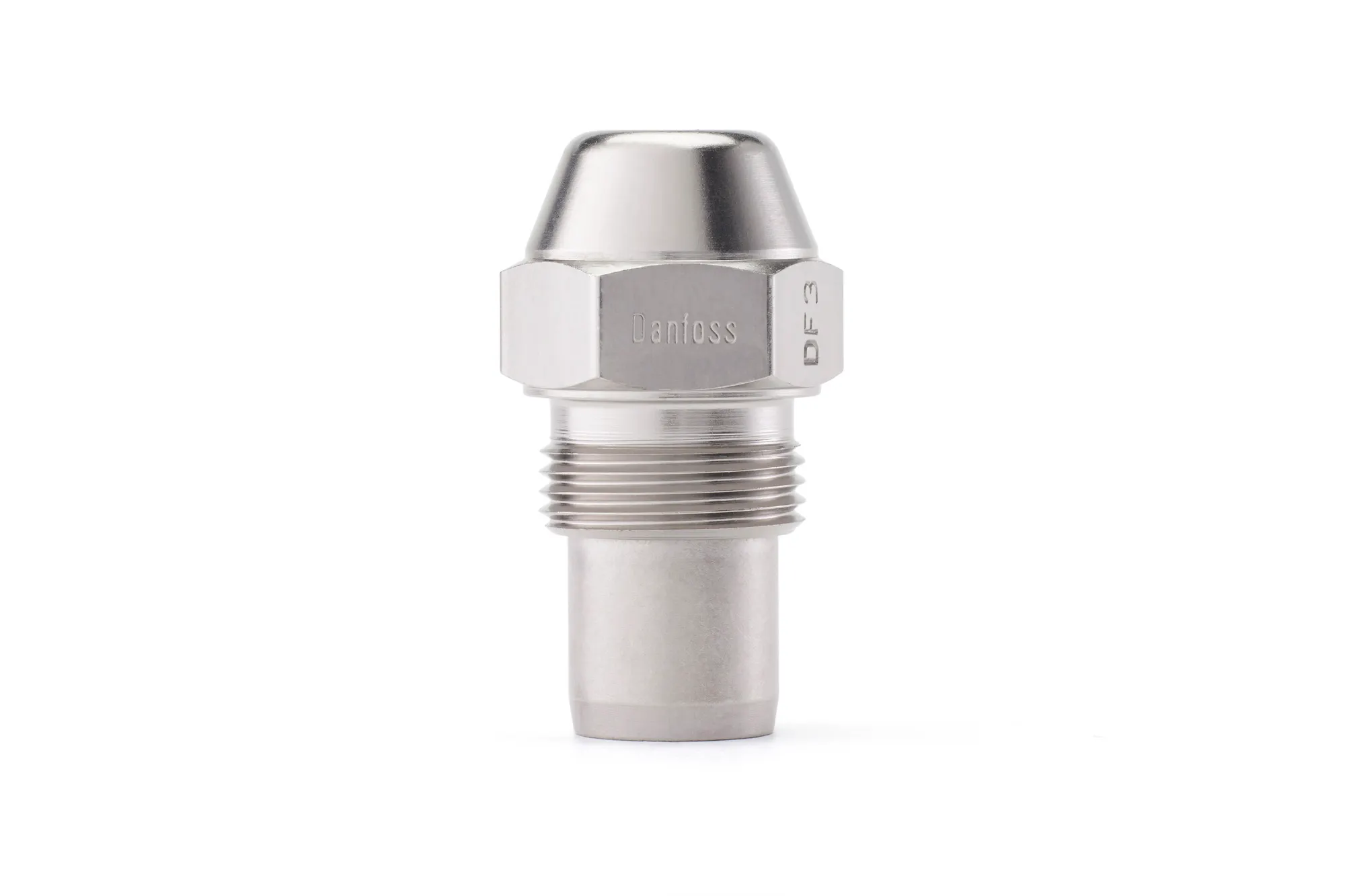

030L5070 Danfoss: HX-AD 0.65 gph 80°H
Gross weight
0.033 Kilogram
Net weight
0.031 Kilogram
Volume
0.023 Liter
EAN
5702424657079
Approval
CE
Capacity [l/h]
2.14 L/h
CE evaluated
Yes
CEN
No
China RoHS compliance
Out of scope
Contain batteries
No
Description
HX-AD 0.65 gph 80°H
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(a)-I,6(c)
Filter type
None
LE anti-drip valve
Yes
Material type
SnNi coated brass
Packing format
Industrial pack
Product group
Water nozzles
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reference point
10 bar tap water
SCIP dossier no.
fa172e74-ba00-4b97-8fcd-43f84e681ec1
SCIP dossier product name
HX-AD nozzles
Shape
Conical
Spray angle [°]
80 °
Spray pattern
Hollow
spray pattern marking
H
Thread
9/16-24 UNEF
Type
HX-AD
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18,13
UL evaluated
Out of scope
