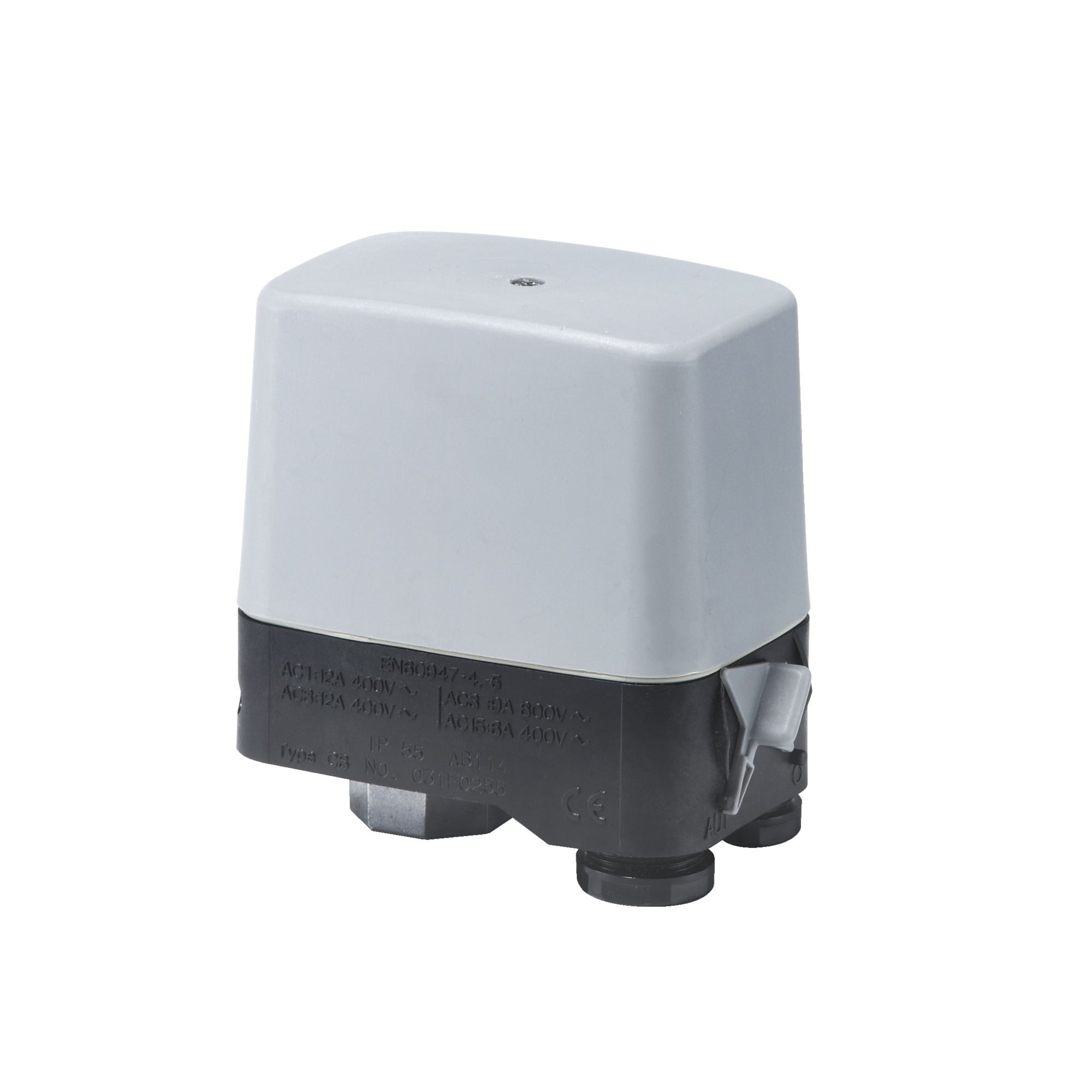

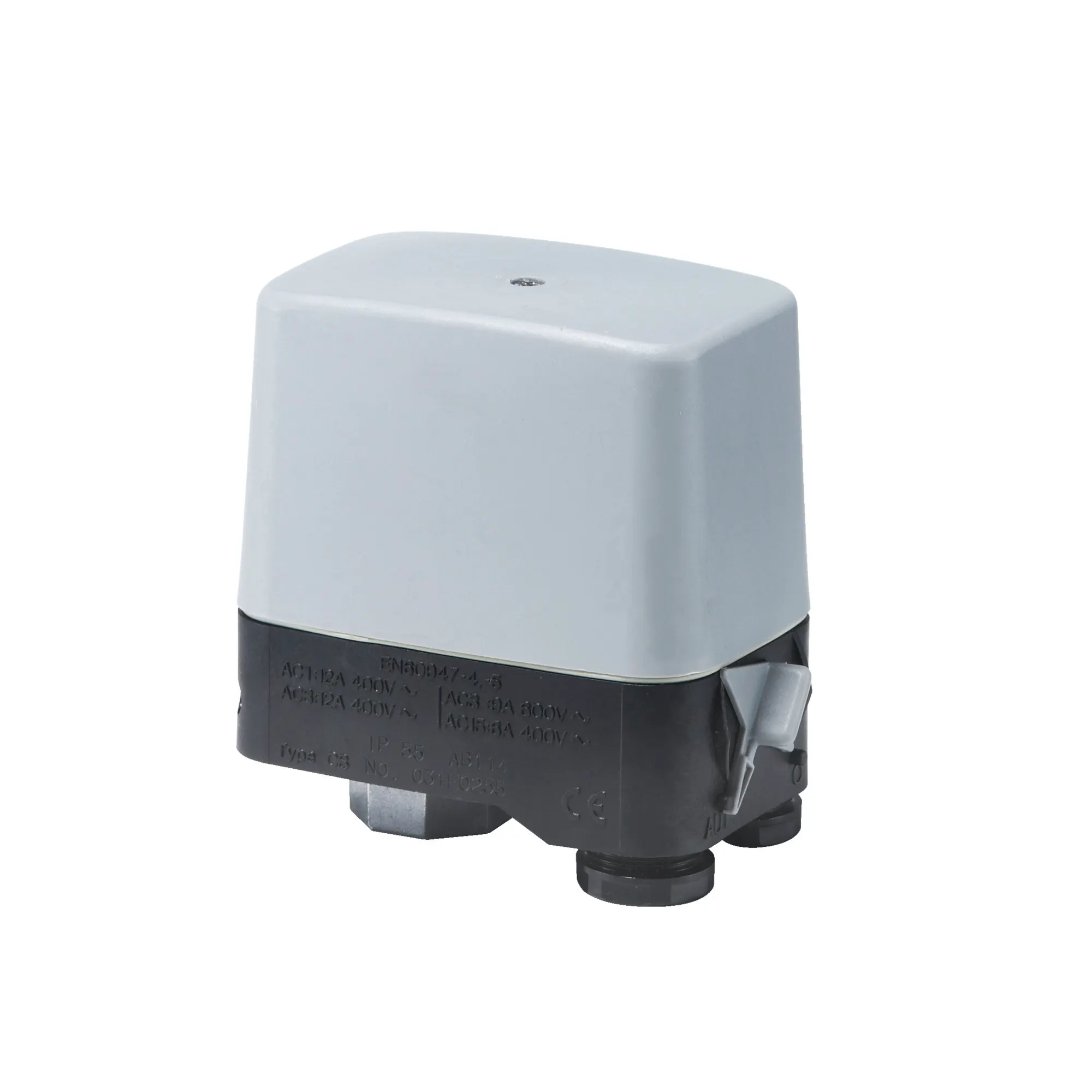

031E020066
Part Number: 031E020066
Product Information
Extended Description
031E020066 Danfoss: Regulation range [bar] Pe: 2.00 - 6.00, Contact function: TPST, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Pressure Male/Female: Female, Enclosure rating IP: IP43, Max. Working Pressure [bar]: 6.0
Gross weight
0.518 Kilogram
Net weight
0.45 Kilogram
Volume
1.219 Liter
EAN
5702423208845
Ambient temperature range [=C2=B0C] [max]
70 =C2=B0C
Ambient temperature range [=C2=B0C] [min]
-20 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
158 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
-4 =C2=B0F
Approval
CE,EAC,LLC CDC EURO-TYSK,LVD,RoHS,TYSK
CE evaluated
Yes
China RoHS compliance
Out of scope
Contact function
TPST
Contact rating
AC3=3D12 A, 220 - 415 V,AC3=3D9 A, 600 V,DC13=3D2 A, 220 V,DC14=3D2 A, 220 V
Contain batteries
No
Diff.@Max. range setting [bar] [max]
2 bar
Diff.@Max. range setting [bar] [min]
1 bar
Diff.@Min. range setting [bar] [max]
1 bar
Diff.@Min. range setting [bar] [min]
0.72 bar
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
Pg 16
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
Enclosure rating IP
IP43
EU RoHS compliance
Yes
EU RoHS exemption clause
No
In scope of WEEE
Yes
Max. test pressure [bar] Pe
10 bar
Max. test pressure [psig]
145 psig
Max. Working Pressure [bar]
6 bar
Max. Working Pressure [psig]
87 psig
Packing format
Multi pack
Pressure connection size
1/4
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Female
Pressure sensing element
Diaphragm
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
30 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]
6 bar
Regulation range [bar] Pe [min]
2 bar
Regulation range [psig] Pe [max]
87 psig
Regulation range [psig] Pe [min]
29 psig
Reset function
Auto
SCIP dossier no.
d7fe15ef-cc24-4df6-b350-987ccb4862bf
Serviceable
No
Type
CS
UK RoHS compliance
Yes
