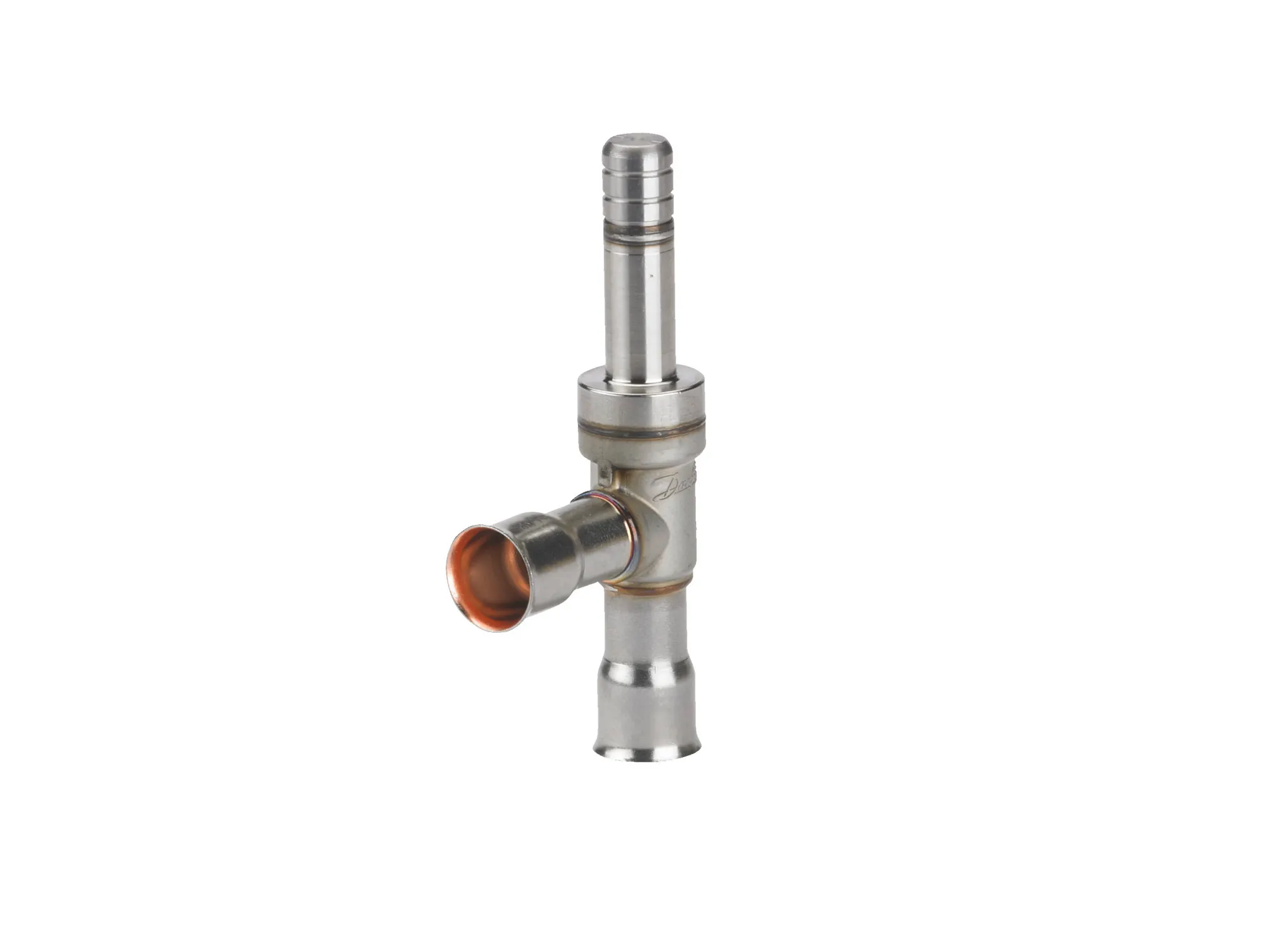

032F9522

Part Number: 032F9522
032F9522
Manufacturer
Danfoss
Part number
032F9522
Category

Product Information

Extended Description

032F9522 Danfoss: Body material: Stainless steel, Kv value [m=C2=B3/h]: 0.900, Packing format: Multi pack
Gross weight
0.101 Kilogram
Net weight
0.09 Kilogram
Volume
0.848 Liter
EAN
5702428995177
Actuator system [mm]
9 mm
Ambient temperature
-40 - Coil dependent
Approval
EAC,LLC CDC TYSK,UR
Body material
Stainless steel
China RoHS compliance
Yes exceed limitations
Coil
No
Contain batteries
No
Cv value [gal/min]
1.04 gal/min
Direction
Angleway
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Function
NC
Inlet connection type
Solder, ODF
Inlet size [mm]
12 mm
Kv value [m=C2=B3/h]
0.9 m=C2=B3/h
Lubricants compatibility
AB,MO,PAG,PAO,POE,PVE
Manual operation option
No
Max. Working Pressure [bar]
90 bar
Max. Working Pressure [psig]
1305 psig
Medium temp. range note
Defrost max. 130=C2=BAC/265=C2=BAF
Medium temperature range [=C2=B0C] [max]
105 =C2=B0C
Medium temperature range [=C2=B0C] [min]
-40 =C2=B0C
Medium temperature range [=C2=B0F] [max]
221 =C2=B0F
Medium temperature range [=C2=B0F] [min]
-40 =C2=B0F
MinODP [bar]
0.02 bar
MOPD[bar/psi]
Coil Dependent
Outlet connection type
Solder, ODF
Outlet size [mm]
12 mm
Packing format
Multi pack
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
16 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R1270,R134a,R22/R407C,R23,R290,R32,R404A/R507A,R407A,R407F,R407H,R410A,R422B,R422D,R438A,R444B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R513B,R515A,R515B,R516A,R600,R600a,R744
SCIP dossier no.
850a5e3e-abe8-4821-a4ed-92e9c0410196
SCIP dossier product name
EVUL
Serviceable
No
Type
EVUL 8
Type designation
Solenoid valve, Solder
UK RoHS compliance
Out of scope
UL approved refrigerants
R1233zd(E),R134a,R22,R23,R404A,R407A,R407C,R407F,R407H,R410A,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R463A,R507A,R513A,R513B,R515A,R515B,R516A,R744,R1234yf,R1234ze(E),R1270,R290,R32,R444B,R452B,R454A,R454B,R454C,R455A,R600,R600a
Solenoid valves Type EVUL Solenoid valve, types EVUL 1 - EVUL 8, EVU 1 - EVU 8, EVUB, and EVUF Danfoss EU-UK 033F0688.AJ Danfoss MD 032F9268.AC Danfoss MD 033F0687.AH Danfoss MD 033F0695.AA Danfoss MD 033F1035.AQ UL MH7648 EVUL 8, code no. 032F8211, 1/2 in. conn. EVUL 4 Solenoid valve, EVUL 4 Solenoid valve,12mm ODF I-pack 40
