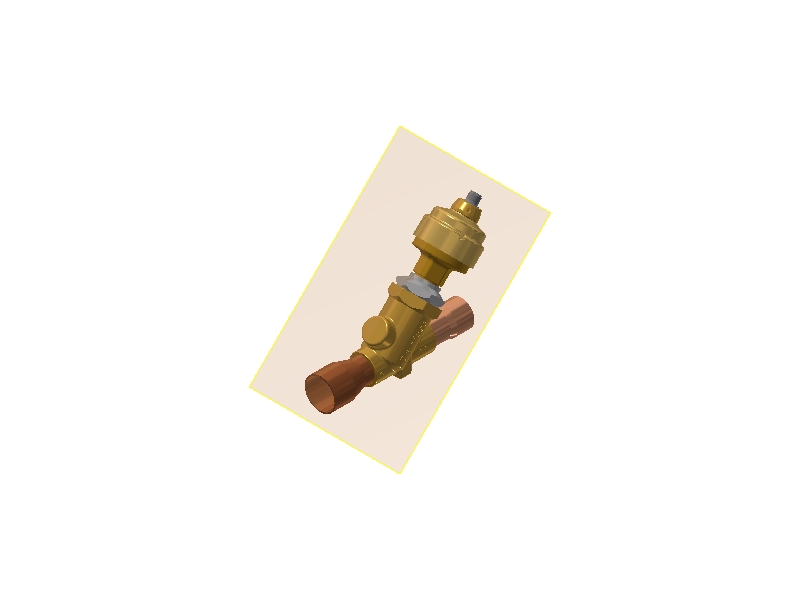

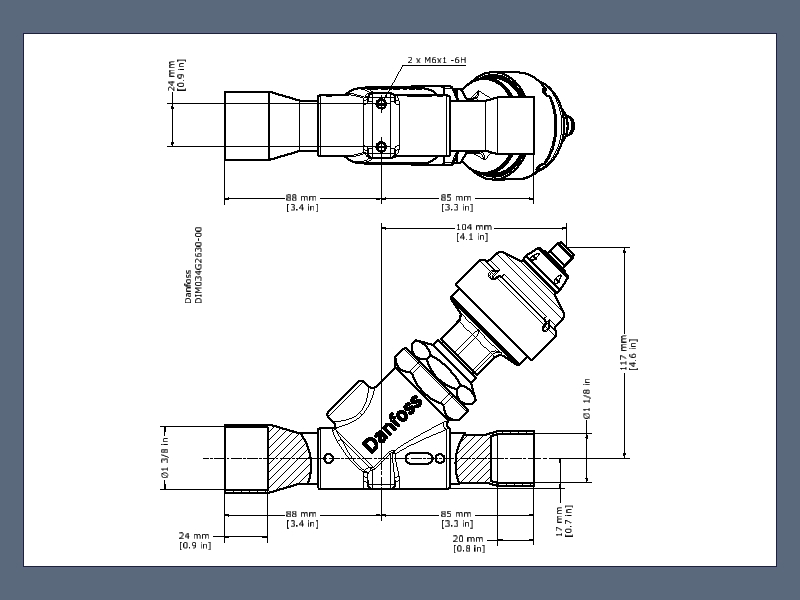

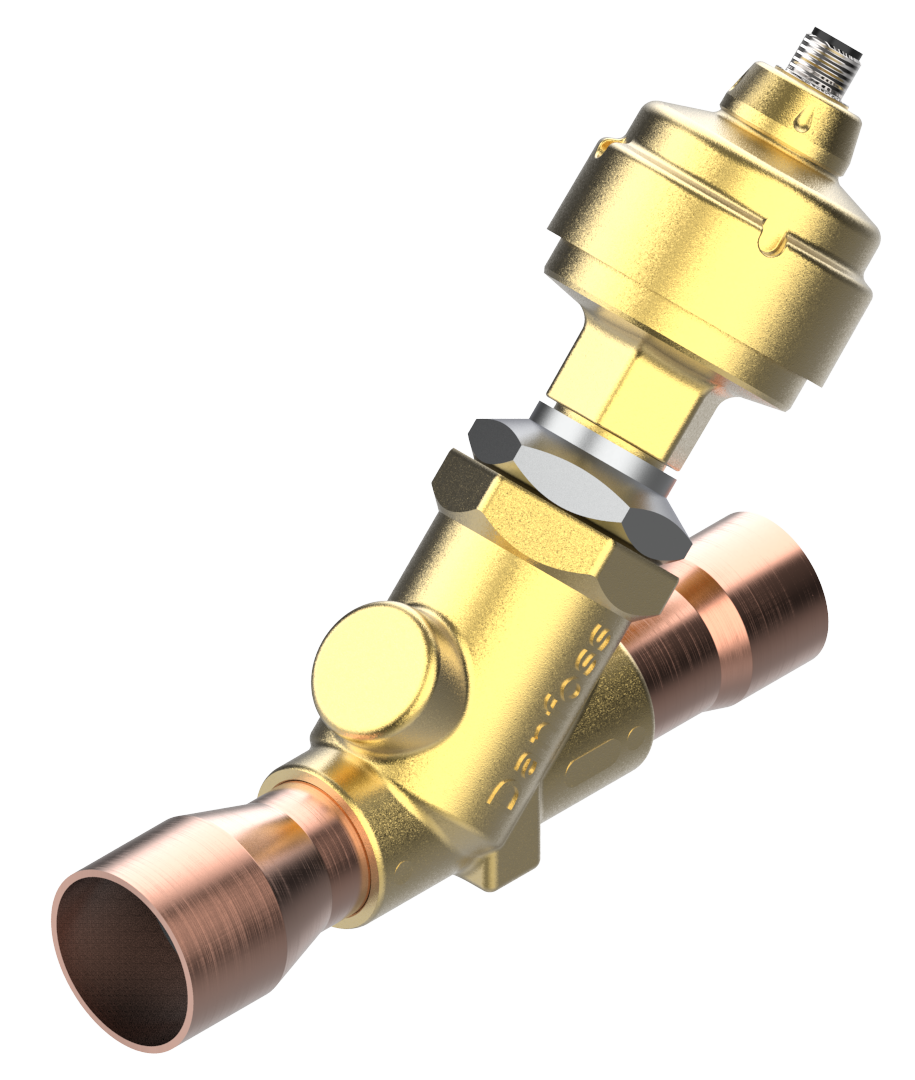

034G2630
Part Number: 034G2630
Product Information
Extended Description
034G2630 Danfoss: Inlet connection type: Solder ODF, Outlet connection type: Solder ODF, Max. Working Pressure [bar]: 34.0, Inlet size [in]: 1 3/8 in, Outlet size [in]: 1 3/8 in
Gross weight
2.197 Kilogram
Net weight
1.69 Kilogram
Volume
12.708 Liter
EAN
5702424067984
Ambient temperature range [=C2=B0C] [max]
60 =C2=B0C
Ambient temperature range [=C2=B0C] [min]
-40 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
140 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
-40 =C2=B0F
Approval
CE,EAC,LLC CDC TYSK,UKCA
Balanced port [Yes/No]
Yes
CE evaluated
Yes
China RoHS compliance
Out of scope
Compatible Danfoss controllers
EKE 1A,EKE 1B,EKE 1C
Connection material
Copper
Contain batteries
No
Direction
Straightway
Electrical conn. Male/Female
Male
Electrical connection
M12
Electrical connection size
4 pin
Enclosure rating IP
IP67
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Bi-flow
Fluid Group
2
Full travel time speed [s] [max]
25.4 s
Full travel time speed [s] [min]
12.7 s
Inlet connection type
Solder ODF
Inlet size [in]
1 3/8 in
Lubricants compatibility
Oilfree applications
Manual operation option
AST-G service driver
Max allowed duty cycle [%]
100 %
Max tot PowerCons CurrDrive[W]
1.3 W
Max tot PowerCons VoltDrive[W]
5.5 W
Max. Working Pressure [bar]
34 bar
Max. Working Pressure [psig]
493 psig
MaxOPD [bar]
33 bar
MaxOPD [psi]
478.6 psi
MaxOPD reverse [bar]
10 bar
MaxOPD reverse [psi]
145 psi
Motor type
Bi-polar
Outlet connection type
Solder ODF
Outlet size [in]
1 3/8 in
Packing format
Single pack
PED category
I
Phase current (peak) [mA]
141 mA
Phase current (RMS) [mA]
100 mA
Phase inductance [=C2=B5H]
85000 =CE=BCH
Product accessories
Stepper valve accessories
Product group
Press. and temp. regul. valves
Product Name Description
Electric regulating valve
Quantity per packing format
1 pc
Rated cap. cond. note
Full stroke open, normal flow
Rated cap. conditions [IMP]
tcond=3D90 =C2=B0F,tevap=3D40 =C2=B0F,tliq=3D82 =C2=B0F
Rated cap. conditions [SI]
tcond=3D32 =C2=B0C,tevap=3D5 =C2=B0C,tliq=3D28 =C2=B0C
Rated cap. R404A/R507A [kW]
828 kW
Rated cap. R404A/R507A [TR]
239 TR
Rated capacity R134a [kW]
874 kW
Rated capacity R134a [TR]
252 TR
Rated capacity R22 [kW]
1106 kW
Rated capacity R22 [TR]
319 TR
Rated capacity R407C [kW]
1212 kW
Rated capacity R407C [TR]
349 TR
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant temperature [=C2=BAC] [max]
95 =C2=B0C
Refrigerant temperature [=C2=BAC] [min]
-40 =C2=B0C
Refrigerant temperature [=C2=BAF] [max]
203 =C2=B0F
Refrigerant temperature [=C2=BAF] [min]
-40 =C2=B0F
Refrigerants
R1234ze(E),R134a,R22,R404A,R407A,R407C,R407F,R410A,R422B,R422D,R438A,R448A,R449A,R450A,R452A,R507A,R513A
Resistance [kOhm]
0.1 kOhm
SCIP dossier no.
b48f5443-ed03-4d88-8763-170e0af1b5c0
SCIP dossier product name
ETS 250-800/KVS 42
Serviceable
Stepper valve spare parts
Sightglass
No
Step mode
2-phase full step
Total steps
3810 (full steps)
Type
KVS 42
UK RoHS compliance
Yes with exemptions
Voltage [V] DC [max]
13.8 V
Voltage [V] DC [min]
11.5 V
