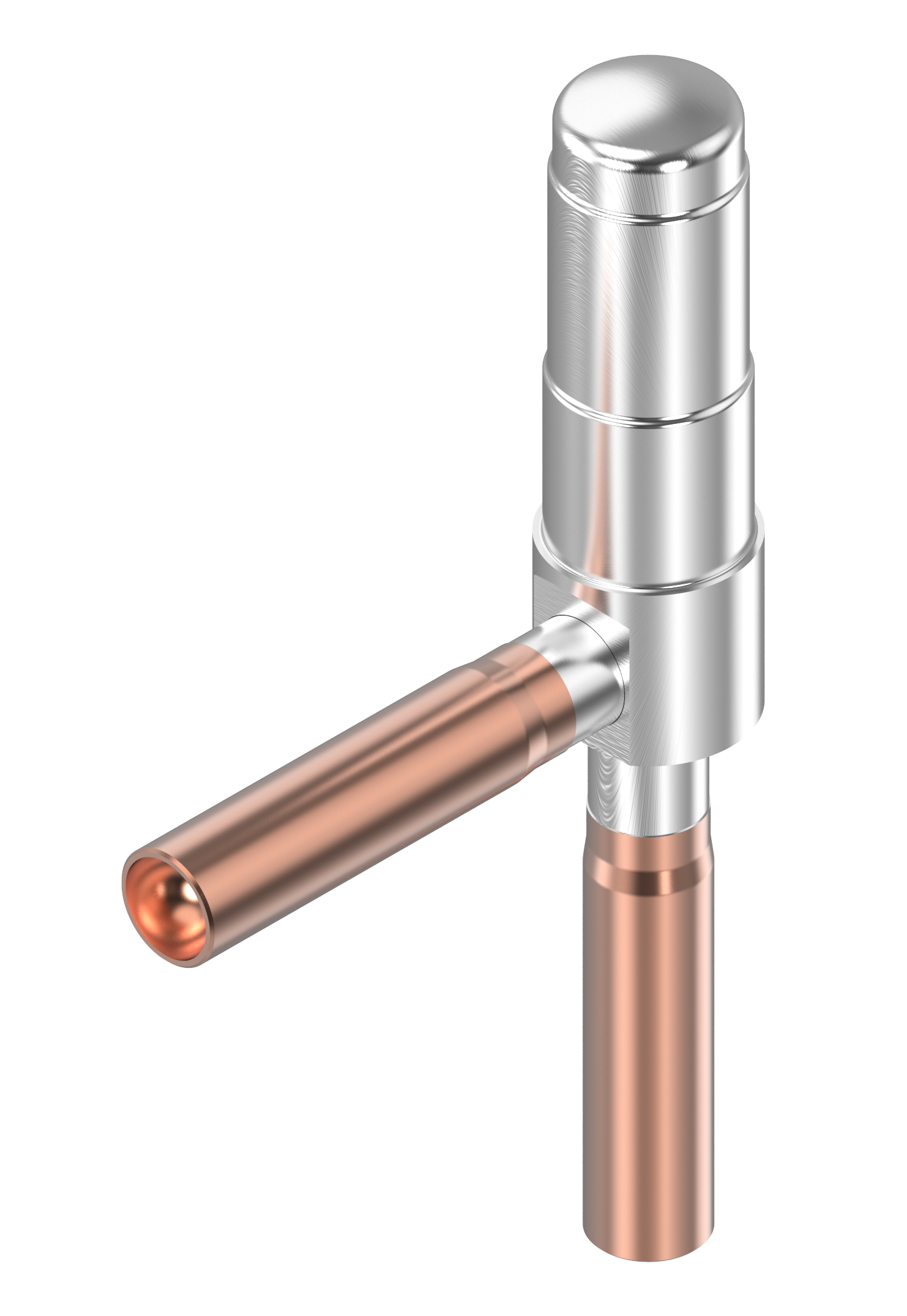

034G6220
Part Number: 034G6220
Product Information
Extended Description
034G6220 Danfoss: Connection type: Solder, ODM, Inlet size [mm]: 7.94, Outlet size [mm]: 7.94
Gross weight
0.054 Kilogram
Net weight
0.036 Kilogram
Volume
0.251 Liter
EAN
5715162734643
Ambient temperature range [=C2=B0C] [max]
70 =C2=B0C
Ambient temperature range [=C2=B0C] [min]
-30 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
158 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
-22 =C2=B0F
China RoHS compliance
Yes
Compatible Danfoss controllers
EIM 336,EKE 1A,EKE 1B,EKE 1C
Connection material
Cu-plated SS
Connection type
Solder, ODM
Contain batteries
No
Design config. Style
L
EU RoHS compliance
Yes
Flow characteristic
Linear
Flow direction
Bi-flow
Inlet size [in]
5/16 in
Inlet size [mm]
7.94 mm
Lubricants compatibility
POE
Manual operation option
AST-G service driver,Manual coil
Max. Working Pressure [bar]
49 bar
Max. Working Pressure [psig]
710 psig
MaxOPD [bar]
35 bar
MaxOPD [psig]
508 psig
MaxOPD reverse [bar]
35 bar
MaxOPD reverse [psi]
508 psi
Min. Leakage [cm=C2=B3/min] @ 1 Mpa
150 cm=C2=B3/min
Motor type
Permanent magnet stepper motor
Orifice size [mm]
2.4 mm
Outlet size [in]
5/16 in
Outlet size [mm]
7.94 mm
Packing format
Multi pack
Parts Program name
ETS 5M
PED category
Art. 4, par. 3
Product accessories
Electric valve accessories
Product group
Expansion valves
Product Name Description
Electric expansion valve
Quantity per packing format
20 pc
Rated cap. conditions [SI]
Subcooling=3D0 =C2=BAC,Superheat=3D0 =C2=BAC,tcond=3D38 =C2=BAC,tevap=3D5 =C2=BAC
Rated cap. R404A/R507A [kW]
12 kW
Rated cap. R404A/R507A [TR]
3.41 TR
Rated capacity R1234yf [kW]
9.31 kW
Rated capacity R1234yf [TR]
2.65 TR
Rated capacity R1234ze(E) [kW]
9.58 kW
Rated capacity R1234ze(E) [TR]
2.72 TR
Rated capacity R134a [kW]
12.71 kW
Rated capacity R134a [TR]
3.61 TR
Rated capacity R22 [kW]
17 kW
Rated capacity R22 [TR]
4.83 TR
Rated capacity R290 [kW]
17.64 kW
Rated capacity R290 [TR]
5.02 TR
Rated capacity R32 [kW]
29.88 kW
Rated capacity R32 [TR]
8.5 TR
Rated capacity R407C [kW]
17.71 kW
Rated capacity R407C [TR]
5.04 TR
Rated capacity R407H [kW]
19.79 kW
Rated capacity R407H [TR]
5.63 TR
Rated capacity R410A [kW]
20.23 kW
Rated capacity R410A [TR]
5.75 TR
Rated capacity R448A [kW]
17 kW
Rated capacity R448A [TR]
4.83 TR
Rated capacity R449A [kW]
16.62 kW
Rated capacity R449A [TR]
4.73 TR
Rated capacity R449B [kW]
16.9 kW
Rated capacity R449B [TR]
4.81 TR
Rated capacity R452A [kW]
12.81 kW
Rated capacity R452A [TR]
3.64 TR
Rated capacity R452B [kW]
23.2 kW
Rated capacity R452B [TR]
6.6 TR
Rated capacity R454A [kW]
17.25 kW
Rated capacity R454A [TR]
4.9 TR
Rated capacity R454B [kW]
23.45 kW
Rated capacity R454B [TR]
6.67 TR
Rated capacity R454C [kW]
14.77 kW
Rated capacity R454C [TR]
4.2 TR
Rated capacity R455A [kW]
16.3 kW
Rated capacity R455A [TR]
4.63 TR
Rated capacity R513A [kW]
10.79 kW
Rated capacity R513A [TR]
3.07 TR
Rated capacity R515B [kW]
9.28 kW
Rated capacity R515B [TR]
2.64 TR
REACH Candidate List substances
No
Refrigerant temperature [=C2=BAC] [max]
70 =C2=B0C
Refrigerant temperature [=C2=BAC] [min]
-30 =C2=B0C
Refrigerant temperature [=C2=BAF] [max]
158 =C2=B0F
Refrigerant temperature [=C2=BAF] [min]
-22 =C2=B0F
Refrigerants
R1234yf,R1234ze(E),R134a,R22,R290,R32,R404A/R507A,R407C,R407H,R410A,R448A,R449A,R449B,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R513A,R515B
Relative humidity (RH) [%] [max]
95 %
Relative humidity (RH) [%] [min]
0 %
Serviceable
No
Step mode
1-2 excitation (half step),2-2 excitation (full step)
Storage temperature range [=C2=B0C] [max]
70 =C2=B0C
Storage temperature range [=C2=B0C] [min]
-30 =C2=B0C
Storage temperature range [=C2=B0F] [max]
158 =C2=B0F
Storage temperature range [=C2=B0F] [min]
-22 =C2=B0F
Total steps
480 (half steps)
Type
ETS 5M24
Valve open pulses@normal flow
55 =C2=B1 16 steps
Valve open pulses@reverse flow
15 =C2=B1 15 steps
