034L0021
Part Number: 034L0021
Product Information
Extended Description

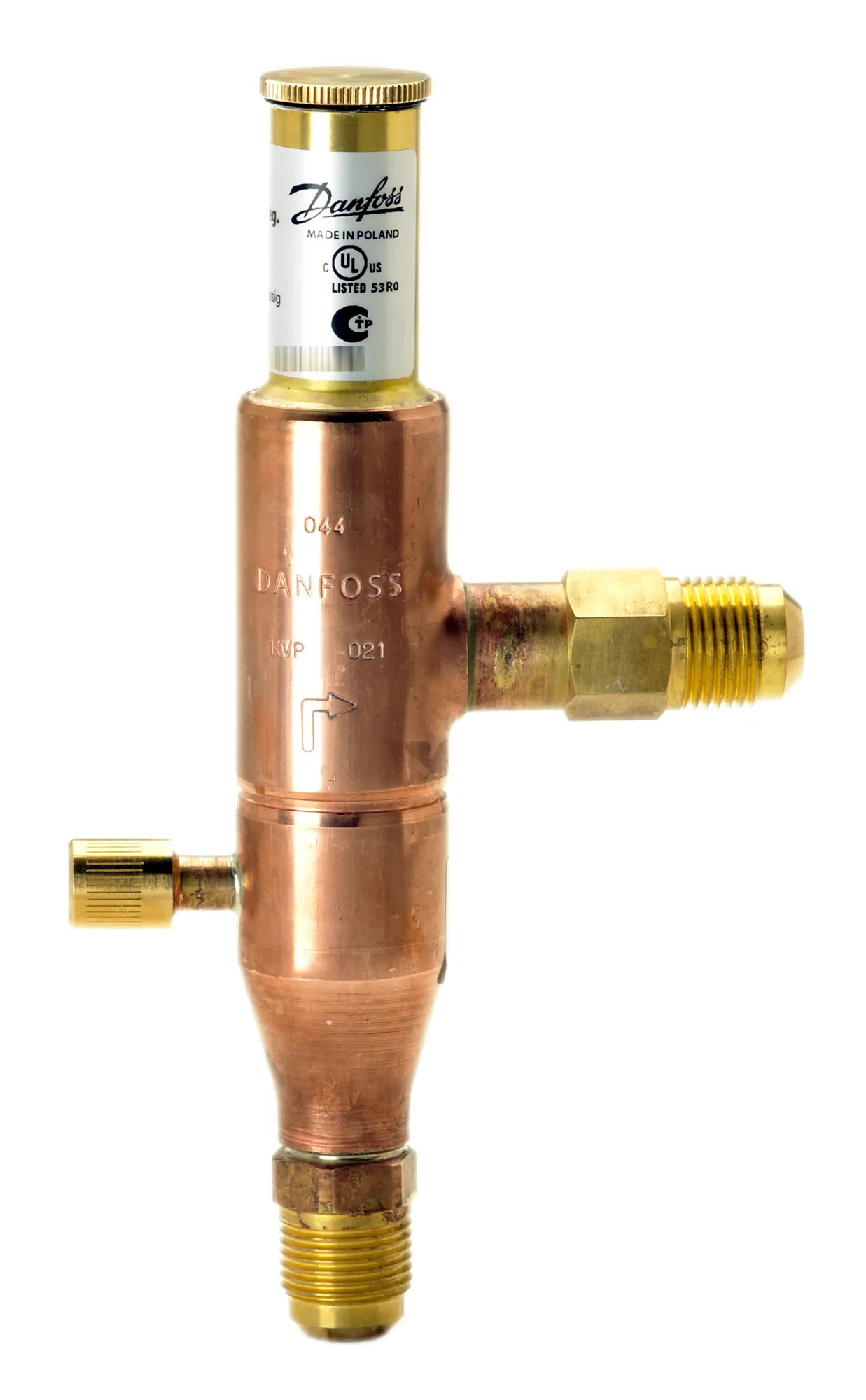

034L0021 Danfoss: Inlet size [mm]: 12.00, Outlet size [mm]: 12.00, Inlet size [in]: 1/2 in, Outlet size [in]: 1/2 in, Inlet connection type: Flare, Outlet connection type: Flare, Kv value [m=C2=B3/h]: 2.500, Max. Working Pressure [bar]: 18.0
Gross weight
0.448 Kilogram
Net weight
0.395 Kilogram
Volume
1.18 Liter
EAN
5702428411882
Approval
C UL US LISTED,EAC,LLC CDC TYSK,RoHS,RoHS China
Approval file name
REFRIGERANT VALVE 53R0
China RoHS compliance
Yes
Contain batteries
No
Cv value [gal/min]
2.9 gal/min
Equipment
Schrader valve access port
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Factory setting [bar]
2 bar
Factory setting [psig]
29 psig
Flow direction indicator
Engraved 1-way arrow
Inlet connection type
Flare
Inlet size [in]
1/2 in
Inlet size [mm]
12 mm
Kv value [m=C2=B3/h]
2.5 m=C2=B3/h
Kv value note
AT MAX P-BAND
Lubricants compatibility
Oilfree applications
Max. test pressure [bar]
19.8 bar
Max. test pressure [psig]
286 psig
Max. Working Pressure [bar]
18 bar
Max. Working Pressure [psig]
260 psig
Medium temperature range [=C2=B0C] [max]
130 =C2=B0C
Medium temperature range [=C2=B0C] [min]
-45 =C2=B0C
Medium temperature range [=C2=B0F] [max]
266 =C2=B0F
Medium temperature range [=C2=B0F] [min]
-49 =C2=B0F
Oil free refrigerants
R1234ze(E),R513A
Other RoHS documentation
EAEU RoHS
Outlet connection type
Flare
Outlet size [in]
1/2 in
Outlet size [mm]
12 mm
P band max. [bar]
1.7 bar
P band max. [psi]
24.6 psi
Packing format
Multi pack
Product accessories
No
Product group
Press. and temp. regul. valves
Product Name Description
Evaporator pressure regulator
Quantity per packing format
12 pc
Rated cap. R404A/R507A [kW]
3.6 kW
Rated cap. R404A/R507A [TR]
1.2 TR
Rated capacity R134a [kW]
2.8 kW
Rated capacity R134a [TR]
0.9 TR
Rated capacity R22 [kW]
4 kW
Rated capacity R22 [TR]
1.3 TR
Rated capacity R407C [kW]
3.7 kW
Rated capacity R407C [TR]
1.2 TR
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1234yf,R1234ze(E),R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R448A,R449A,R449B,R450A,R452A,R454A,R454C,R455A,R507A,R513A,R515B,R516A
Regulation range [bar] [max]
5.5 bar
Regulation range [bar] [min]
0 bar
Regulation range [psig] Pe [max]
80 psig
Regulation range [psig] Pe [min]
0 psig
SCIP dossier no.
842c526f-b213-4baa-869c-a91bb999a318
Serviceable
KV valves spare parts
Type
KVP 12
UK RoHS compliance
Out of scope
UL approved refrigerants
R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B,R516A
UL evaluated
Yes
