034N0081
Part Number: 034N0081
Product Information
Extended Description
034N0081 Danfoss: Inlet size [mm]: 12.00, Inlet connection type: Flare, Outlet size [mm]: 12.00, Outlet connection type: Flare, 0.0 bar - 6.0 bar, Max. Working Pressure [bar]: 28.0
Gross weight
0.964 Kilogram
Net weight
0.881 Kilogram
Volume
2.347 Liter
EAN
5702422010012
Approval
C UL US LISTED,EAC,LLC CDC TYSK,RoHS,RoHS China
Approval file name
REFRIGERANT VALVE 53R0
China RoHS compliance
Out of scope
Contain batteries
No
Differential pressure [bar]
18 bar
Differential pressure [psi]
260 psi
EU RoHS compliance
Out of scope
Factory setting [bar]
0.4 bar
Factory setting [psig]
5.8 psig
Flow direction indicator
Embossed 1-way arrow
Further information
Injection: LG liq. gas mixer
Inlet connection type
Flare
Inlet size [in]
1/2 in
Inlet size [mm]
12 mm
Max. test pressure [bar]
31 bar
Max. test pressure [psig]
450 psig
Max. Working Pressure [bar]
28 bar
Max. Working Pressure [psig]
406 psig
Medium temperature range [=C2=B0C] [max]
140 =C2=B0C
Medium temperature range [=C2=B0C] [min]
-50 =C2=B0C
Medium temperature range [=C2=B0F] [max]
284 =C2=B0F
Medium temperature range [=C2=B0F] [min]
-58 =C2=B0F
Outlet connection type
Flare
Outlet size [in]
1/2 in
Outlet size [mm]
12 mm
Packing format
Multi pack
Pilot line conn. size [in]
7/16 in - 20 UNF
Pilot line connection type
Flare
Product accessories
KV valves accessories
Product group
Press. and temp. regul. valves
Product Name Description

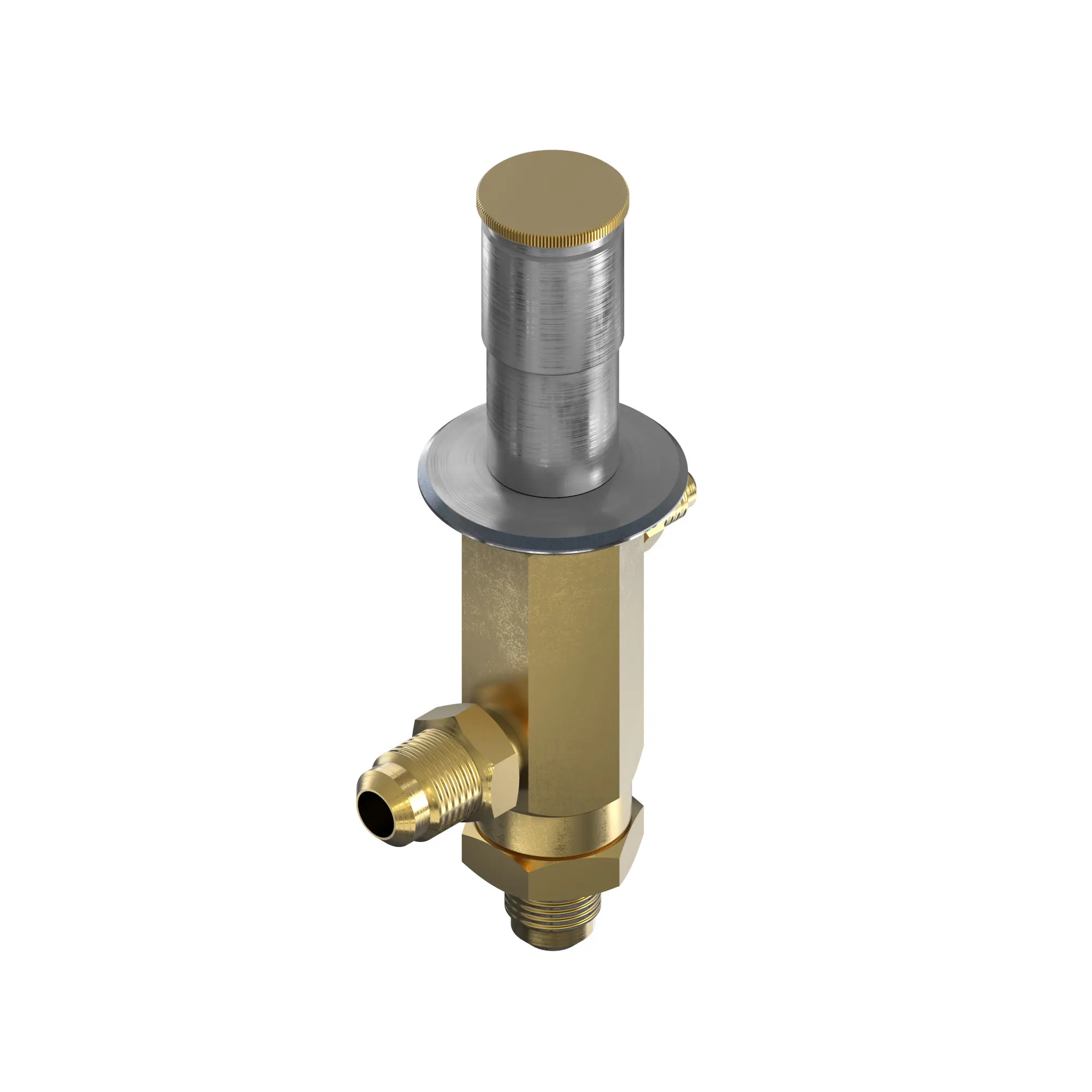

Hot gas bypass regulator
Quantity per packing format
8 pc
Rated cap. conditions [IMP]
Delta ts=3D7 =C2=B0F,tcond=3D86 =C2=B0F,tevap=3D-14 =C2=B0F
Rated cap. conditions [SI]
Delta ts=3D4K,tcond=3D30 =C2=B0C,tevap=3D-10 =C2=B0C
Rated cap. R404A/R507A [kW]
16.4 kW
Rated cap. R404A/R507A [TR]
6.3 TR
Rated capacity R134a [kW]
7.9 kW
Rated capacity R134a [TR]
4.3 TR
Rated capacity R22 [kW]
17.4 kW
Rated capacity R22 [TR]
6.2 TR
Rated capacity R407C [kW]
19 kW
Rated capacity R407C [TR]
6.7 TR
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1234ze(E),R1270,R134a,R22,R290,R404A,R407A,R407C,R407F,R407H,R448A,R449A,R449B,R450A,R452A,R454A,R454C,R455A,R507A,R513A,R515B,R516A,R600,R600a
Regulation range [bar] [max]
6 bar
Regulation range [bar] [min]
0 bar
Regulation range [psi] [max]
85 psi
Regulation range [psi] [min]
0 psi
Regulation range [psig] Pe [max]
85 psig
Regulation range [psig] Pe [min]
0 psig
SCIP dossier no.
07f60708-3237-4fd0-9275-7e8aeeecb838
SCIP dossier product name
CPCE
Serviceable
KV valves spare parts
Type
CPCE 12
UK RoHS compliance
Out of scope
UL approved refrigerants
R134a,R22,R404A,R407A,R407C,R407F,R407H,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B,R516A
UL evaluated
Yes
034L2000
Spare part, KV , CPCE, Cap, gasket, screw, valve
069G4001
Liquid gas mixer, LG 12 - 16
069G4002
Liquid gas mixer, LG 12 - 22
