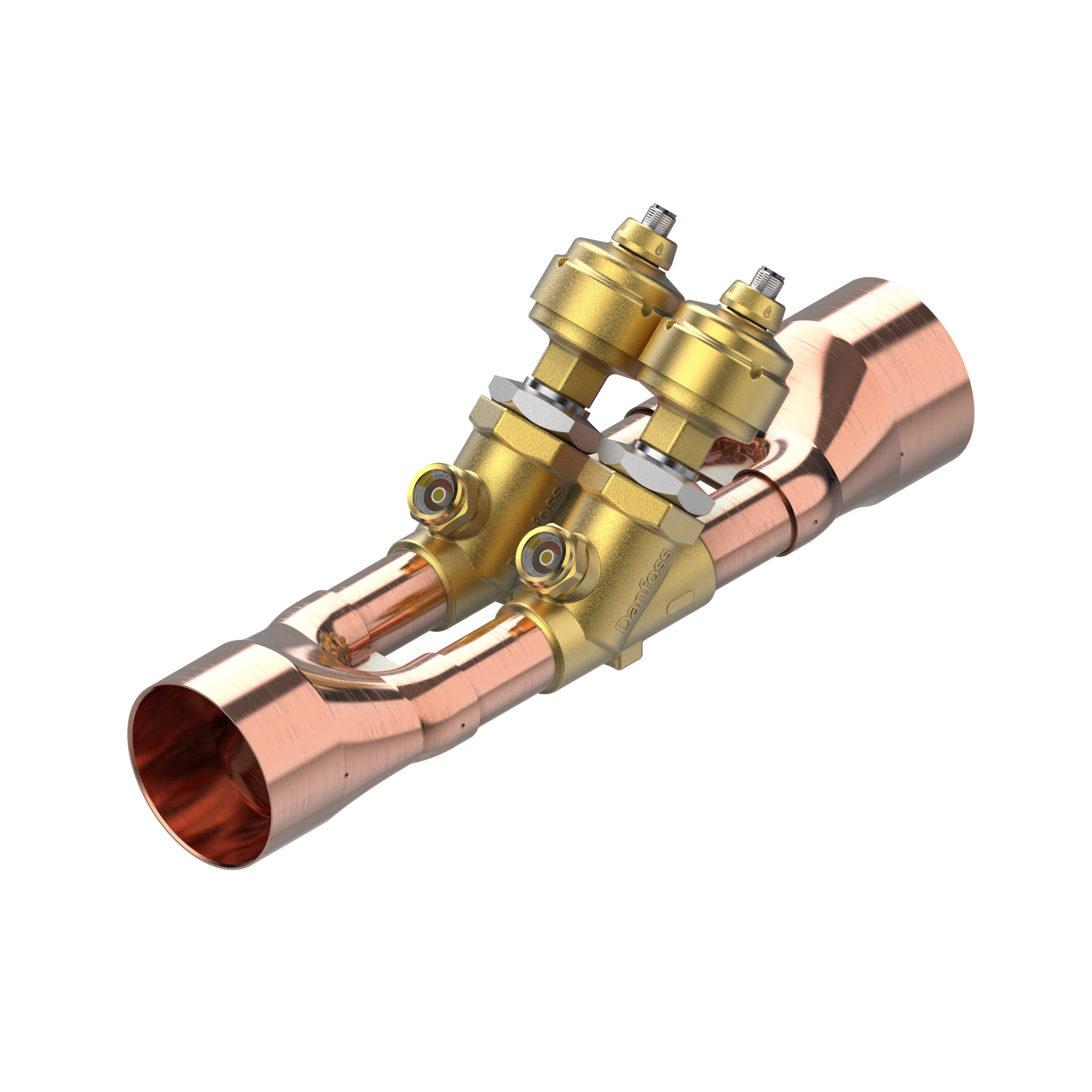

034Z1017
Part Number: 034Z1017
Product Information
Extended Description
034Z1017 Danfoss: Inlet connection type: Solder, ODF, Inlet size [in]: 2 5/8 in, Outlet size [in]: 3 1/8 in
Gross weight
5.586 Kilogram
Net weight
4.6 Kilogram
Volume
9 Liter
EAN
5702428656481
China RoHS compliance
Out of scope
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Inlet connection type
Solder, ODF
Inlet size [in]
2 5/8 in
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
25 bar
Max. Working Pressure [psig]
363 psig
Oil free refrigerants
R1234ze(E),R134a,R513A,R515A,R515B
Outlet connection type
Solder, ODF
Outlet size [in]
3 1/8 in
Packing format
Single pack
Product group
Expansion valves
Product Name Description
Electric expansion valve
Quantity per packing format
1 pc
Rated cap. conditions [IMP]
tcond=3D90 =C2=B0F,tevap=3D40 =C2=B0F,tliq=3D82 =C2=B0F
Rated cap. conditions [SI]
tcond=3D32 =C2=B0C,tevap=3D5 =C2=B0C,tliq=3D28 =C2=B0C
Rated capacity R1234ze(E) [kW]
1289 kW
Rated capacity R1234ze(E) [TR]
367 TR
Rated capacity R134a [kW]
1652 kW
Rated capacity R134a [TR]
471 TR
Rated capacity R513A [kW]
1518 kW
Rated capacity R513A [TR]
433 TR
Refrigerants
R1234yf,R290,R32,R444B,R447A,R452B,R454A,R454B,R454C,R455A,R516A,R600a
Type
ETS 500P
Type designation
Electric exp. valve
