036-0060
Part Number: 036-0060
Product Information
Extended Description
036-0060 Danfoss: Connection material: Steel, Max. Working Pressure [bar]: 28.0
Gross weight
0.98 Kilogram
Net weight
0.957 Kilogram
Volume
0.608 Liter
EAN
5702422021810
Comments
WITHOUT FLANGE
Connection material
Steel
Contain batteries
No
Cv value [gal/min]
3.8 gal/min
Fluid Group
1
Kv value [m=C2=B3/h]
3.3 m=C2=B3/h
Max. Working Pressure [bar]
28 bar
Max. Working Pressure [psig]
406 psig
Packing format
Multi pack
PED category
Art. 3, par. 3
Product description

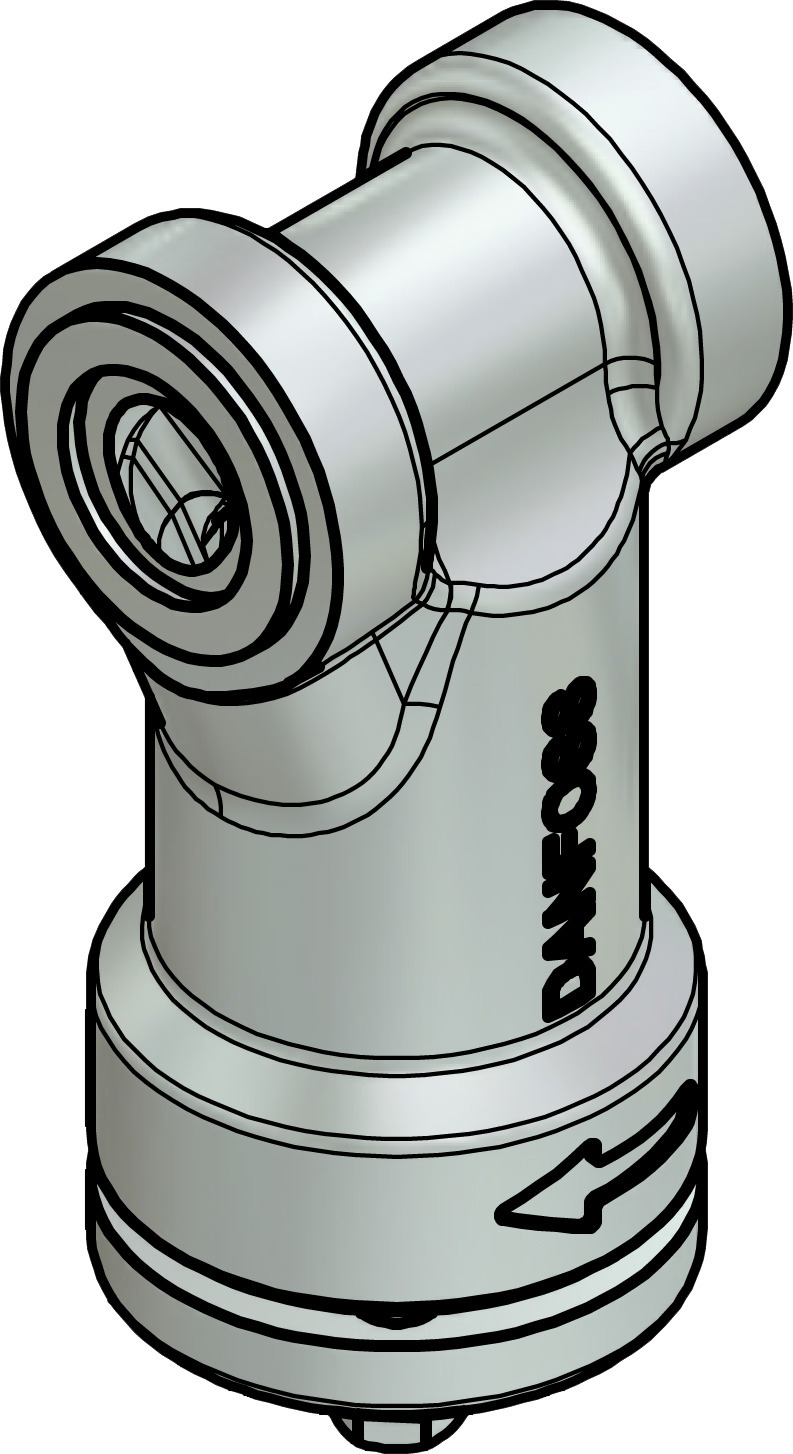

Strainer housing
Product group
Strainers
Product Name Description
Strainer, non welded
Quantity per packing format
12 pc
REACH Candidate List substances
No
Refrigerants
R113,R114,R1233zd(E),R1234yf,R1234ze(E),R125,R1336mzz(Z),R134a,R152a,R22,R227ea,R23,R236fa,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R444B,R447A,R448A,R449A,R449B,R450A,R452A,R454B,R455A,R502,R503,R513A,R717,R507A
Strainer area [cm2]
40 cm=C2=B2
Strainer area [in2]
6.2 in=C2=B2
Strainer volume [cm3]
68 cm=C2=B3
Strainer volume [in3]
4.15 in=C2=B3
Temperature range [=C2=B0C] [max]
140 =C2=B0C
Temperature range [=C2=B0C] [min]
-50 =C2=B0C
Temperature range [=C2=B0F] [max]
284 =C2=B0F
Temperature range [=C2=B0F] [min]
-58 =C2=B0F
Type
FA 15
006-0331
Repair kit
006-0334
Spare part, FA 15, Seal kit
