042H1126

Part Number: 042H1126
042H1126
Manufacturer
Danfoss
Part number
042H1126
Category

Product Information

Extended Description

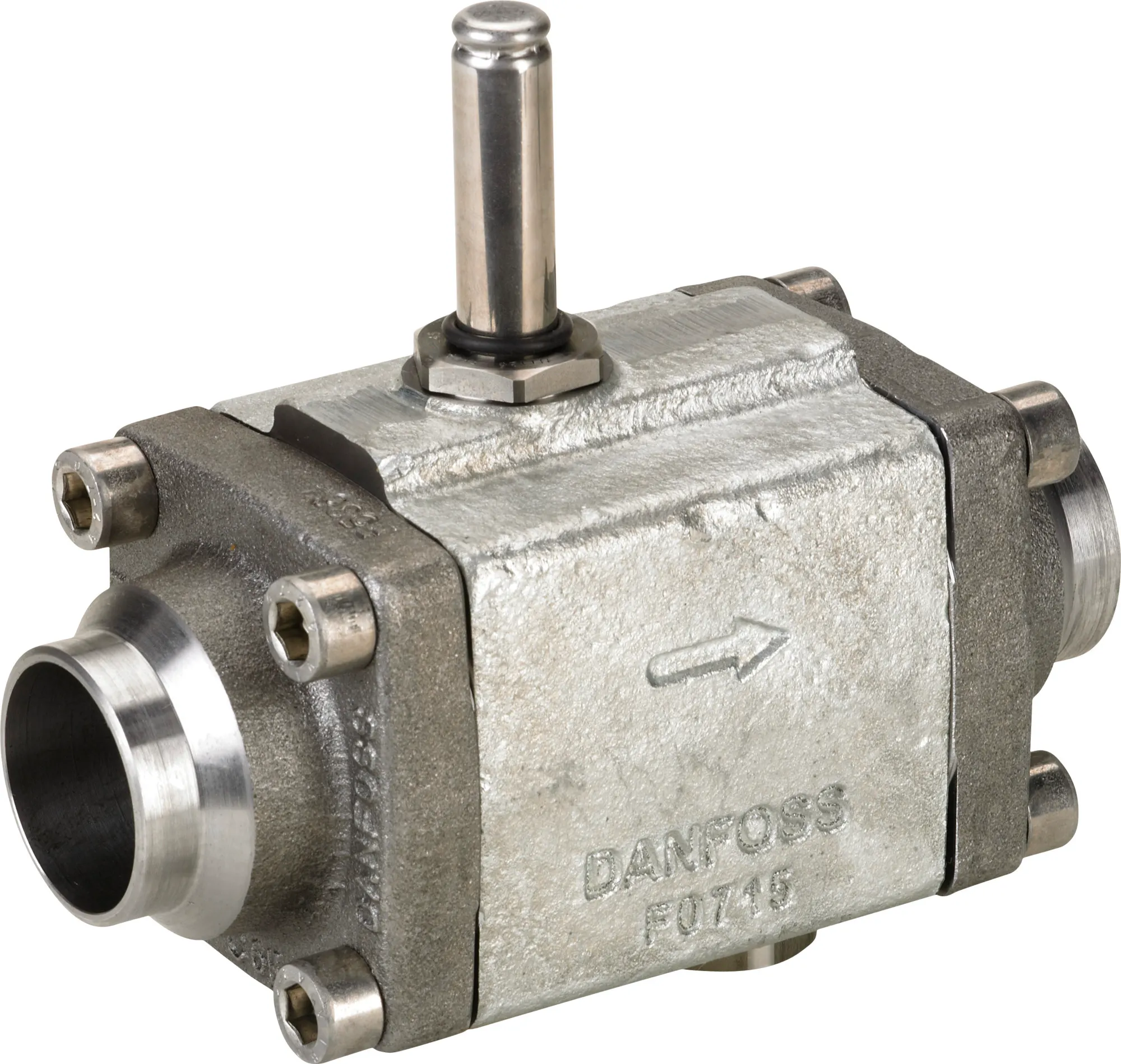

042H1126 Danfoss: Function: NC, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Cv value [gal/min]: 18.500, Kv value [m=C2=B3/h]: 16.000
Gross weight
4.904 Kilogram
Net weight
4.42 Kilogram
Volume
7.56 Liter
EAN
5702422171331
Actuator system [mm]
13.5 mm
Ambient temperature
-40 - 80 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
175 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
-40 =C2=B0F
Approval
C UL US LISTED,EAC,LLC CDC TYSK
Body material
Cast iron
China RoHS compliance
Out of scope
Coil
No
Connection material
Steel
Connection standard, inlet
EN 10220
Connection standard, outlet
EN 10220
Contain batteries
No
Cv value [gal/min]
18.5 gal/min
Direction
Straightway
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Function
NC
Inlet connection type
Butt weld
Inlet size [in]
1 1/4 in
Kv value [m=C2=B3/h]
16 m=C2=B3/h
Manual operation option
Yes
Max. Working Pressure [bar]
42 bar
Max. Working Pressure [psig]
610 psig
MaxOPD[bar] 10W AC
21 bar
MaxOPD[bar] 12W AC
25 bar
MaxOPD[bar] 20W DC
14 bar
MaxOPD[psi] 14W AC
300 psi
Medium temp. range note
Defrost max 130=C2=B0C/265=C2=B0F
Medium temperature range [=C2=B0C] [max]
105 =C2=B0C
Medium temperature range [=C2=B0C] [min]
-40 =C2=B0C
Medium temperature range [=C2=B0F] [max]
221 =C2=B0F
Medium temperature range [=C2=B0F] [min]
-40 =C2=B0F
MinODP [bar]
0.2 bar
MinODP [psi]
2.9 psi
Orifice size [mm]
22.23 mm
Outlet connection type
Butt weld
Outlet size [in]
1 1/4 in
Packing format
Single pack
Parts Program name
EVRA / EVRAT
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R507A,R717
SCIP dossier no.
d38f86ba-12bb-4e70-8d9f-ec3fd58b7365
SCIP dossier product name
EVRA EVRAT
Serviceable
Solenoid valve spare parts
Type
EVRA 32
Type designation
Solenoid valve
UK RoHS compliance
Out of scope
UL evaluated
Yes
Valve operation
Servo-piston
032F2327
Inspection kit, Inspection kit
032F2334
Repair kit, Repair kit
032F2341
Overhaul kit, Overhaul kit
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] Solenoid valves - Industrial Refrigeration product group catalogue Solenoid valve, type EVRA Spare parts and accessories, Solenoid valves, types EVRA, EVRAT, EVRS and EVRST, Pilot valves, types EVM (NC) and EVM (NO) Solenoid valves EVRA 3 - 20 / EVRAT 10 - 20 Solenoid valves for ammonia-EVRA 32 / EVRA 40 Danfoss EU 033F0685.AX Danfoss EU-UK 033F0688.AJ Danfoss MD 033F0691.AI Danfoss MD 033F1196.02 DNV TAA0000085 Rev. 5 T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02) Danfoss UK 033F4026.AB EVRA solenoid valve - sizes 32 and 40 EVRA solenoid valve - sizes 32 and 40 EVRA solenoid valve - sizes 32 and 40 EVRA 32, EVRA 40, no coil
