042N0156
Part Number: 042N0156
Product Information
Extended Description

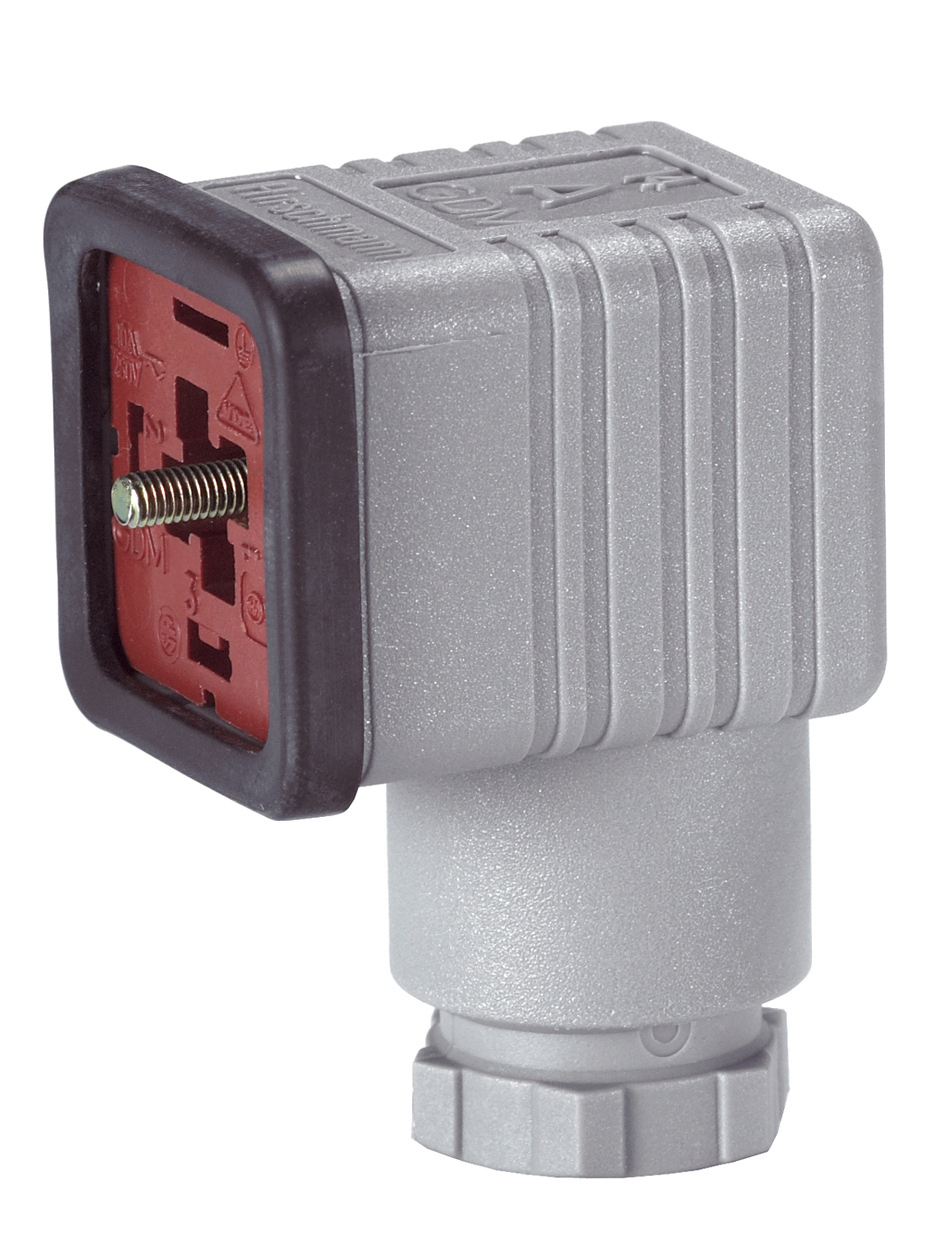

042N0156 Danfoss: Product Type: Spare part, Used for product: 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Type designation: Cable plug, Cable plug
Gross weight
0.034 Kilogram
Net weight
0.034 Kilogram
Volume
0.052 Liter
EAN
5702423012183
Ambient temperature range [°C] [max]
80 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
176 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE
Body material
PA6 + 30% GF
Body type
Opaque
Cable diameter [in] [max]
0.35 in
Cable diameter [in] [min]
0.24 in
Cable diameter [mm] [max]
9 mm
Cable diameter [mm] [min]
6 mm
Cable holder material
PA6
Cable properties
Ø4.5 MM - Ø11 MM
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour
Grey
Conductor size, max. [mm2]
1.5 mm²
Contact material
CuZn (Cu/Sn plated)
Contact resistance max. [mOhm]
4 mOhm
Contacts
2 + PE
Contain batteries
No
Electrical connection form
Form A
Electrical connection size
Pg 11
Electrical connection standard
DIN EN 175301-803A
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Gasket material
NBR
Gasket type
Profiled
Operating current max. [A]
16 A
Packing format
Multi pack
Plug type
GDM 2011 J
Product group
Solenoid coil accessories
Product Name Description
Cable plug
Quantity per packing format
100 pc
REACH Candidate List substances
No
SCIP dossier no.
-
Supply voltage [V] AC
250 V
Supply voltage [V] DC
250 V
Terminal block material
PA6 + 30% GF
Type
Spare part
Type designation
Cable plug
UK RoHS compliance
Out of scope
Used for product
018F Coil Type B,018Z Coil Type B,042N Coil Type B
