042N0265

Part Number: 042N0265
042N0265
Manufacturer
Danfoss
Part number
042N0265
Category

Product Information

Extended Description

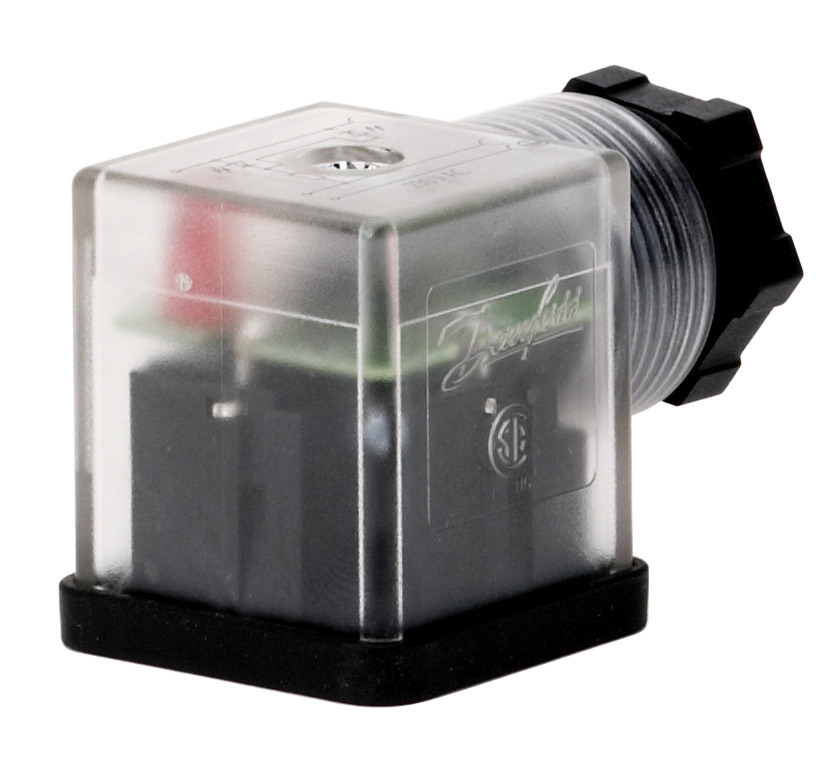

042N0265 Danfoss: Product Type: Spare part, Used for product: 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Type designation: Cable plug, Cable plug
Gross weight
0.026 Kilogram
Net weight
0.026 Kilogram
Volume
0.056 Liter
EAN
5702423205899
Ambient temperature range [°C] [max]
90 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
194 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,UKCA
Body type
Translucent
Cable diameter [in] [max]
0.32 in
Cable diameter [in] [min]
0.24 in
Cable diameter [mm] [max]
8 mm
Cable diameter [mm] [min]
6 mm
CE evaluated
Yes
China RoHS compliance
Out of scope
Conductor size, max. [mm2]
1.5 mm²
Contact material
CuZn (Cu/Sn plated)
Contact resistance max. [mOhm]
15 mOhm
Contacts
2 + PE
Contain batteries
No
Electrical connection form
Form A
Electrical connection standard
EN 175301-803
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Gasket material
NBR
Gasket type
Profiled
LED colour
Red
Operating current max. [A]
16 A
Packing format
Multi pack
Product group
Solenoid coil accessories
Product Name Description
Cable plug
Quantity per packing format
100 pc
Supply voltage [V] AC
230 V
Supply voltage [V] DC
230 V
Tolerance
± 10%
Type
Spare part
Type designation
Cable plug
UK RoHS compliance
Out of scope
Used for product
018F Coil Type B,018Z Coil Type B,042N Coil Type B
032U8503
Solenoid valve, EV220B, Function: NC, G, 1 1/4, 18.000 mÂł/h, EPDM
032U8362
Solenoid valve, EV224B, Function: NC, G, 3/4, 8.000 mÂł/h, NBR
032U7181
Solenoid valve, EV220B, Function: NO, G, 3/4, 7.500 mÂł/h, NBR
032U8507
Solenoid valve, EV220B, Function: NC, G, 3/4, 8.000 mÂł/h, FKM
016D3330
Solenoid valve, EV220B, Function: NC, Flange, 2 1/2 in, 50.000 mÂł/h, NBR
016D3331
Solenoid valve, EV220B, Function: NC, Flange, 3 in, 75.000 mÂł/h, NBR
032H8041
Solenoid valve, EV210A, Function: NC, G, 1/4, 0.220 mÂł/h, FKM
032H8097
Solenoid valve, EV310A, Function: NC, G, 1/4, 0.070 mÂł/h, FKM
032H8099
Solenoid valve, EV310A, Function: NC, G, 1/4, 0.080 mÂł/h, FKM
032H8125
Solenoid valve, EV310A, Function: NO, G, 1/8, 0.040 mÂł/h, FKM
PrzeglÄ…d ProduktĂłw AKPiA - katalog PrzeglÄ…d ProduktĂłw AKPiA - katalog PrzeglÄ…d ProduktĂłw AKPiA - katalog PrzeglÄ…d ProduktĂłw AKPiA - katalog PrzeglÄ…d ProduktĂłw AKPiA - katalog PrzeglÄ…d ProduktĂłw AKPiA - katalog PrzeglÄ…d ProduktĂłw AKPiA - katalog PrzeglÄ…d ProduktĂłw AKPiA - katalog PrzeglÄ…d ProduktĂłw AKPiA - katalog PrzeglÄ…d ProduktĂłw AKPiA - katalog Cable socket for solenoid coils (042N0263-65) Dimensions for Plug 042N0265
