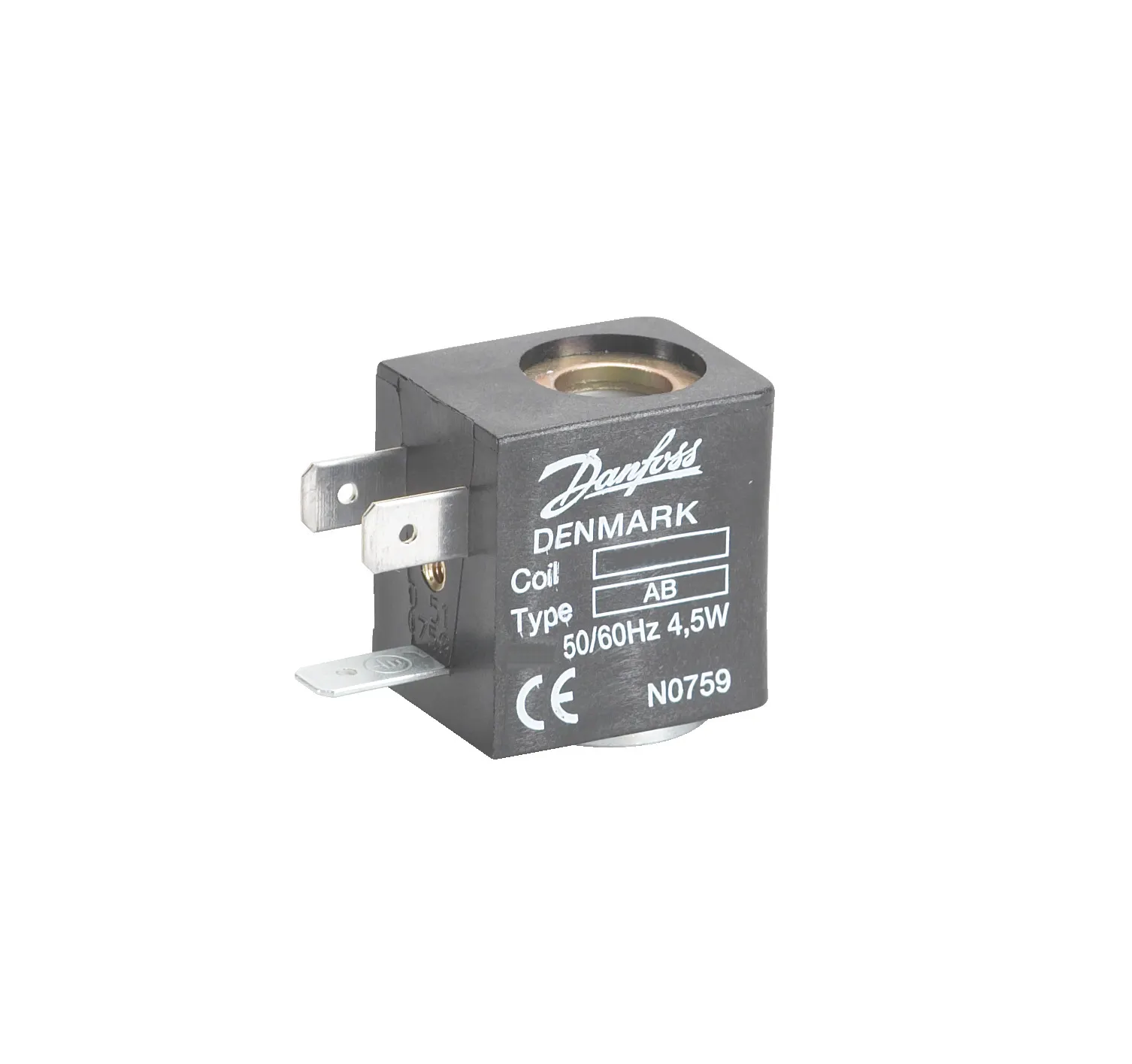

042N0800
Part Number: 042N0800
Product Information
Extended Description
042N0800 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.06 Kilogram
Net weight
0.049 Kilogram
Volume
0.089 Liter
EAN
5702423048823
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Coil connection
DIN Spade
Coil fastening
Finger screw
Colour
Black
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210A,EV220A,EV310A
Power consumption 50Hz [VA]
8 VA
Power consumption 60Hz [VA]
6 VA
Power consumption [W] 50Hz
4.5 W
Power consumption [W] 60Hz
4.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
5a9d6ad4-1058-4d37-a855-276417a7cbbb
SCIP dossier product name
CSV 10-22
Serviceable
No
Supply voltage 50Hz Max [V]
230 V
Supply voltage 60Hz Max [V]
230 V
Supply voltage [V] AC
230 V
Type
AB230C
Type designation
AB230C
