042N0801

Part Number: 042N0801
042N0801
Manufacturer
Danfoss
Part number
042N0801
Category

Product Information

Extended Description

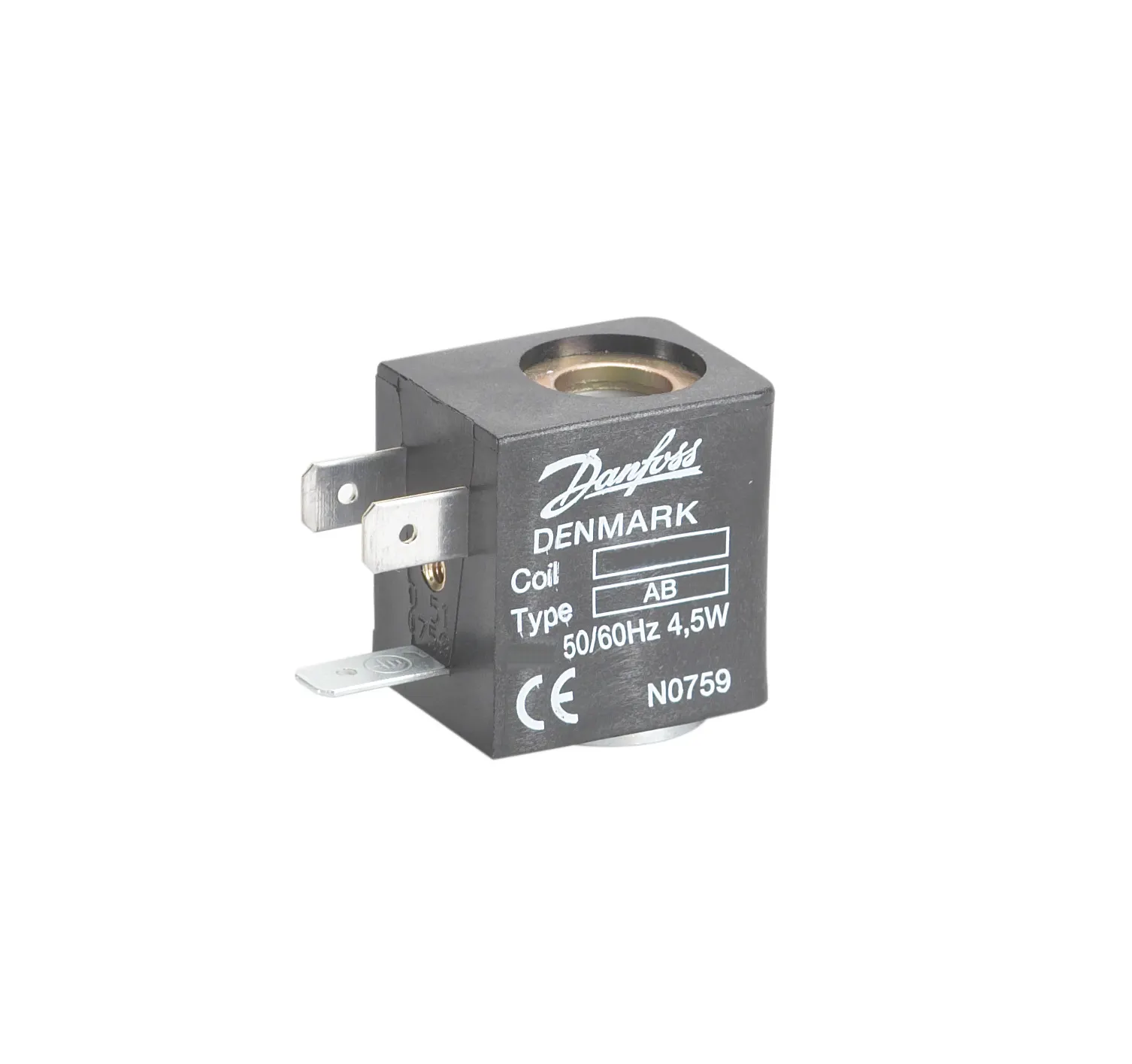

042N0801 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 240, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.059 Kilogram
Net weight
0.05 Kilogram
Volume
0.12 Liter
EAN
5702423049769
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Coil connection
DIN Spade
Coil fastening
Finger screw
Colour
Black
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210A,EV220A,EV310A
Power consumption [W]
4.5 W
Power consumption [W] 50Hz
4.5 W
Power consumption [W] 60Hz
4.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
5a9d6ad4-1058-4d37-a855-276417a7cbbb
SCIP dossier product name
CSV 10-22
Serviceable
No
Supply voltage 50Hz Max [V]
240 V
Supply voltage 60Hz Max [V]
240 V
Supply voltage [V] AC
240 V
Type
AB240C
Type designation
AB240C
Industrial refrigeration - Spare parts and accessories Solenoid coil Type AB, AM, AC, AK, AL, AP, BB, BA, BC and BD Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Coils for Solenoid Valves, type AB012C, AB012D, AB110C, AB240C AB coil - DIN spade
