042N0804

Part Number: 042N0804
042N0804
Manufacturer
Danfoss
Part number
042N0804
Category

Product Information

Extended Description

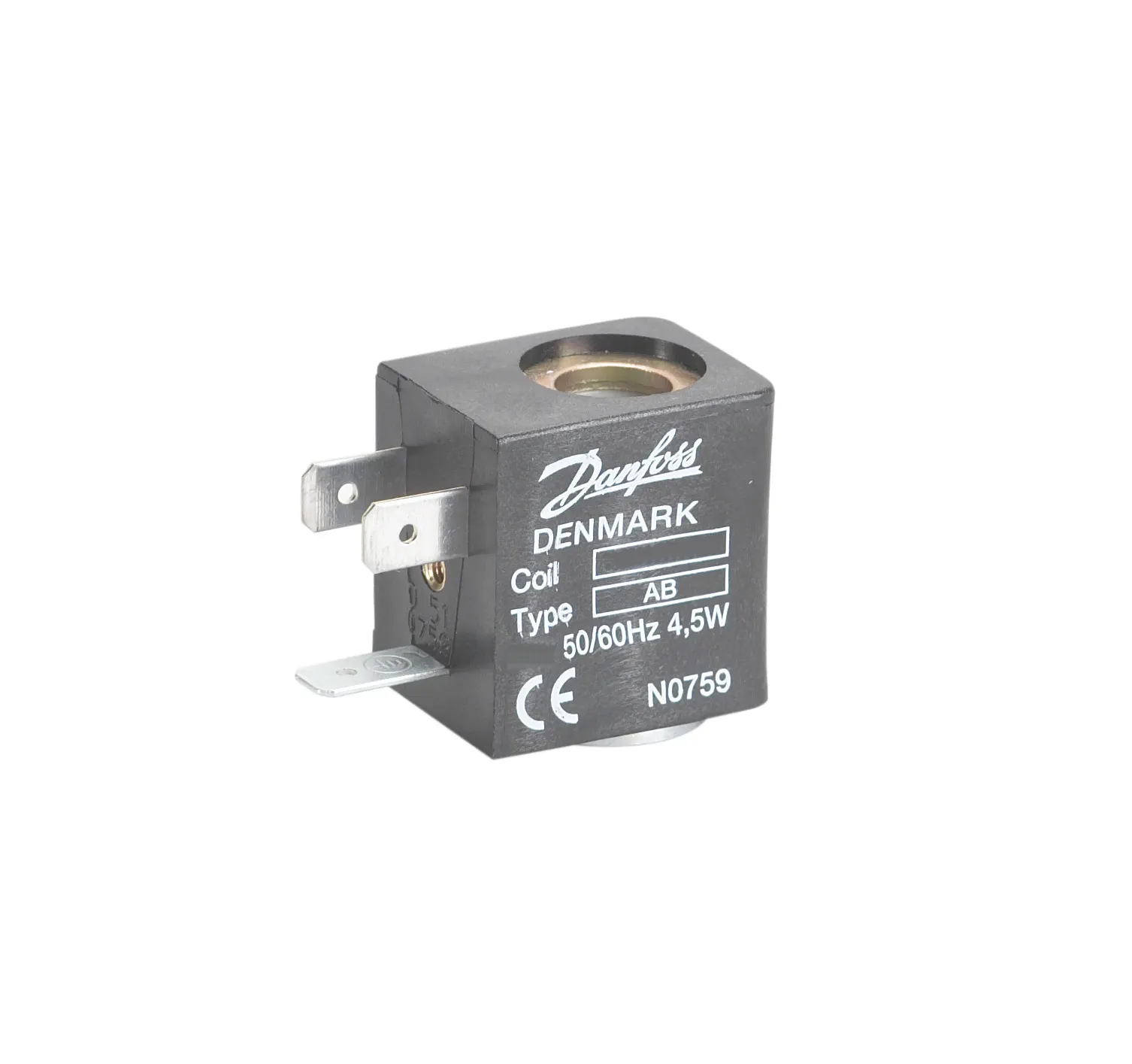

042N0804 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 110, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.058 Kilogram
Net weight
0.049 Kilogram
Volume
0.088 Liter
EAN
5702423050567
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Coil connection
DIN Spade
Coil fastening
Finger screw
Colour
Black
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210A,EV220A,EV310A
Power consumption 50Hz [VA]
8 VA
Power consumption 60Hz [VA]
6 VA
Power consumption [W] 50Hz
4.5 W
Power consumption [W] 60Hz
4.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Supply voltage 50Hz Max [V]
110 V
Supply voltage 60Hz Max [V]
110 V
Supply voltage [V] AC
110 V
Type
AB110C
Type designation
AB110C
Industrial refrigeration - Spare parts and accessories Solenoid coil Type AB, AM, AC, AK, AL, AP, BB, BA, BC and BD Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Coils for Solenoid Valves, type AB012C, AB012D, AB110C, AB240C AB coil - DIN spade
