042N0826
Part Number: 042N0826
Product Information
Extended Description
042N0826 Danfoss: Electrical connection: DIN Spade, Enclosure rating IP: IP00
Gross weight
0.062 Kilogram
Net weight
0.049 Kilogram
Volume
0.09 Liter
EAN
5702423071227
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Coil connection
DIN Spade
Coil fastening
Finger screw
Colour
Black
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210A,EV220A,EV310A
Power consumption [W] DC
10 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description

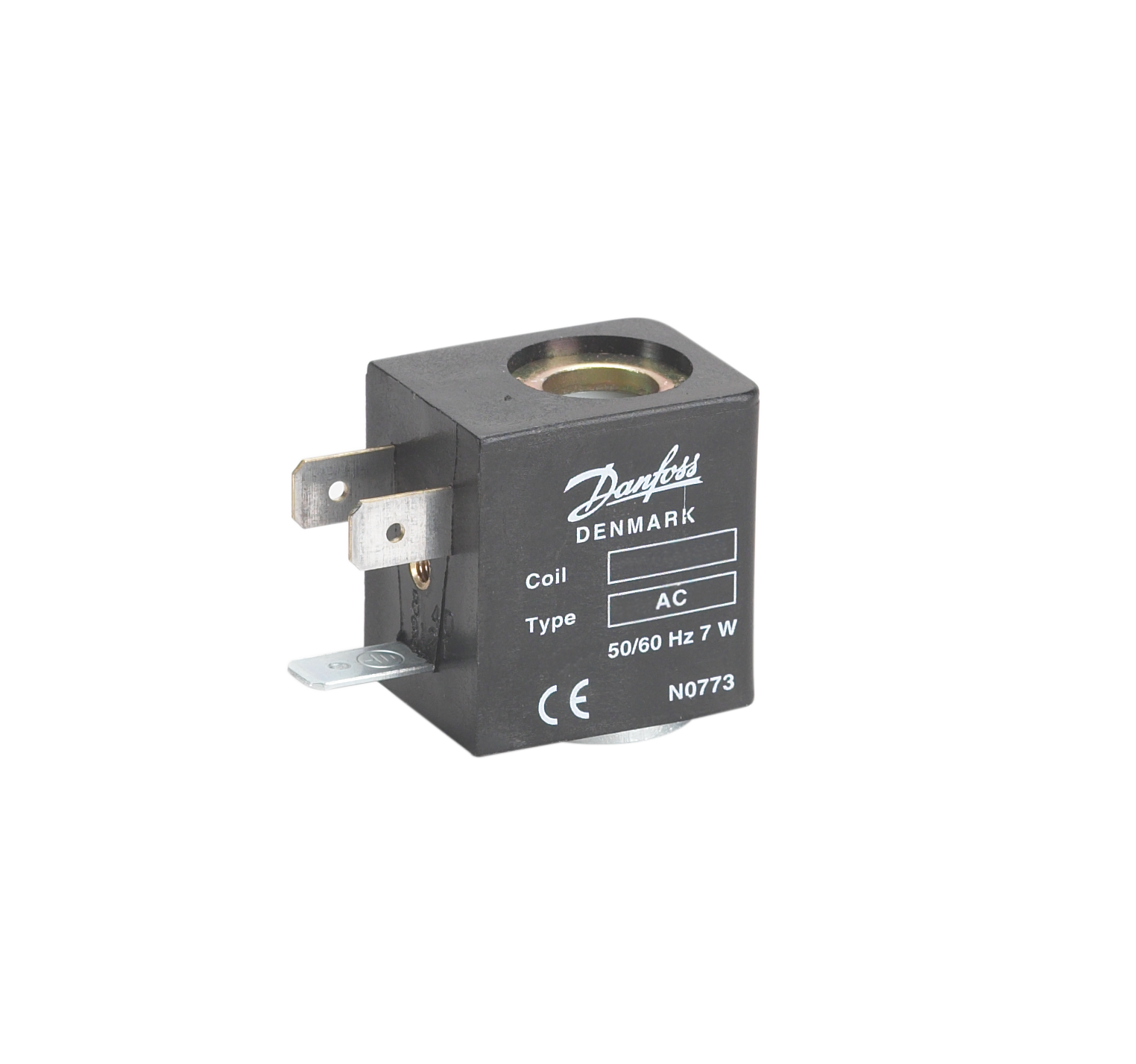

Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Supply voltage [V] DC
12 V
Type
AC012D
Type designation
AC012D
