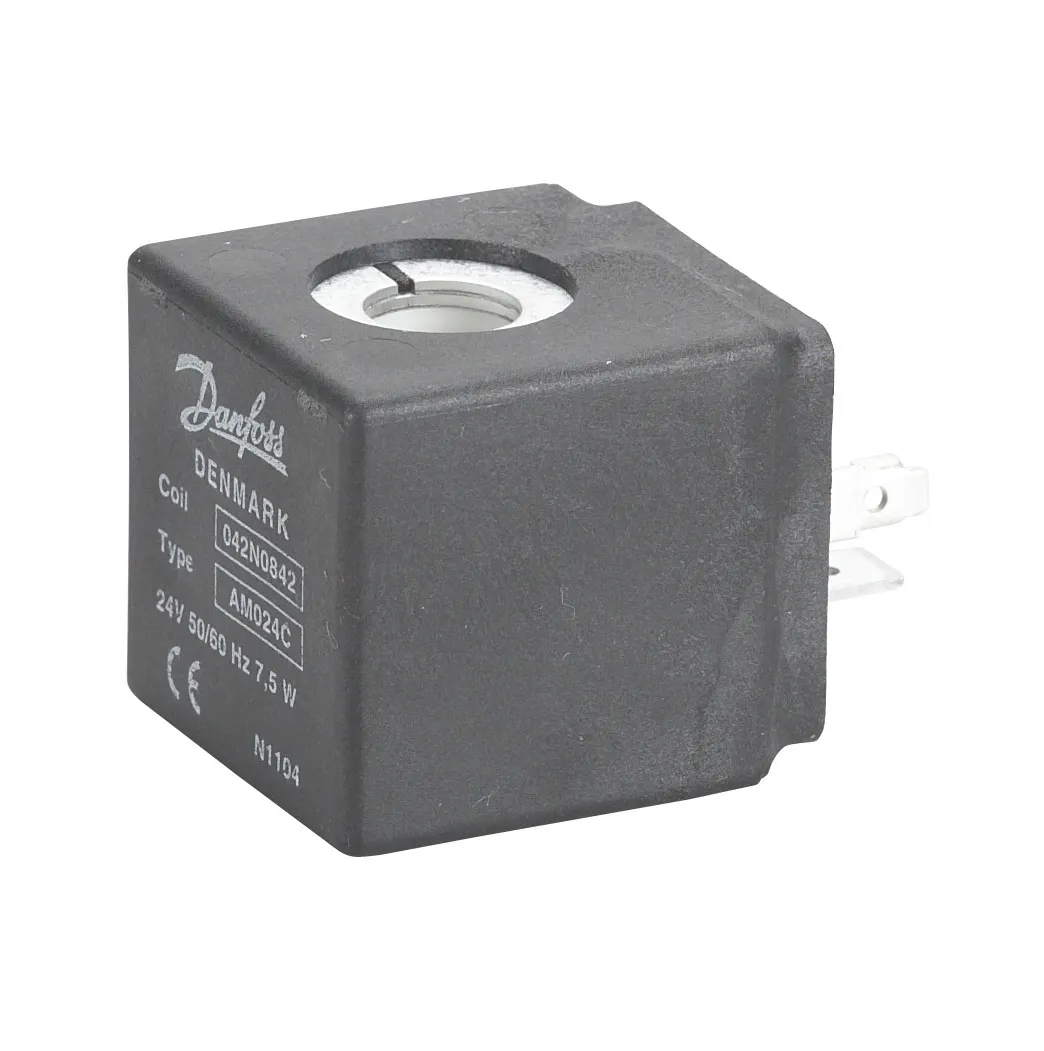

042N0842
Part Number: 042N0842
Product Information
Extended Description
042N0842 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 24, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.114 Kilogram
Net weight
0.106 Kilogram
Volume
0.093 Liter
EAN
5702423049790
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Finger screw
Coil winding insulation class
Class H to IEC 85
Colour
Black
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Identical product
042N2204
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210A,EV220A,EV310A
Power consumption 50Hz [VA]
14 VA
Power consumption 60Hz [VA]
11 VA
Power consumption [W] 50Hz
7.5 W
Power consumption [W] 60Hz
5.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Supply voltage 50Hz Max [V]
24 V
Supply voltage 60Hz Max [V]
24 V
Supply voltage [V] AC
24 V
Type
AM024C
Type designation
AM024C
032H8000
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.040 m³/h, EPDM
032H8001
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.040 m³/h, FKM
032H8003
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.080 m³/h, FKM
032H8004
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.110 m³/h, EPDM
032H8005
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.110 m³/h, FKM
032H8006
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.170 m³/h, EPDM
032H8007
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.170 m³/h, FKM
032H8008
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.220 m³/h, EPDM
032H8009
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.220 m³/h, FKM
032H8014
Solenoid valve, EV210A, Function: NC, G, 1/4, 0.170 m³/h, EPDM
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP
Solenoid coil Type AB, AM, AC, AK, AL, AP, BB, BA, BC and BD
Danfoss UA 8505
Danfoss UA 8505
Danfoss UA 8505
Danfoss UA 8505
Danfoss UA 8505
Danfoss UA 8505
Danfoss UA 8505
Danfoss UA 8505
Danfoss UA 8505
Danfoss UA 8505
AM Compact coil
