042N0844
Part Number: 042N0844
Product Information
Extended Description

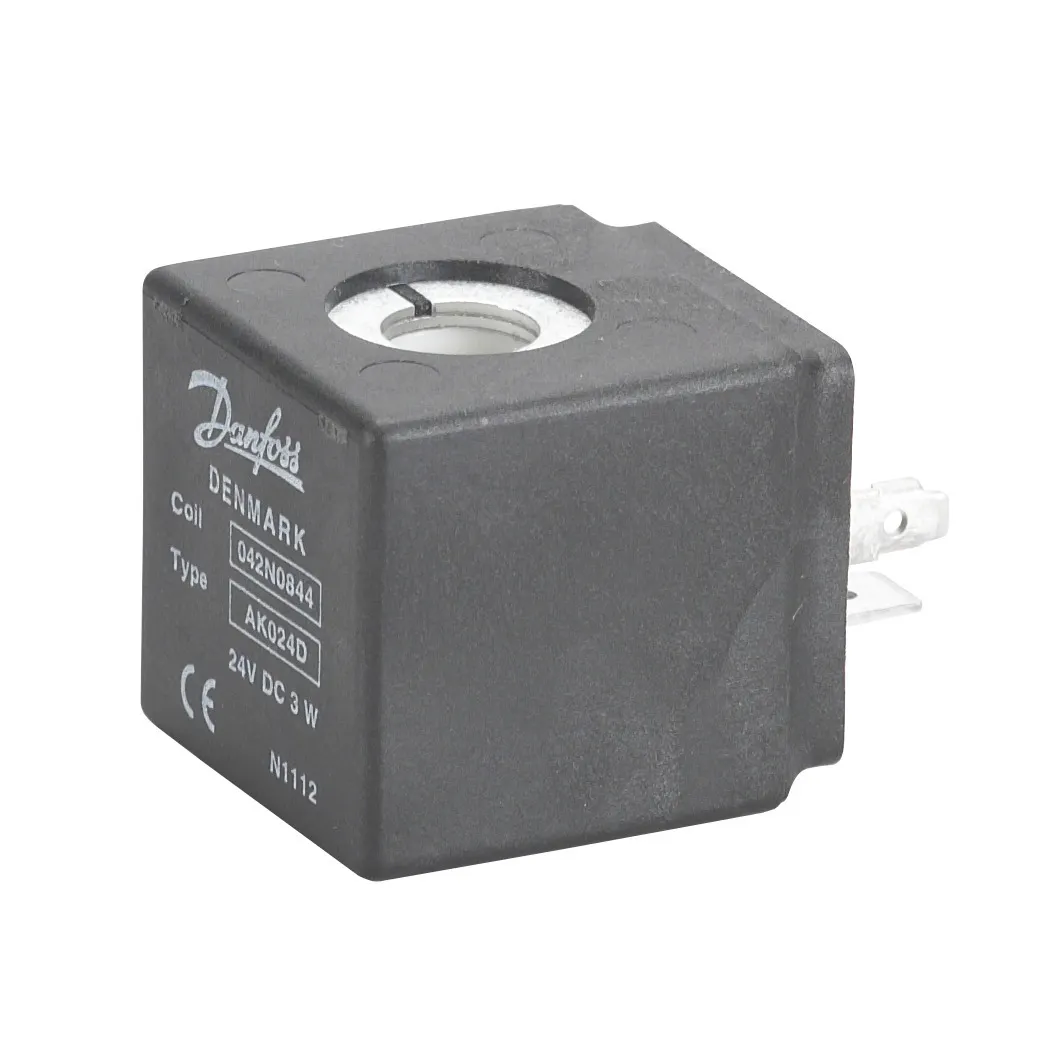

042N0844 Danfoss: Electrical connection: DIN Spade, Enclosure rating IP: IP00
Gross weight
0.11 Kilogram
Net weight
0.103 Kilogram
Volume
0.093 Liter
EAN
5702423049905
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Coil connection
DIN Spade
Coil fastening
Finger screw
Colour
Black
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
In scope of WEEE
Yes
Packing format
Multi pack
Power consumption [W] DC
3.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Serviceable
No
Supply voltage [V] DC
24 V
Type
AK024D
Type designation
AK024D
032H8097
Solenoid valve, EV310A, Function: NC, G, 1/4, 0.070 m³/h, FKM
