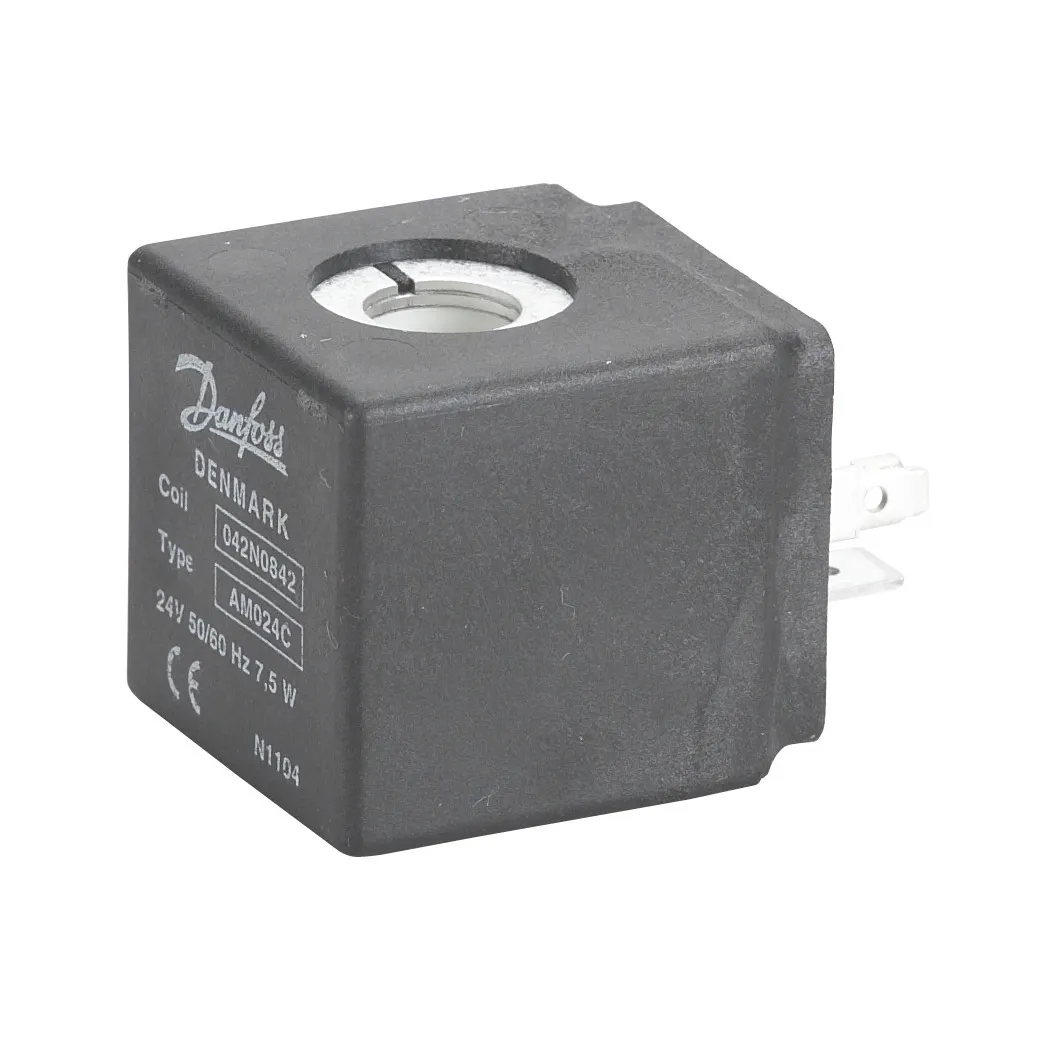

042N0848

Part Number: 042N0848
042N0848
Manufacturer
Danfoss
Part number
042N0848
Category

Product Information

Extended Description

042N0848 Danfoss: Electrical connection: DIN Spade, Enclosure rating IP: IP00
Gross weight
0.114 Kilogram
Net weight
0.105 Kilogram
Volume
0.089 Liter
EAN
5702423071241
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Finger screw
Coil winding insulation class
Class H to IEC 85
Colour
Black
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
Identical product
042N2213
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210A,EV220A,EV310A
Power consumption [W] DC
8.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Supply voltage [V] DC
12 V
Type
AM012D
Type designation
AM012D
032H8000
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.040 mÂł/h, EPDM
032H8001
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.040 mÂł/h, FKM
032H8003
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.080 mÂł/h, FKM
032H8004
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.110 mÂł/h, EPDM
032H8005
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.110 mÂł/h, FKM
032H8006
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.170 mÂł/h, EPDM
032H8007
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.170 mÂł/h, FKM
032H8008
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.220 mÂł/h, EPDM
032H8009
Solenoid valve, EV210A, Function: NC, G, 1/8, 0.220 mÂł/h, FKM
032H8014
Solenoid valve, EV210A, Function: NC, G, 1/4, 0.170 mÂł/h, EPDM
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP Solenoid coil Type AB, AM, AC, AK, AL, AP, BB, BA, BC and BD Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 Danfoss UA 8505 AM Compact coil AM coil - DIN Spade
