042N1256
Part Number: 042N1256
Product Information
Extended Description

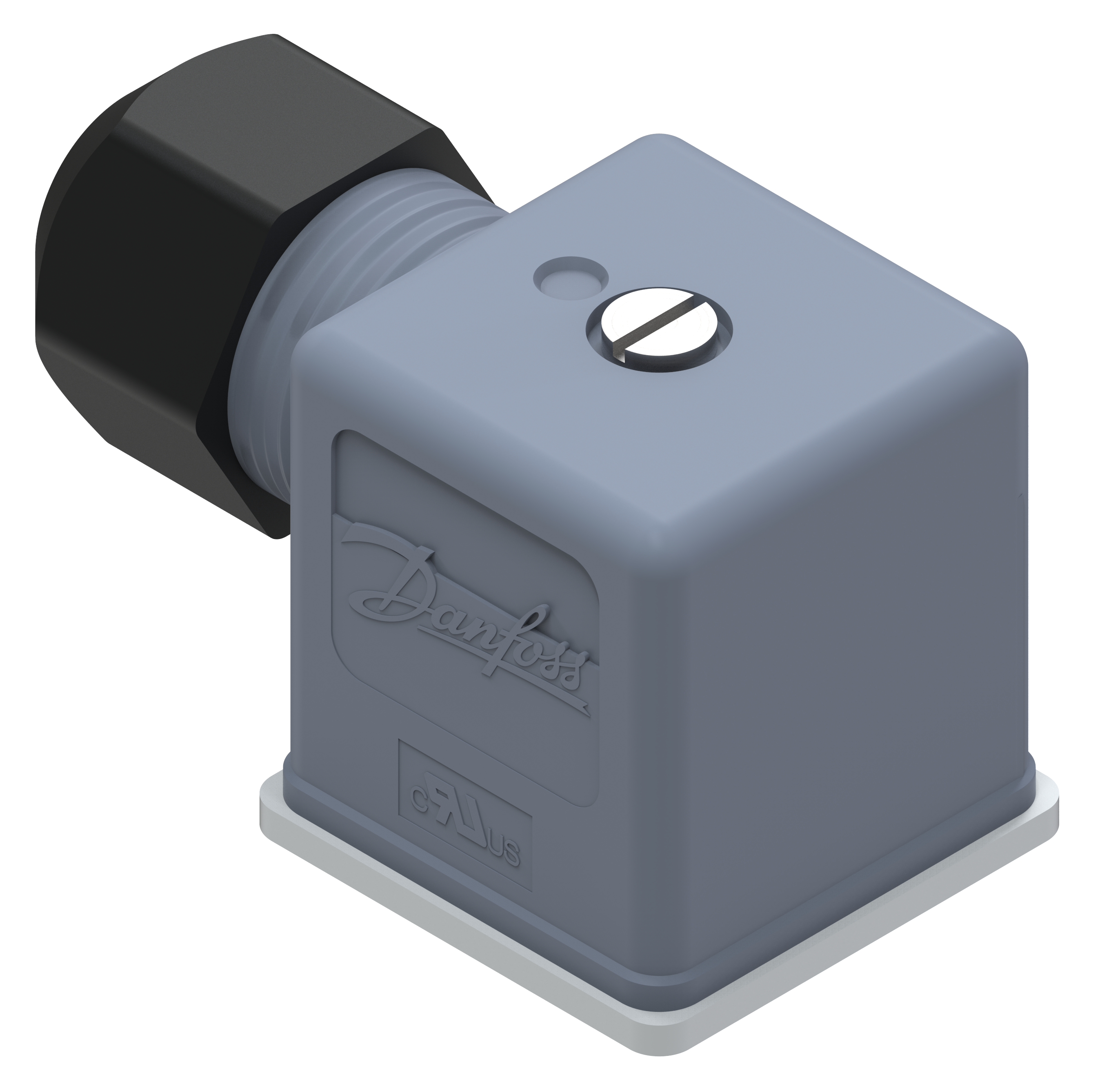

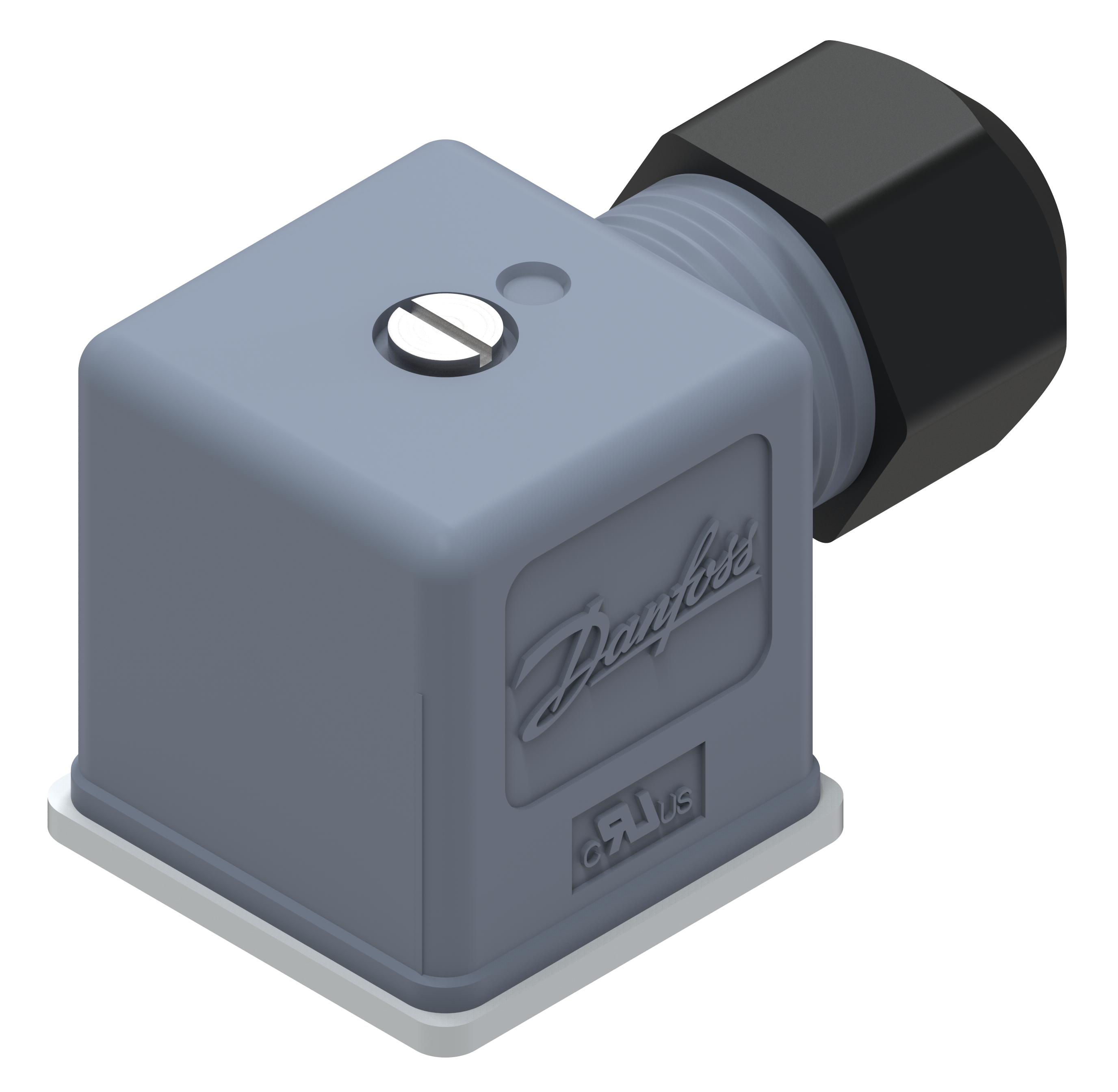

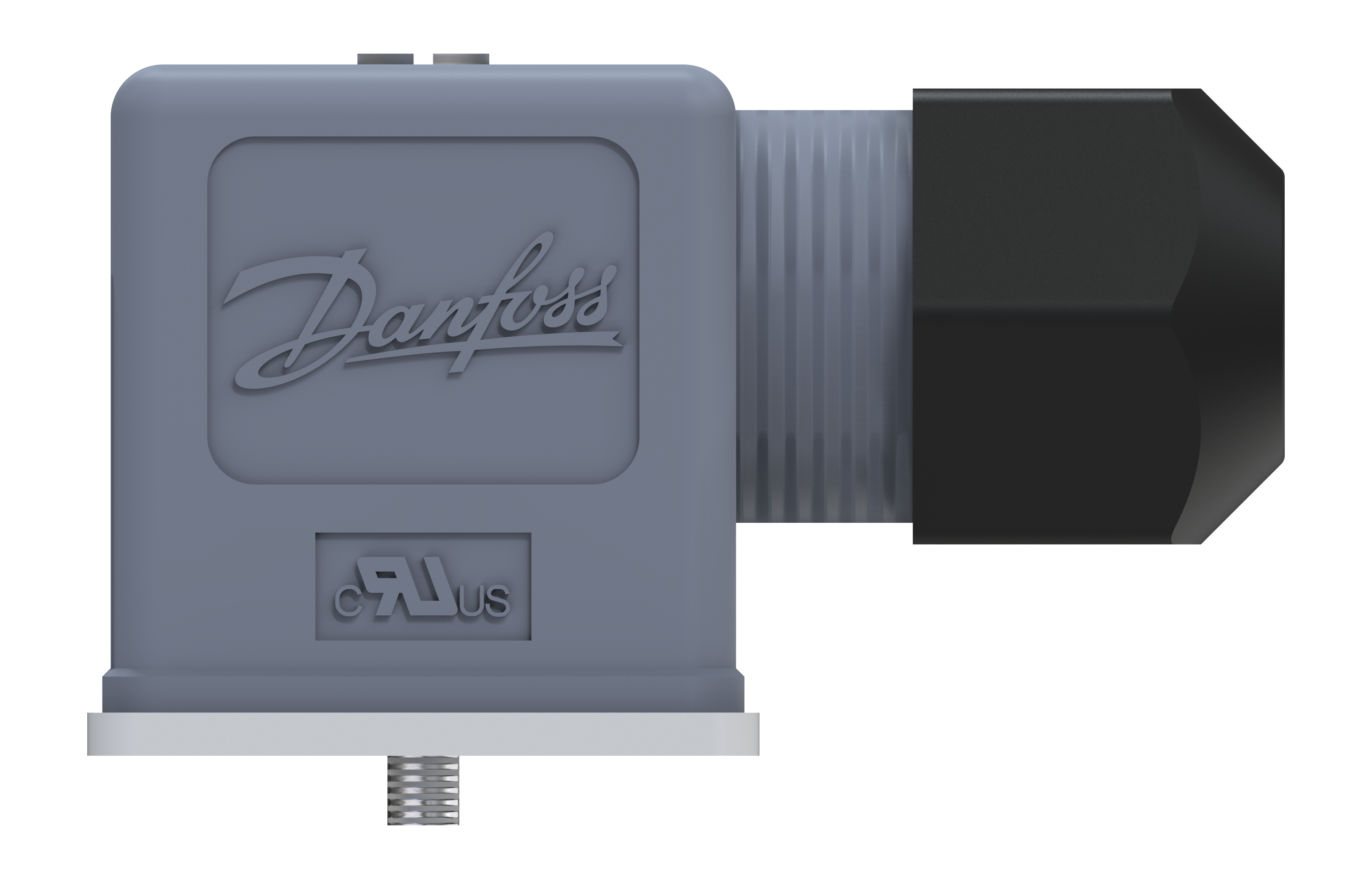

042N1256 Danfoss: Product Type: Spare part, Used for product: 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Type designation: Cable plug, Cable plug
Gross weight
26 Gram
Net weight
20.3 Gram
Volume
0.034 Liter
EAN
5715162295557
Ambient temperature range [°C] [max]
125 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
257 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,UKCA
Body type
Opaque
Cable diameter [in] [max]
0.35 in
Cable diameter [in] [min]
0.16 in
Cable diameter [mm] [max]
9 mm
Cable diameter [mm] [min]
4 mm
Cable holder material
PA6 + 20% GF
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour
Grey
Conductor size, max. [mm2]
1.5 mm²
Contact resistance max. [mOhm]
15 mOhm
Contacts
2 + PE
Contain batteries
No
Electrical connection form
Form A
Electrical connection standard
DIN EN 175301-803A
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
EU RoHS exemption clause
6(a),6(c)
Gasket material
Silicone
Gasket type
Flat
Operating current max. [A]
16 A
Packing format
Multi pack
Product group
Solenoid coil accessories
Product Name Description
Cable plug
Quantity per packing format
100 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
ca884a74-c381-4e51-9886-3ece63537f8e
SCIP dossier product name
Accessory Cable Plug IP67 EN175301-803
Supply voltage [V] AC
250 V
Supply voltage [V] DC
250 V
Terminal block material
PA66 + 25%GF
Type
Spare part
Type designation
Cable plug
UK RoHS compliance
Out of scope
Used for product
018F Coil Type B,018Z Coil Type B,042N Coil Type B
