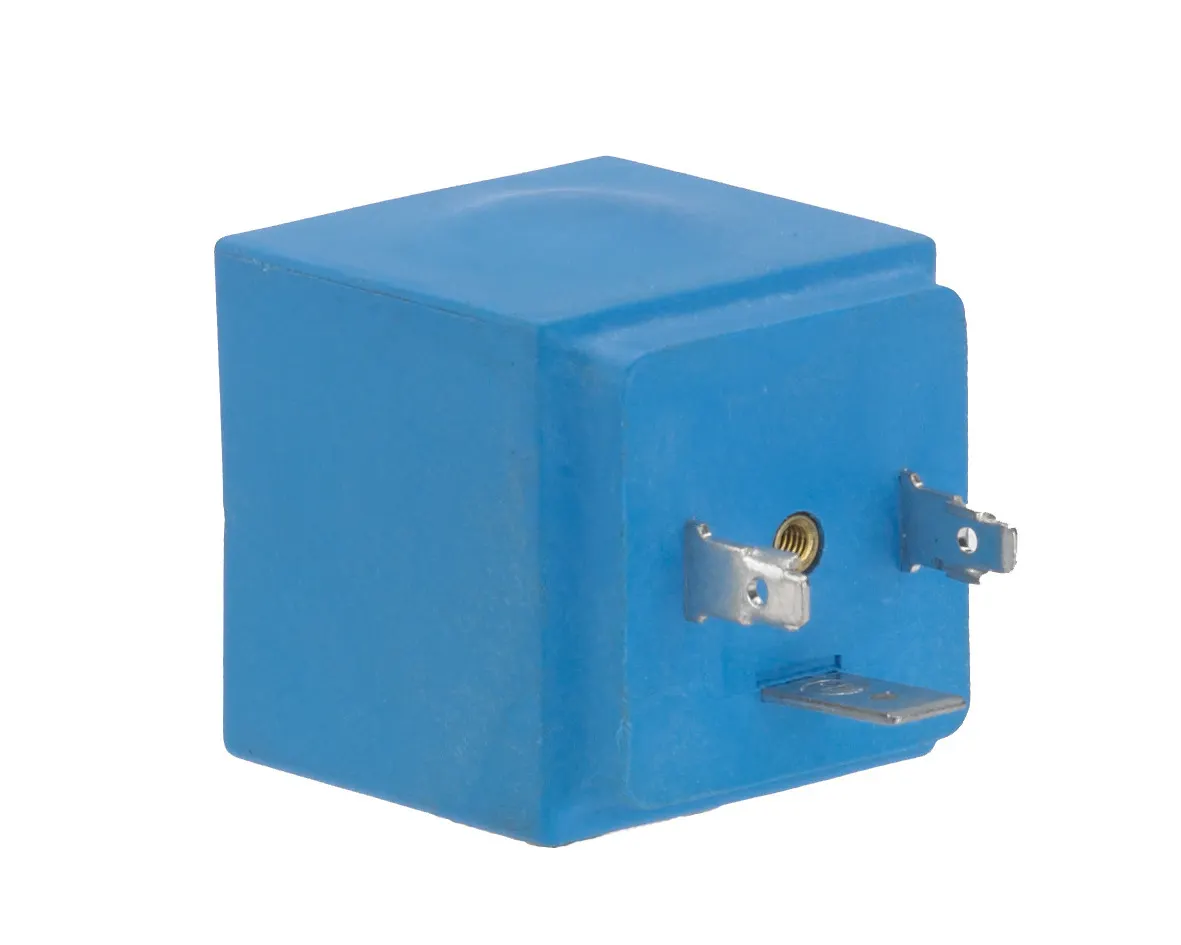

042N4203
Part Number: 042N4203
Product Information
Extended Description
042N4203 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 24, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.118 Kilogram
Net weight
0.11 Kilogram
Volume
0.093 Liter
EAN
5702428074568
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
LLC CDC TYSK,cURus
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil fastening
Clip-on
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV220W
Power consumption 50Hz [VA]
18 VA
Power consumption 60Hz [VA]
14 VA
Power consumption [W] 50Hz
9.5 W
Power consumption [W] 60Hz
7 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
576f0b3e-94ae-4820-ba3a-63004b4bb908
SCIP dossier product name
EVR 10-22 (NO)
Serviceable
No
Spare part number
042N4203
Supply voltage 50Hz Max [V]
24 V
Supply voltage 60Hz Max [V]
24 V
Supply voltage [V] AC
24 V
Type
AZ024CS
Type designation
AZ024CS
UK RoHS compliance
Out of scope
UL approval file name
MH29671
UL evaluated
Yes
