042N4230
Part Number: 042N4230
Product Information
Extended Description

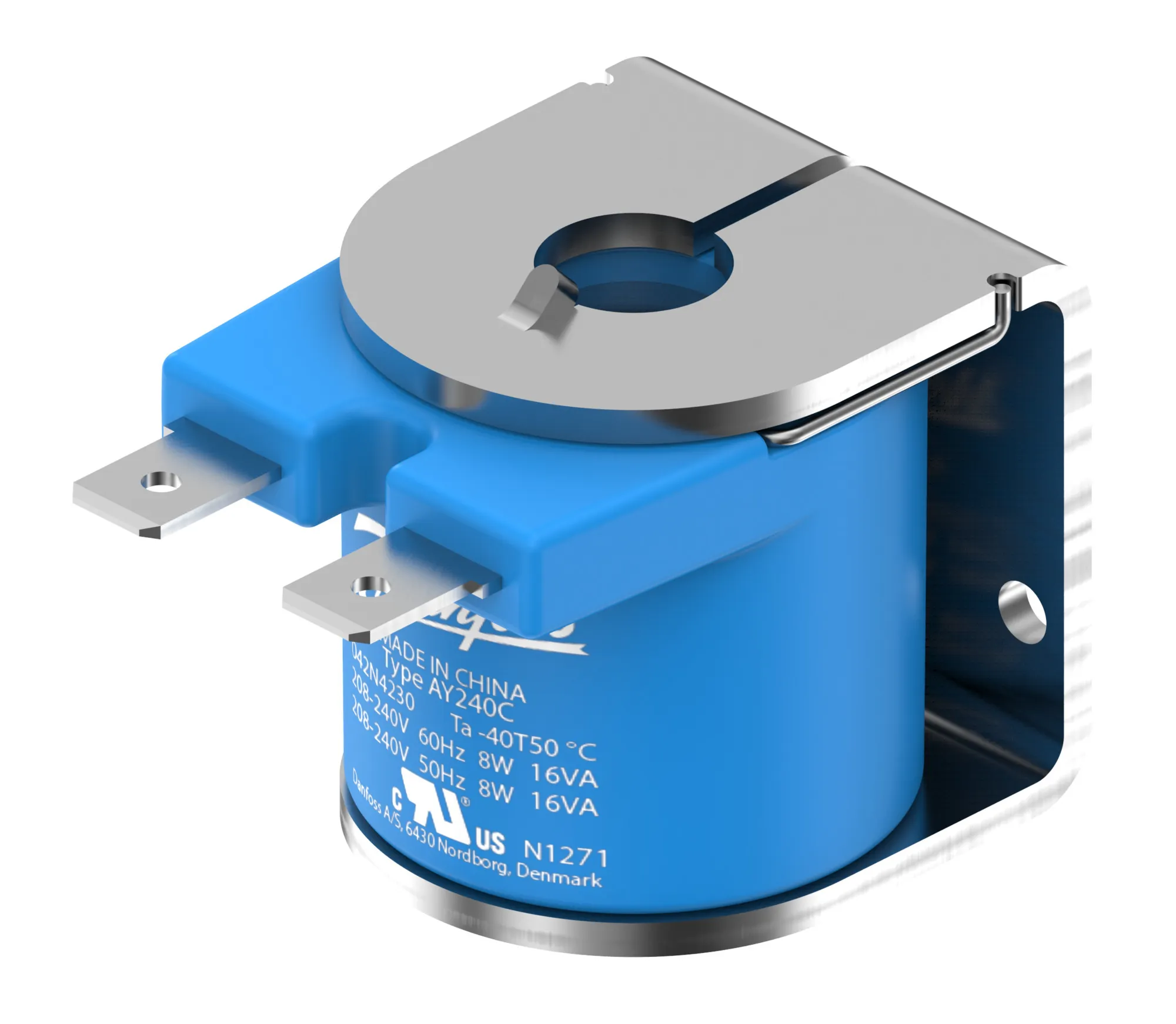

042N4230 Danfoss: Electrical connection: US Spade, Supply voltage [V] AC: 208 - 240, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.11 Kilogram
Net weight
0.099 Kilogram
Volume
0.084 Liter
EAN
5702423272433
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
LLC CDC TYSK,cURus
China RoHS compliance
Out of scope
Coil connection
US 0.25 in Spade
Coil fastening
Clip-on
Colour
Blue
Compliance
UL 429
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
US Spade
Electrical connection size
0.25 in
Electrical connector
2 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Identical product
042N8230
In scope of WEEE
Yes
Packing format
Multi pack
Power consumption 50Hz [VA]
16 VA
Power consumption 60Hz [VA]
16 VA
Power consumption [W] 50Hz
8 W
Power consumption [W] 60Hz
8 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
No
Serviceable
No
Spare part number
042N4230
Supply voltage 50Hz Max [V]
240 V
Supply voltage 50Hz Min [V]
208 V
Supply voltage 60Hz Max [V]
240 V
Supply voltage 60Hz Min [V]
208 V
Supply voltage [V] AC [max]
240 V
Supply voltage [V] AC [min]
208 V
Type
AY240C
Type designation
AY240C
UK RoHS compliance
Out of scope
UL approval file name
MH29671
UL evaluated
Yes
