042N4236
Part Number: 042N4236
Product Information
Extended Description

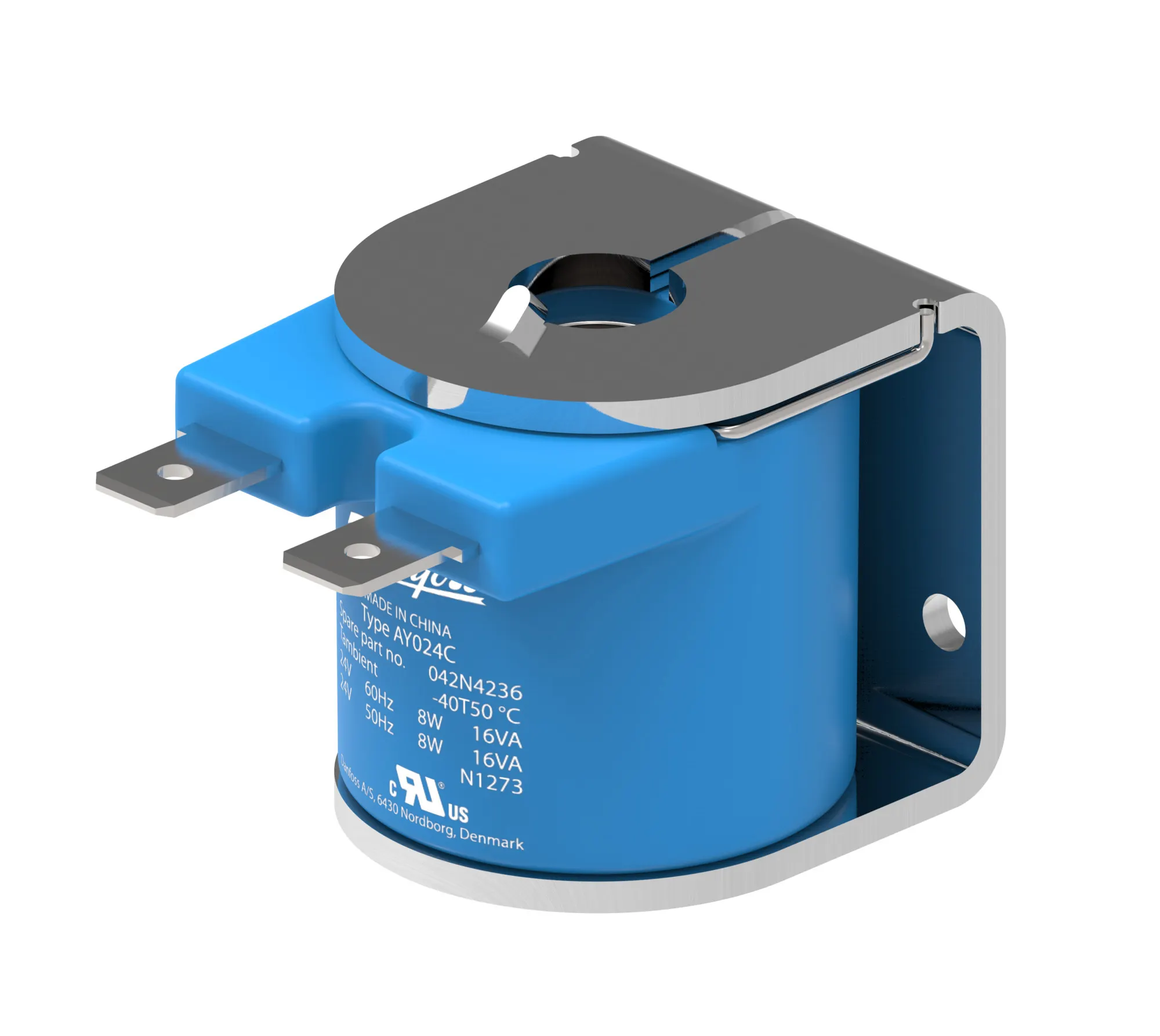

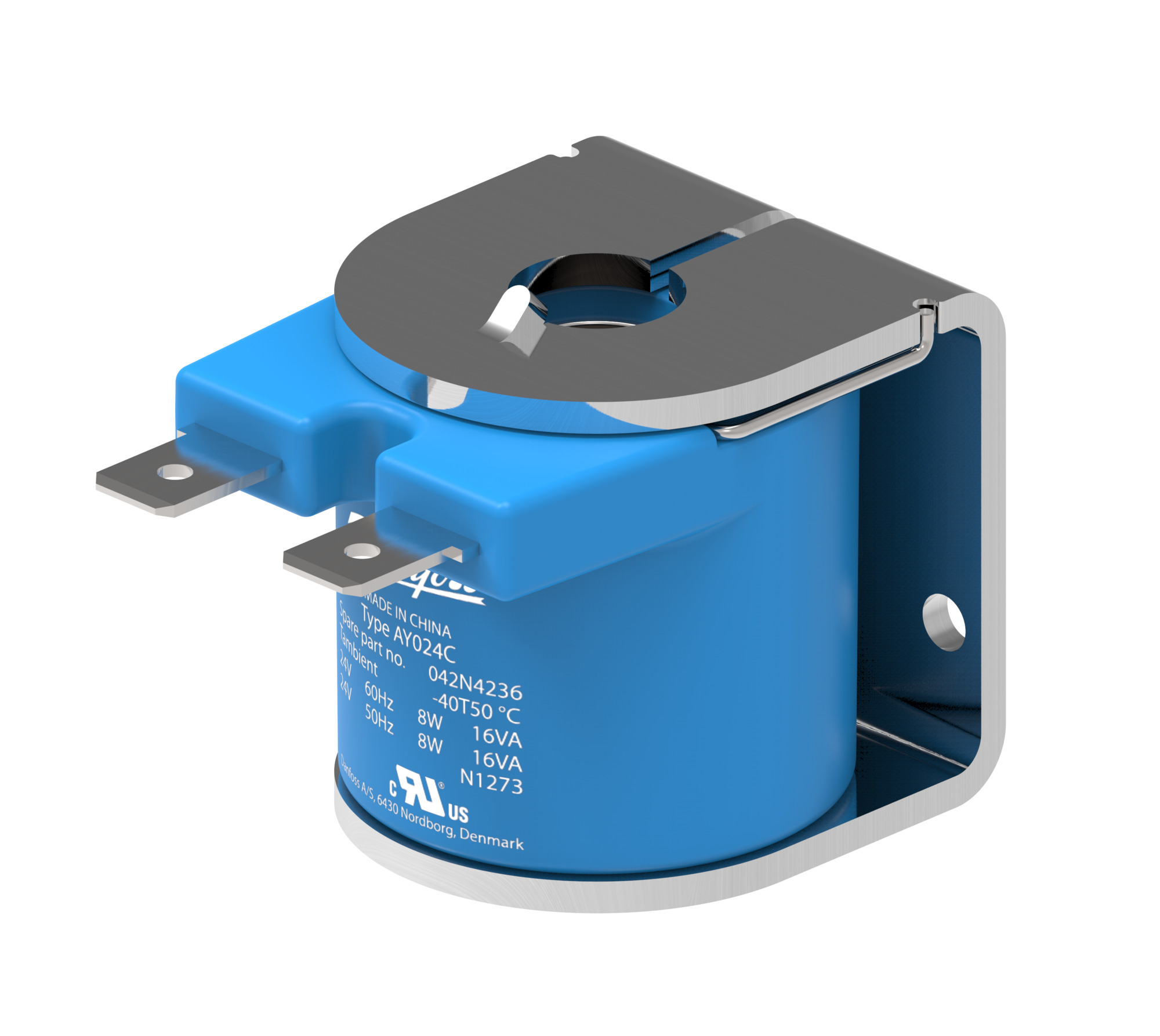

042N4236 Danfoss: Solenoid coil, Product Type: AY024C, Supply voltage [V] AC: 24, Enclosure rating IP: IP00, Coil connection: US 0.25 in Spade, Actuator size: 9 mm
Gross weight
0.105 Kilogram
Net weight
0.096 Kilogram
Volume
0.089 Liter
EAN
5702423272419
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
cURus
China RoHS compliance
Out of scope
Coil connection
US 0.25 in Spade
Colour
Blue
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
US Spade
Electrical connection size
0.25 in
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Identical product
042N8236
In scope of WEEE
Yes
Packing format
Multi pack
Power consumption [W]
8 W
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
Supply voltage [V] AC
24 V
Type
AY024C
Type designation
Coil for Solenoid valve
UK RoHS compliance
Out of scope
UL evaluated
Yes
