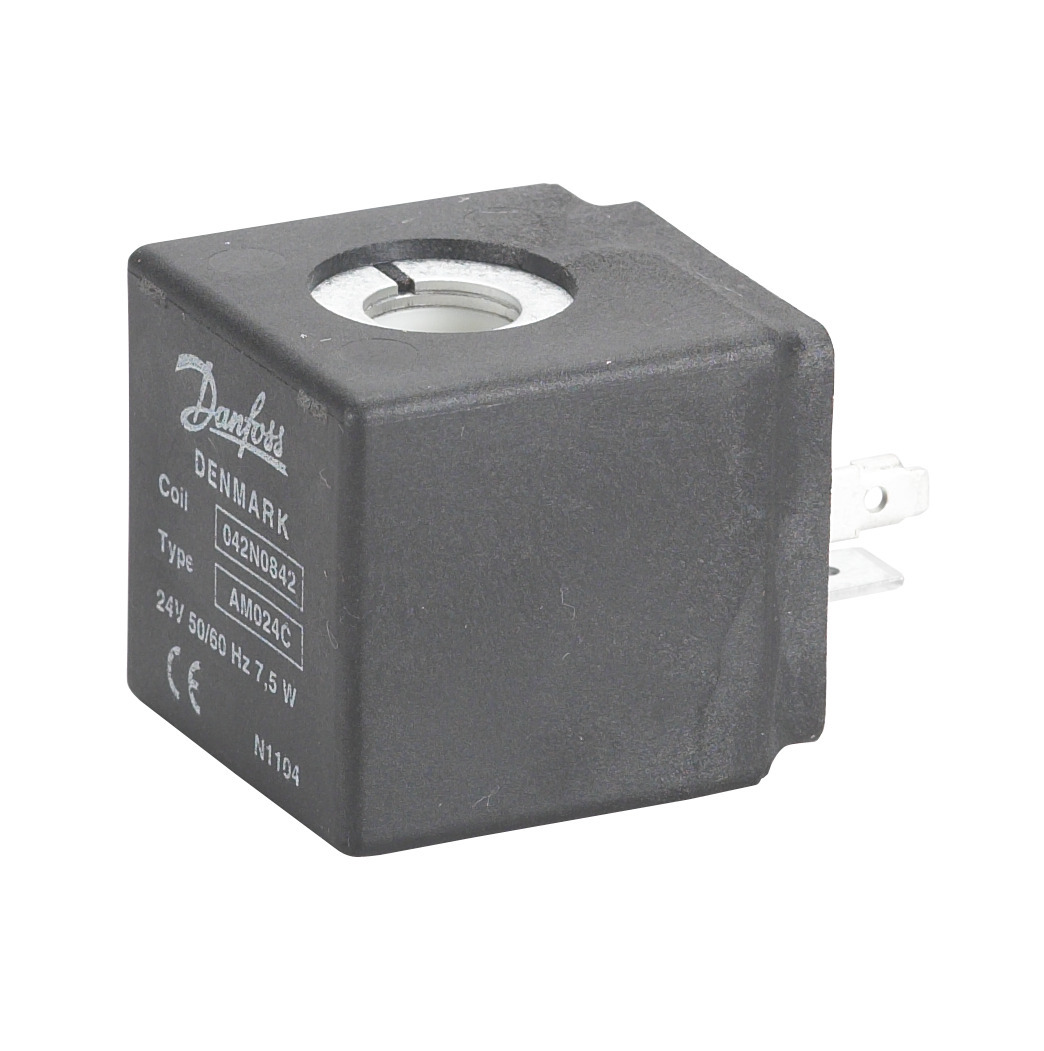

042N4292
Part Number: 042N4292
Product Information
Extended Description
042N4292 Danfoss: Electrical connection: DIN Spade, Frequency [Hz]: 60 Hz, Enclosure rating IP: IP00
Gross weight
0.114 Kilogram
Net weight
0.104 Kilogram
Volume
0.09 Liter
EAN
5702428046053
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
cURus
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Finger screw
Coil winding insulation class
Class H to IEC 85
Colour
Black
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210A,EV220A,EV310A
Power consumption 60Hz [VA]
11 VA
Power consumption [W] 60Hz
5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Serviceable
No
Supply voltage 60Hz Max [V]
120 V
Supply voltage 60Hz Min [V]
110 V
Type
AP120B
Type designation
AP120B
UK RoHS compliance
Out of scope
UL approval file name
MH29671
UL evaluated
Yes
