042N4400
Part Number: 042N4400
Product Information
Extended Description

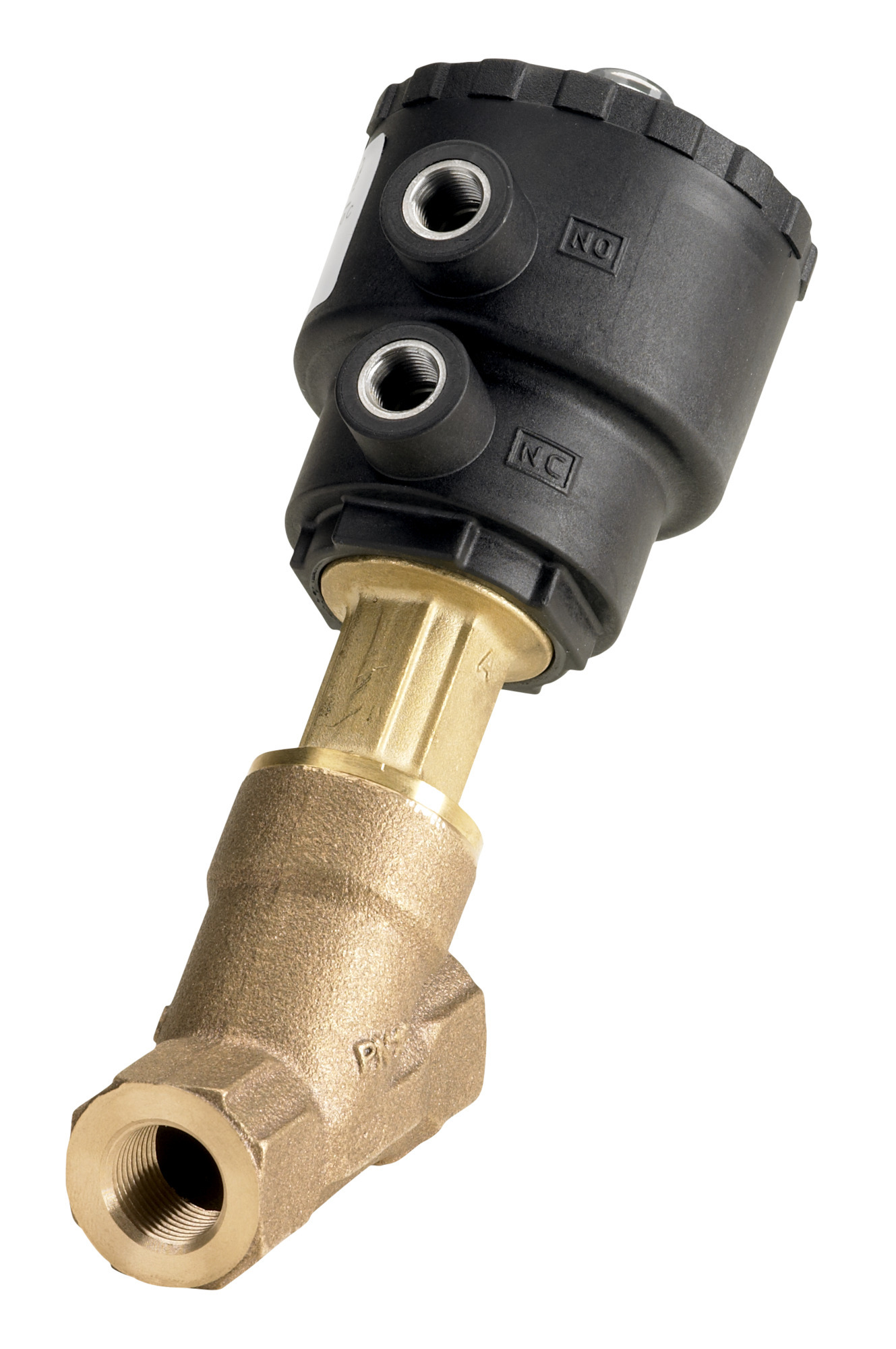

042N4400 Danfoss: Body material: Bronze
Gross weight
0.77 Kilogram
Net weight
0.67 Kilogram
Volume
2.21 Liter
EAN
5702423194179
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
140 °F
Ambient temperature range [°F] [min]
-22 °F
Body material
Bronze
China RoHS compliance
Out of scope
Closing
Against flow
Connection Internal/External
Internal
Connection size [in]
3/8
Connection type
G
Contain batteries
No
Control head diameter [mm]
40 mm
Control pressure range [bar] [max]
10 bar
Control pressure range [bar] [min]
4.2 bar
Control pressure range [psig] [max]
145 psig
Control pressure range [psig] [min]
60.9 psig
Cv value [gal/min]
5.2 gal/min
Differential pressure [bar] [max]
16 bar
Differential pressure [bar] [min]
0 bar
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Out of scope
Function
NC
In scope of WEEE
Yes
Kv value [mÂł/h]
4.5 mÂł/h
Max. test pressure [bar]
24 bar
Max. test pressure [psig]
348 psig
Max. Working Pressure [bar]
16 bar
Max. Working Pressure [psig]
232 psig
Medium temperature range [°C] [max]
180 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
356 °F
Medium temperature range [°F] [min]
-22 °F
Operation
Piston (angle)
Orifice size [mm]
15 mm
Packing format
Multi pack
Product accessories
Ext. operat. valve accessories
Product group
Externally operated valves
Product Name Description
Angle-seat ext operated valve
Quantity per packing format
8 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
b22a797e-5624-47e4-bc96-fc29cf9f576a
SCIP dossier product name
AV210 bronze
Seal Material
PTFE
Serviceable
Ext. operat. valve spare parts
Type
AV210A
UK RoHS compliance
Out of scope
