042N4557
Part Number: 042N4557
Product Information
Extended Description

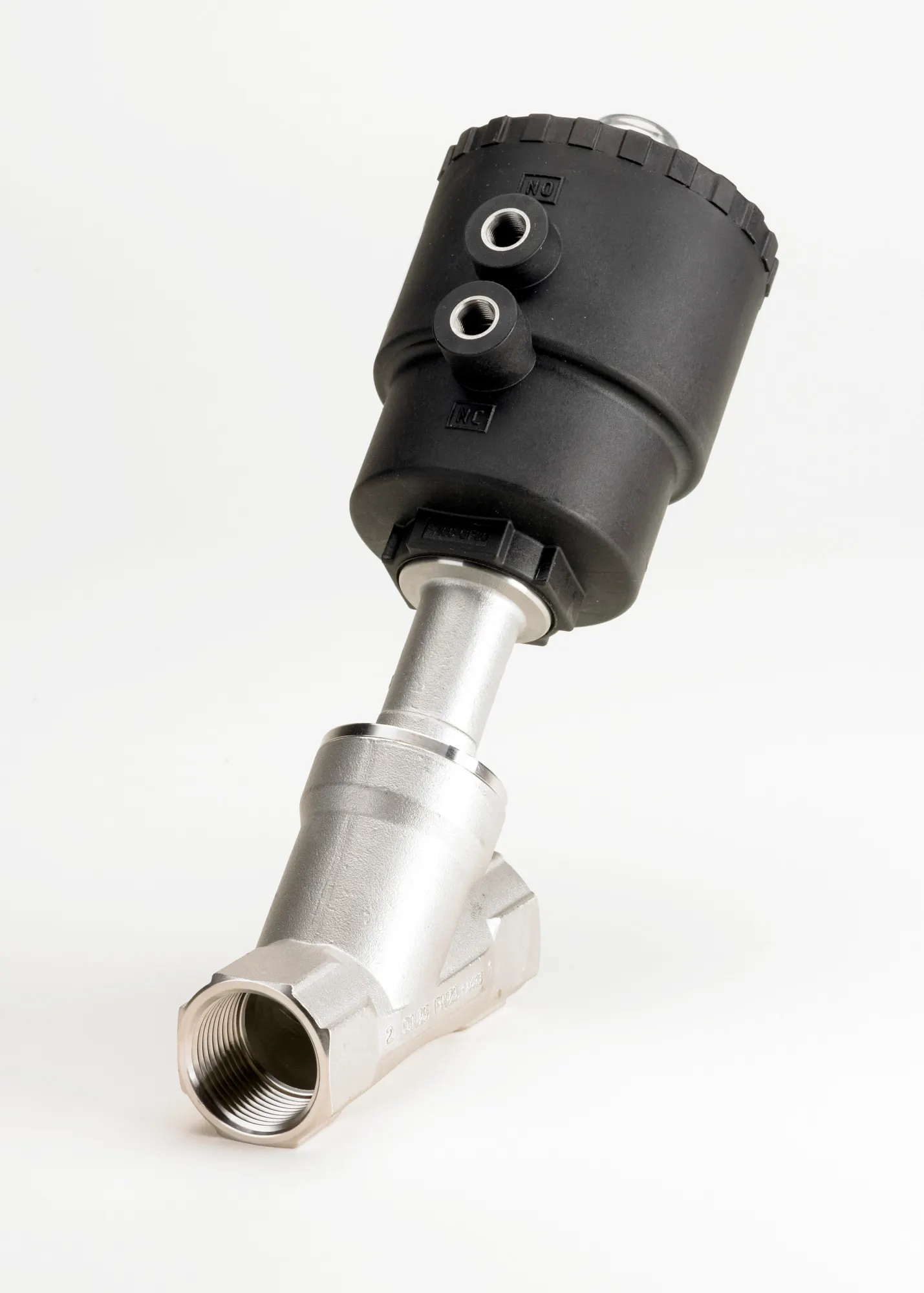

042N4557 Danfoss: Body material: Stainless steel
Gross weight
4.413 Kilogram
Net weight
3.913 Kilogram
Volume
8.379 Liter
EAN
5702423194551
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
140 °F
Ambient temperature range [°F] [min]
-22 °F
Body material
Stainless steel
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection size [in]
1 1/2
Connection type
NPT
Contain batteries
No
Control head diameter [mm]
90 mm
Control pressure range [bar] [max]
8 bar
Control pressure range [bar] [min]
4 bar
Control pressure range [psig] [max]
116 psig
Control pressure range [psig] [min]
58 psig
Cv value [gal/min]
53.1 gal/min
Differential pressure [bar] [max]
11 bar
Differential pressure [bar] [min]
0 bar
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Out of scope
Function
NC
In scope of WEEE
Yes
Kv value [mÂł/h]
46 mÂł/h
Max. test pressure [bar]
37.5 bar
Max. test pressure [psig]
544 psig
Max. Working Pressure [bar]
25 bar
Max. Working Pressure [psig]
363 psig
Medium temperature range [°C] [max]
180 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
356 °F
Medium temperature range [°F] [min]
-22 °F
Operation
Piston (angle)
Orifice size [mm]
40 mm
Packing format
Multi pack
Product accessories
Ext. operat. valve accessories
Product group
Externally operated valves
Product Name Description
Angle-seat ext operated valve
Quantity per packing format
4 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
b22a797e-5624-47e4-bc96-fc29cf9f576a
SCIP dossier product name
AV210 bronze
Seal Material
PTFE
Serviceable
Ext. operat. valve spare parts
Type
AV210D
UK RoHS compliance
Out of scope
