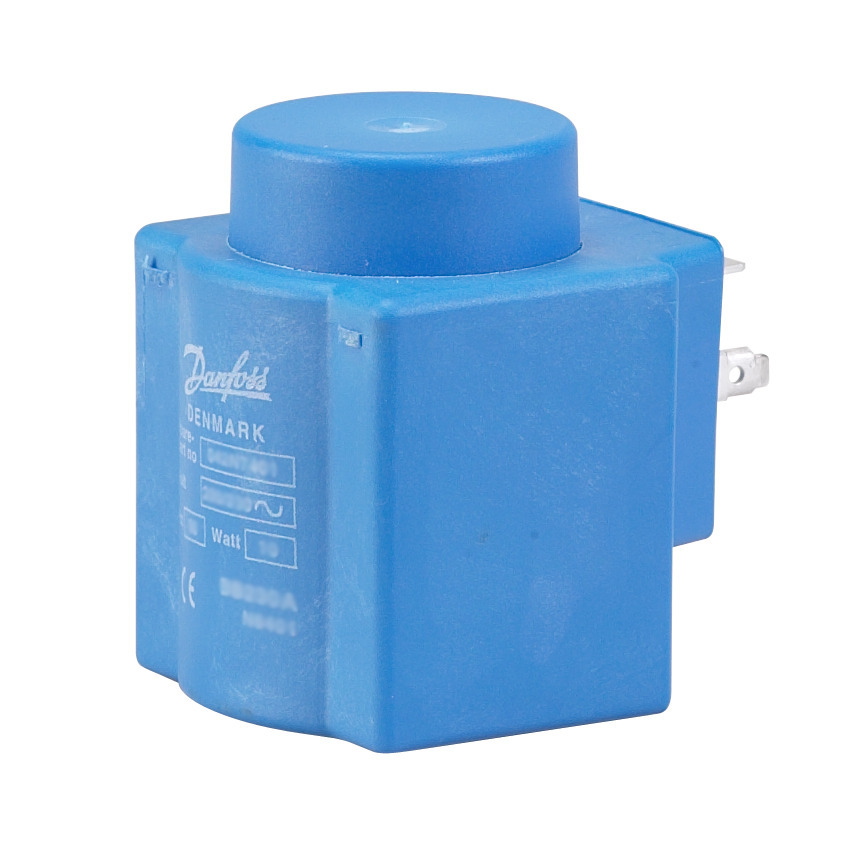

042N7430
Part Number: 042N7430
Product Information
Extended Description
042N7430 Danfoss: Electrical connection: DIN Spade, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.262 Kilogram
Net weight
0.242 Kilogram
Volume
0.201 Liter
EAN
5702423029150
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Power consumption 50Hz [VA]
28 VA
Power consumption 60Hz [VA]
22 VA
Power consumption [W]
10 W
Power consumption [W] 50Hz
15 W
Power consumption [W] 60Hz
13 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
50 pc
REACH Candidate List substances
No
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
042N7430
Supply voltage 50Hz Max [V]
110 V
Supply voltage 60Hz Max [V]
110 V
Type
BB110C
Type designation
BB110C
UK RoHS compliance
Out of scope
